Name: BALLUFF BAE000K Lighting 1 pc(s) (Ø x H) 116 mm x 20.5 mm
Brand: BALLUFF
SKU: 3416417

Highlights & Details

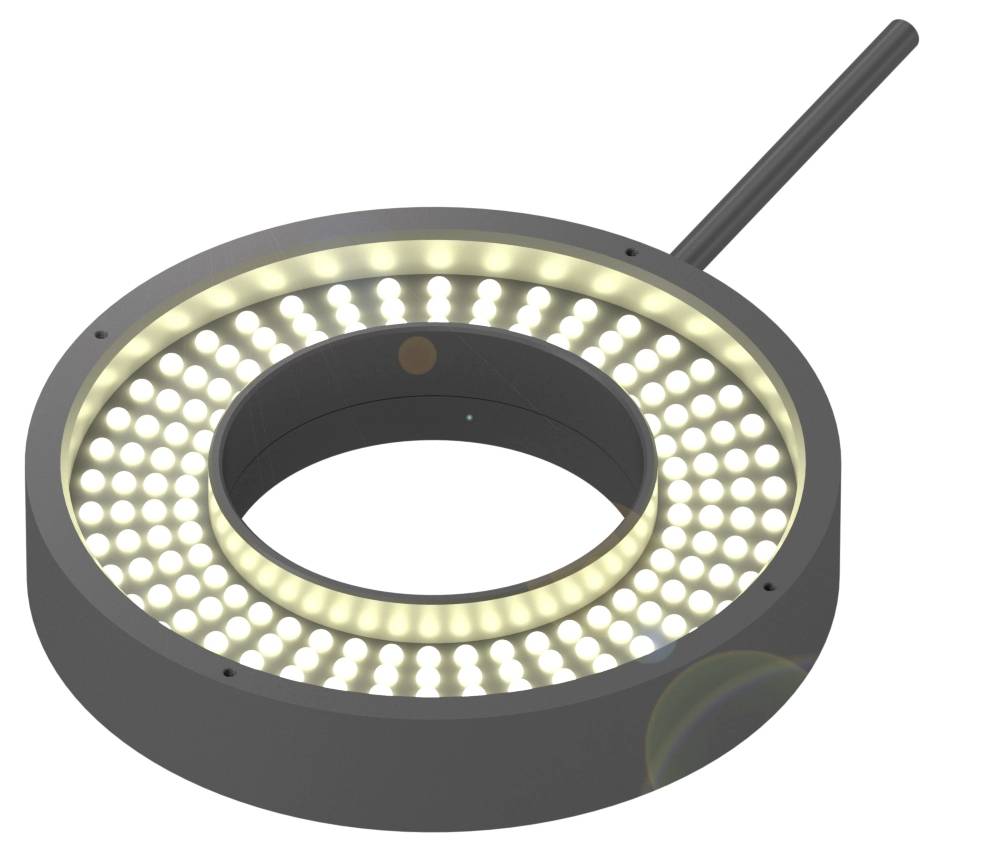

Balluff BAE000K ring light

Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Dimensions: Ø 116 x 20.5 mm
Design: Ring lighting
Rated operating voltage Ue DC 24 V
Max. Power consumption: 750 mA, 1370 mA (boost mode)

Technical specifications

Main features:Dimensions: Ø 116 x 20.5 mm
Beam angle: 30 °
Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Design: Ring lighting
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)
Boost (continuous operation with cooling)
Digital inputs: Trigger
Light surface: Ø 100 mm/Ø 60 mm
LED infrared light
Material: Anodised aluminum, black
Glass
Protection class: IP54
Max. Power consumption: 750 mA, 1370 mA (boost mode)
Ambient temperature -10...55 °C
Wavelength 875 nm
Additional features:
Design: Ring lighting
Delivery: Ring light
Application: For Vision sensors BVS
Dimensions: Ø 116 x 20.5 mm
Mounting: Screws
Rated operating voltage Ue DC 24 V
Connection: M12x1 4-pin connector, A-coded
Reverse polarity protection: Yes
MTTF (40 °C) 434 a
Connection type: Cable with connector, 0.3 m.
Cable length 0.3 m
Housing material: Aluminium, anodized, black|glass
Protection class: IP54
Ambient temperature -10...55 °C
Number of conductors: 4
Conductor cross-section: 0.34 mm²
Surface protection: Anodised, black
Adjuster: No
LED infrared light
Wavelength 875 nm
LED group according to IEC 62471: Risk group 1
Operating mode: Normal (continuous operation)|Boost (continuous operation with cooling)
Input function: Normal/Boost|Emitter on/off mode
Max. Power consumption: 750 mA, 1370 mA (boost mode)
Digital inputs Ambient conditions: Trigger
Beam angle: 30 °
Light surface: Ø 100 mm/Ø 60 mm

Product type: Lighting

Connection: Plug

Type: BAE000K

Content: 1 pc(s)

Mounting type: Screw fastening

Width: 20.5 mm

Height: 20.5 mm

Dim: (Ø x H) 116 mm x 20.5 mm

Material: Aluminium (anodized)
Glass

: IP54

Cable length: 0.3 m

(Ø): 116 mm

Wavelength: 875 nm

Connector: Plug

Operating voltage: 24 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416417 BALLUFF BAE000K Lighting 1 pc(s) (Ø x H) 116 mm x 20.5 mm

User & Safety Instructions

User & Safety Instructions 3416417 BALLUFF BAE000K Lighting 1 pc(s) (Ø x H) 116 mm x 20.5 mm

Description

The additional incident light with luminous LEDs provides uniform illumination. A diffuser attachment in applications with reflective surfaces to prevent disturbing reflections is also available. You can choose from varieties with red light, white light and infrared. Connection=cable with connector M12x1 connector, 4-pin, 0.30 m, version=ring lighting, Dimensions = Ø 116 x 20.5 mm, rated operating voltage Ue DC = 24 V, current consumption max.=750 mA, 1370 mA (boost mode), operating mode = normal boost, material = aluminum anodized, black glass, light surface=Ø 100 mm/Ø 60 mm, light type=LED infrared, wavelength=875 nm, angle of radiation=30 °, ambient temperature=-10...55 °C, Approval/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.

Description

The additional incident light with luminous LEDs provides uniform illumination. A diffuser attachment in applications with reflective surfaces to prevent disturbing reflections is also available. You can choose from varieties with red light, white light and infrared. Connection=cable with connector M12x1 connector, 4-pin, 0.30 m, version=ring lighting, Dimensions = Ø 116 x 20.5 mm, rated operating voltage Ue DC = 24 V, current consumption max.=750 mA, 1370 mA (boost mode), operating mode = normal boost, material = aluminum anodized, black glass, light surface=Ø 100 mm/Ø 60 mm, light type=LED infrared, wavelength=875 nm, angle of radiation=30 °, ambient temperature=-10...55 °C, Approval/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.
