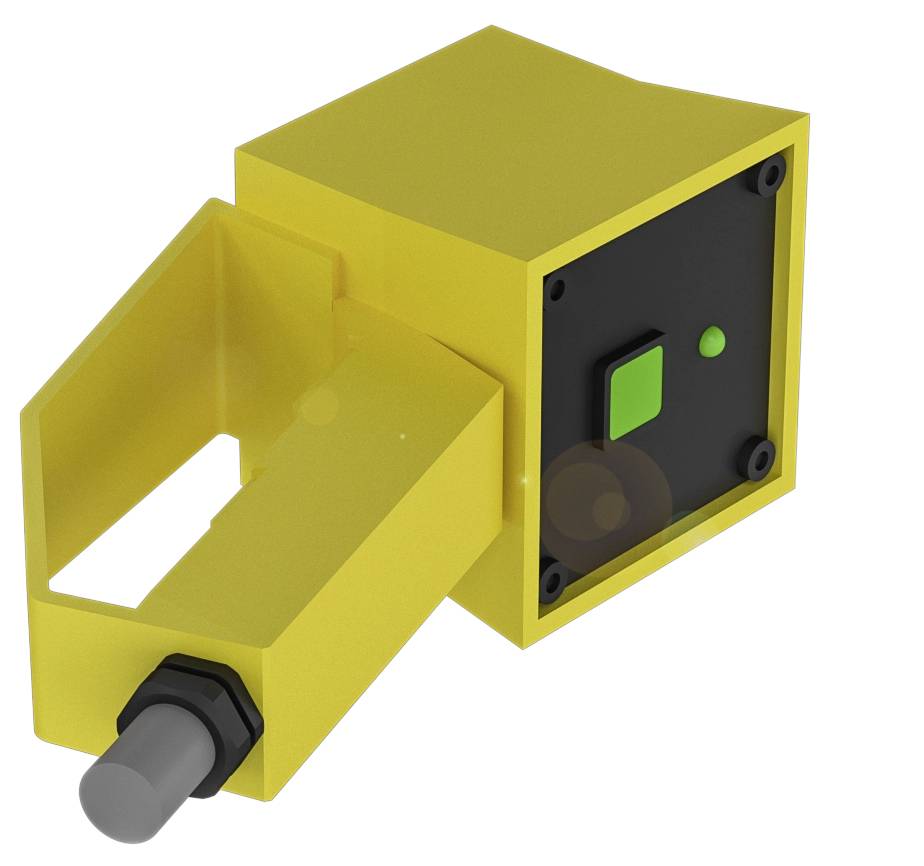

Image similar
BALLUFF BAE004C Reading device BIS C-720-01-03 1 pc(s)
Product type
Reading device
Type
BIS C-720-01-03
Connector
Socket
Cable length
3 m
IP rating
IP40
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BAE004C Mobile LF Write/Reader (70/455 kHz)
- Dimensions 90 x 85 x 200 mm
- Product group: LF (70/455 kHz)
- Product Name: Write/read gun
- Use: For all C-85x handhelds with Ø6.3 mm jack plug
- Storage temperature: -20...70 °C
Technical specifications
- Main features:Dimension 90 x 85 x 200 mm
- Storage temperature: -20...70 °C
- Product Name: Write/read gun
- Product group: LF (70/455 kHz)
- Protection class: IP40
- Ambient temperature 0...50 °C
- Use: For all C-85x handhelds with Ø6.3 mm jack plug
- Additional features:
- Functional principle: Reading gun
- Use: For all C-85x handhelds with|jack plug Ø6.3 mm
- Dimensions 90 x 85 x 200 mm
- Status indicator: Green LED, 24 VDC
- Connection: Socket, 4-pin
- Connection type 3.00 m, PU
- Cable diameter D 7.30 mm
- Cable length 3 m
- PA casing material
- Jacket material: PU, with PU spiral cable
- Protection class: IP40
- Ambient temperature 0...50 °C
- Connection slots: Ø 6.3 mm jack socket
- Cable temperature, fixed installation: 5...50 °C
- Application weight 900.00 g
- EN 55011: Gr. 1, class A
- Storage temperature: -20...70 °C
- Acoustic signal transmitter: Buzzer, 24V DC
- Product type
Reading device
- Type
BIS C-720-01-03
- Connector
Socket
- Cable length
3 m
IP40
- Content
1 pc(s)
- Length
90 mm
- Width
85 mm
- Height
200 mm
- Enclosure material
PA
- Material
PU
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418865 BALLUFF BAE004C Reading device BIS C-720-01-03 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418865 BALLUFF BAE004C Reading device BIS C-720-01-03 1 pc(s)
Description
Our LF read/write devices are perfectly suitable for mobile reading and writing of UP TO C data carriers. They are used for the manual quality inspection or for the documentation of maintenance procedures.Data transmission is via WLAN, Bluetooth or cabled USB connection. The portable read/write devices can be extended with 1D or 2D bar code readers. They deliver reliable results even under poor light conditions and harsh environments. Product group = LF (70/455 kHz), Product name = write/read gun, dimension = 90 x 85 x 200 mm, use = for all hand-held devices C-85x with jack plug Ø6.3 mm, storage temperature = -20...70 °C, ambient temperature = 0...50 °C, protection class = IP40, approval/conformity = CE, UKCA, WEEE
