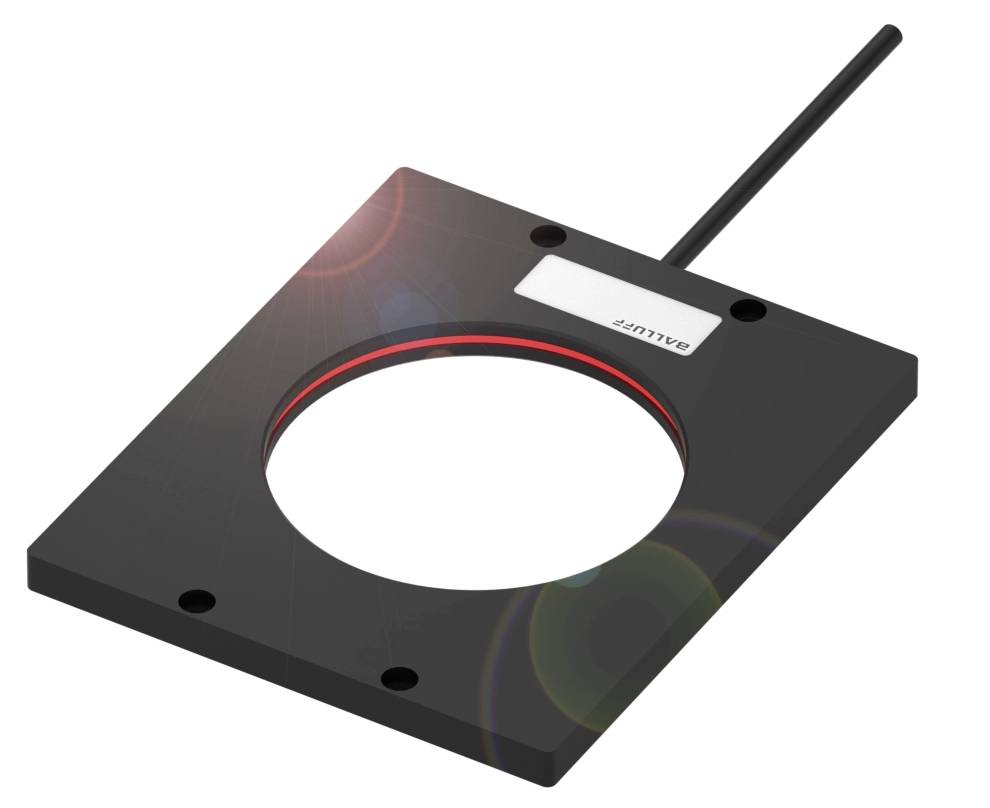

Name: BALLUFF BAE00AM Lighting 1 pc(s) (L x W x H) 155 x 130 x 9.5 mm
Brand: BALLUFF
SKU: 3416377

Highlights & Details

Balluff BAE00AM dark field lighting

Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Dimensions 130 x 9.5 x 155 mm
Design: Dark field lighting
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)

Technical specifications

Main features:Dimension 130 x 9.5 x 155 mm
Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Design: Dark field lighting
Illumination (0.1 m): 2250 lux
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)
Light surface: Ø 90 mm
LED red light
Material: Anodised aluminum, black
PMMA
Protection class: IP40
Power consumption max. 416 mA
Ambient temperature -10...55 °C
Wavelength 617 nm
Additional features:
Design: Dark field lighting
Supply: Dark field lighting
Application: For Vision sensors BVS
Dimensions 130 x 9.5 x 155 mm
Mounting: Screws
Rated operating voltage Ue DC 24 V
Connection: M12x1 4-pin connector, A-coded
Reverse polarity protection: Yes
Connection type: Cable with connector, 0.3 m.
Cable length 0.3 m
Housing material: Aluminium, anodized, black|PMMA
Protection class: IP40
Ambient temperature -10...55 °C
Number of conductors: 4
Conductor cross-section: 0.34 mm²
Adjuster: No
LED red light
Wavelength 617 nm
LED group according to IEC 62471: Free group
Operating mode: Normal (continuous mode)
Power consumption max. 416 mA
Digital inputs: Trigger
Surface protection Mechanical characteristics: Anodised, black
Light surface: Ø 90 mm
Illumination (0.1 m): 2250 lux
LED LIGHT – DO NOT LOOK INTO THE BEAM!
Note: With IR radiation and: In Boost mode,
Suitable shields: Use eye protection.

Product type: Lighting

Connection: Plug

Type: BAE00AM

Content: 1 pc(s)

Mounting type: Screw fastening

Length: 155 mm

Width: 130 mm

Height: 9.5 mm

Dim: (L x W x H) 155 x 130 x 9.5 mm

Material: Aluminium (anodized)
PMMA

: IP40

Cable length: 0.3 m

Wavelength: 617 nm

Connector: Plug

Operating voltage: 24 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416377 BALLUFF BAE00AM Lighting 1 pc(s) (L x W x H) 155 x 130 x 9.5 mm

User & Safety Instructions

User & Safety Instructions 3416377 BALLUFF BAE00AM Lighting 1 pc(s) (L x W x H) 155 x 130 x 9.5 mm

Description

Our dark field lighting is used to control scratches, depressions and impurities in surfaces. The size of the light field has a diameter of 90 mm and ensures homogeneous illumination. The red light illuminates reliably, regardless of the material or surface. You benefit from an easy installation. Connection=cable with connector M12x1 connector, 4-pin, 0.30 m, version=dark field lighting, Dimensions=130 x 9.5 x 155 mm, rated operating voltage Ue DC=24 V, current consumption max.=416 mA, operating mode=normal, material=aluminum anodized, black PMMA, Light surface=Ø 90 mm, light type=LED red light, wavelength=617 nm, light intensity (0.1 m)=2250 Lux, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP40
