BALLUFF BAE00AN Lighting 1 pc(s) (Ø x H) 116 mm x 20.5 mm
Product type
Lighting
Connection
Plug
Mounting type
Screw fastening
Type
BAE00AN
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

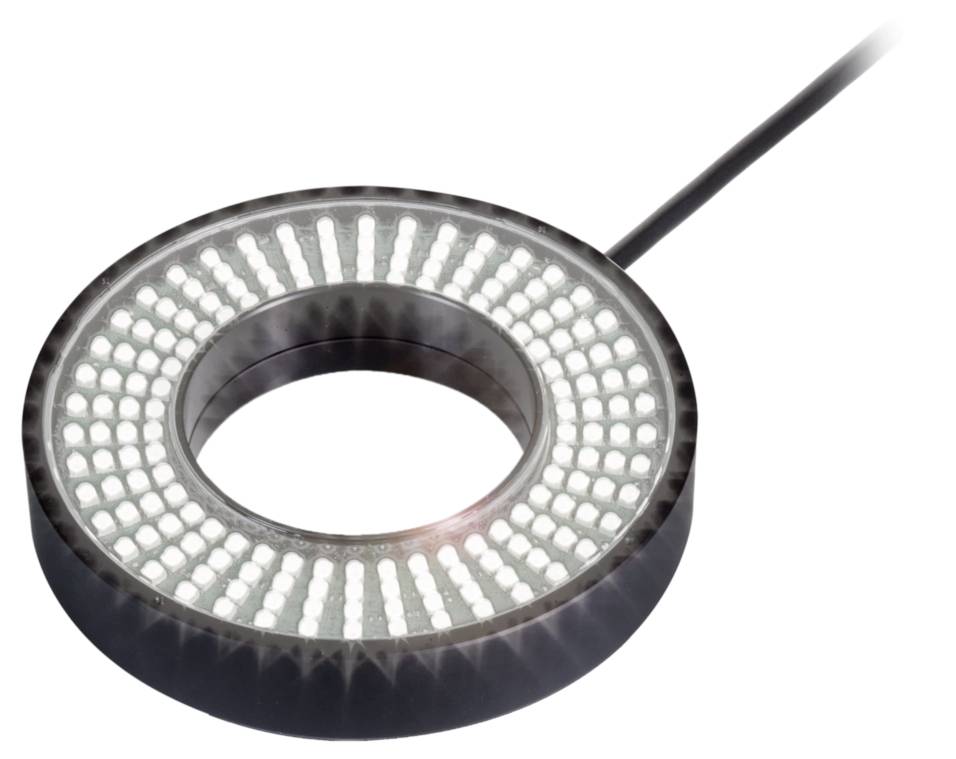

Balluff BAE00AN ring lighting
- Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
- Dimensions: Ø 116 x 20.5 mm
- Design: Ring lighting
- Rated operating voltage Ue DC 24 V
- Max. Power consumption: 410 mA, 830 mA (boost mode)
Technical specifications
- Main features:Dimensions: Ø 116 x 20.5 mm
- Beam angle: 30 °
- Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
- Design: Ring lighting
- Illumination (0.1 m): 8500 lux
- 16100 Lux (boost mode)
- Rated operating voltage Ue DC 24 V
- Operating mode: Normal (continuous mode)
- Boost (continuous operation with cooling)
- Digital inputs: Trigger
- Colour temperature: 5600 K
- Light surface: Ø 100 mm/Ø 60 mm
- LED white light
- Material: Anodised aluminum, black
- Glass
- Protection class: IP54
- Max. Power consumption: 410 mA, 830 mA (boost mode)
- Ambient temperature -10...55 °C
- Additional features:
- Design: Ring lighting
- Delivery: Ring light
- Application: For Vision sensors BVS
- Dimensions: Ø 116 x 20.5 mm
- Mounting: Screws
- Rated operating voltage Ue DC 24 V
- Connection: M12x1 4-pin connector, A-coded
- Reverse polarity protection: Yes
- MTTF (40 °C) 387 a
- Connection type: Cable with connector, 0.3 m.
- Cable length 0.3 m
- Housing material: Aluminium, anodized, black|glass
- Protection class: IP54
- Ambient temperature -10...55 °C
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Surface protection: Anodised, black
- Adjuster: No
- LED white light
- LED group according to IEC 62471: Free group
- Operating mode: Normal (continuous operation)|Boost (continuous operation with cooling)
- Input function: Normal/Boost|Emitter on/off mode
- Max. Power consumption: 410 mA, 830 mA (boost mode)
- Digital inputs: Trigger
- Beam angle: 30 °
- Light surface: Ø 100 mm/Ø 60 mm
- Illumination (0.1 m): 8500 lux|16100 lux (boost mode)
- Colour temperature: 5600 K
- Product type
Lighting
- Connection
Plug
- Type
BAE00AN
- Content
1 pc(s)
- Mounting type
Screw fastening
- Width
20.5 mm
- Height
20.5 mm
- Dim
(Ø x H) 116 mm x 20.5 mm
- Material
Aluminium (anodized)
Glass
IP54
- Cable length
0.3 m
- (Ø)
116 mm
- Connector
Plug
- Operating voltage
24 V DC
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416449 BALLUFF BAE00AN Lighting 1 pc(s) (Ø x H) 116 mm x 20.5 mm
User & Safety Instructions
User & Safety Instructions 3416449 BALLUFF BAE00AN Lighting 1 pc(s) (Ø x H) 116 mm x 20.5 mm
Description
The additional incident light with luminous LEDs provides uniform illumination. A diffuser attachment in applications with reflective surfaces to prevent disturbing reflections is also available. You can choose from varieties with red light, white light and infrared. Connection=cable with connector M12x1 connector, 4-pin, 0.30 m, version=ring lighting, Dimensions = Ø 116 x 20.5 mm, rated operating voltage Ue DC = 24 V, current consumption max.=410 mA, 830 mA (boost mode), operating mode = normal boost, material = aluminum anodized, black glass, light surface=Ø 100 mm/Ø 60 mm, light type=LED white light, illumination intensity (0.1 m)=8500 Lux 16100 Lux (boost mode), radiation angle=30 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54
