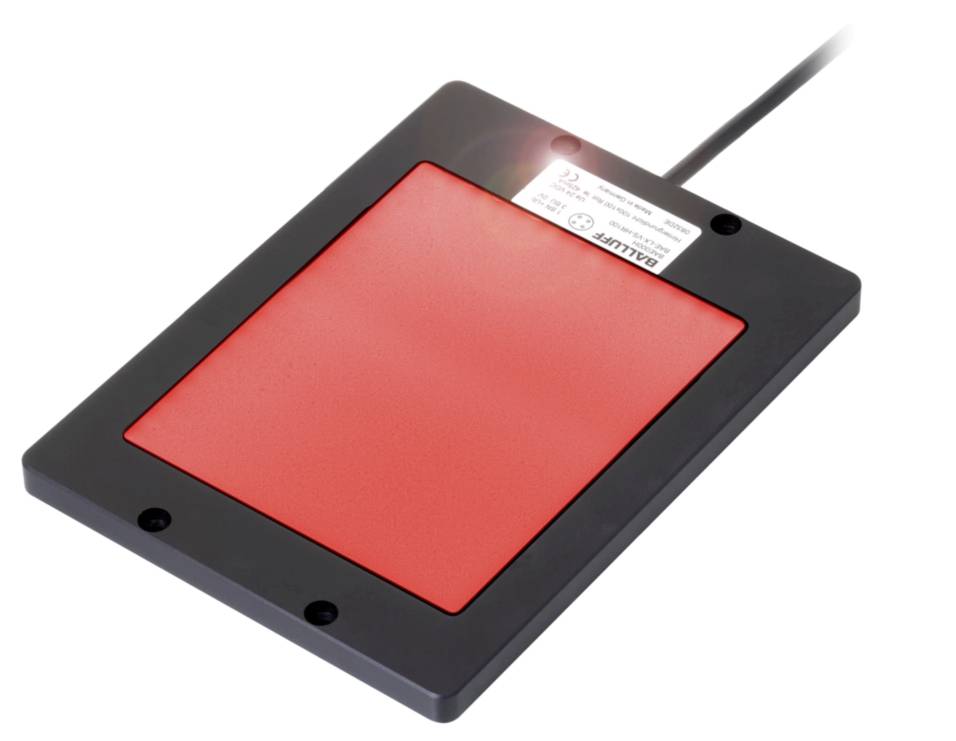

Name: BALLUFF BAE00C5 Lighting 1 pc(s) (L x W x H) 205 x 130 x 9.5 mm
Brand: BALLUFF
SKU: 3416296

Highlights & Details

Balluff BAE00C5 Background lighting

Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Dimensions 130 x 9.5 x 205 mm
Design: Background illumination
Rated operating voltage Ue DC 24 V
Power consumption maximum 500 mA

Technical specifications

Main features:Dimension 130 x 9.5 x 205 mm
Angle of radiation 80 ° x 60 °.
Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Design: Background illumination
Illumination (0.1 m): 4800 lux
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)
Digital inputs: Trigger
Light surface 150 x 100 mm
LED red light
Material: Anodised aluminum, black
Glass
PMMA
Protection class: IP54
Power consumption maximum 500 mA
Ambient temperature -10...55 °C
Wavelength 617 nm
Additional features:
Design: Background illumination
Supply: Background lighting
Application: For Vision sensors BVS
Dimensions 130 x 9.5 x 205 mm
Mounting: Screws
Rated operating voltage Ue DC 24 V
Connection: M12x1 4-pin connector, A-coded
Reverse polarity protection: Yes
MTTF (40 °C) 452 a
Connection type: Cable with connector, 0.3 m.
Cable length 0.3 m
Housing material: Aluminium, anodized, black|glass, PMMA
Number of conductors: 4
Conductor cross-section: 0.34 mm²
Surface protection: Anodised, black
Adjuster: No
LED red light
Wavelength 617 nm
LED group according to IEC 62471: Free group
Operating mode: Normal (continuous mode)
Power consumption maximum 500 mA
Angle of radiation 80 ° x 60 °.
Light surface 150 x 100 mm
Illumination (0.1 m): 4800 lux

Product type: Lighting

Connection: Plug

Type: BAE00C5

Content: 1 pc(s)

Mounting type: Screw fastening

Length: 205 mm

Width: 130 mm

Height: 9.5 mm

Dim: (L x W x H) 205 x 130 x 9.5 mm

Material: Aluminium (anodized)
Glass

: IP54

Cable length: 0.3 m

Wavelength: 617 nm

Connector: Plug

Operating voltage: 24 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416296 BALLUFF BAE00C5 Lighting 1 pc(s) (L x W x H) 205 x 130 x 9.5 mm

User & Safety Instructions

User & Safety Instructions 3416296 BALLUFF BAE00C5 Lighting 1 pc(s) (L x W x H) 205 x 130 x 9.5 mm

Description

With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions = 130 x 9.5 x 205 mm, rated operating voltage Ue DC = 24 V, current consumption max. = 500 mA, operating mode = normal, digital inputs = trigger, material = aluminum anodized, black glass PMMA, illuminated area=150 x 100 mm, light type=LED red light, wavelength=617 nm, illumination strength (0.1 m)=4800 Lux, radiation angle=80 ° x 60 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.
