Name: BALLUFF BAE00JC Lighting 1 pc(s) (L x W x H) 255 x 180 x 9.5 mm
Brand: BALLUFF
SKU: 3416308

Highlights & Details

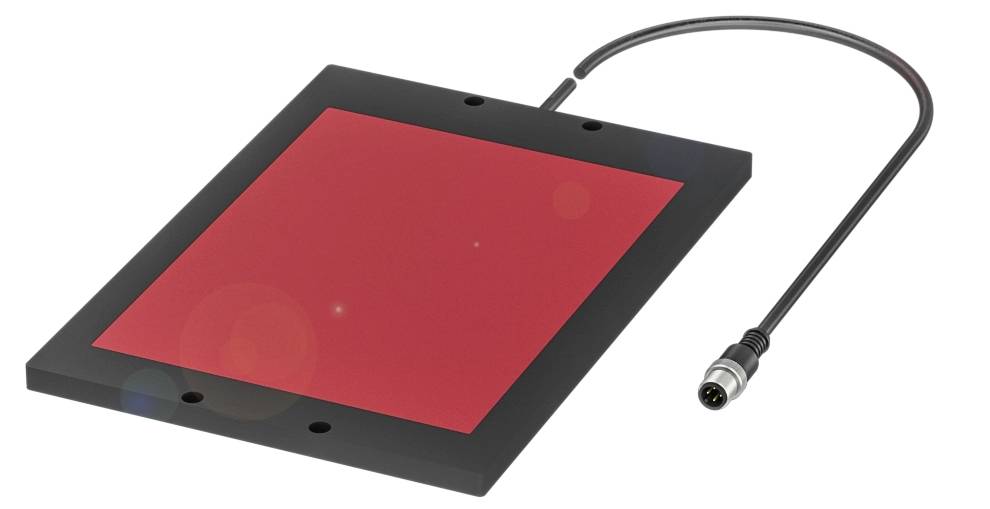

Balluff BAE00JC background lighting

Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Dimensions 180 x 9.5 x 255 mm
Design: Background illumination
Rated operating voltage Ue DC 24 V
Power consumption max. 625 mA

Technical specifications

Main features:Dimension 180 x 9.5 x 255 mm
Angle of radiation 100 ° x 80 °.
Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Design: Background illumination
Illumination (0.1 m): 5100 lux
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)
Digital inputs: Trigger
Light surface 200 x 150 mm
LED red light
Material: Anodised aluminum, black
Glass
PMMA
Protection class: IP54
Power consumption max. 625 mA
Ambient temperature -10...55 °C
Wavelength 617 nm
Additional features:
Design: Background illumination
Supply: Background lighting
Application: For Vision sensors BVS
Dimensions 180 x 9.5 x 255 mm
Mounting: Screws
Rated operating voltage Ue DC 24 V
Connection: M12x1 4-pin connector, A-coded
Reverse polarity protection: Yes
MTTF (40 °C) 421 a
Connection type: Cable with connector, 0.3 m.
Cable length 0.3 m
Housing material: Aluminium, anodized, black|glass, PMMA
Number of conductors: 4
Conductor cross-section: 0.34 mm²
Surface protection: Anodised, black
Adjuster: No
LED red light
Wavelength 617 nm
LED group according to IEC 62471: Free group
Operating mode: Normal (continuous mode)
Power consumption max. 625 mA
Angle of radiation 100 ° x 80 °.
Light surface 200 x 150 mm
Illumination (0.1 m): 5100 lux

Product type: Lighting

Connection: Plug

Type: BAE00JC

Content: 1 pc(s)

Mounting type: Screw fastening

Length: 255 mm

Width: 180 mm

Height: 9.5 mm

Dim: (L x W x H) 255 x 180 x 9.5 mm

Material: Aluminium (anodized)
Glass

: IP54

Cable length: 0.3 m

Wavelength: 617 nm

Connector: Plug

Operating voltage: 24 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416308 BALLUFF BAE00JC Lighting 1 pc(s) (L x W x H) 255 x 180 x 9.5 mm

User & Safety Instructions

User & Safety Instructions 3416308 BALLUFF BAE00JC Lighting 1 pc(s) (L x W x H) 255 x 180 x 9.5 mm

Description

With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions = 180 x 9.5 x 255 mm, rated operating voltage Ue DC = 24 V, current consumption max. = 625 mA, operating mode = normal, digital inputs = trigger, material = aluminum anodized, black glass PMMA, illuminated area=200 x 150 mm, light type=LED red light, wavelength=617 nm, illumination strength (0.1 m)=5100 Lux, radiation angle=100 ° x 80 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54
