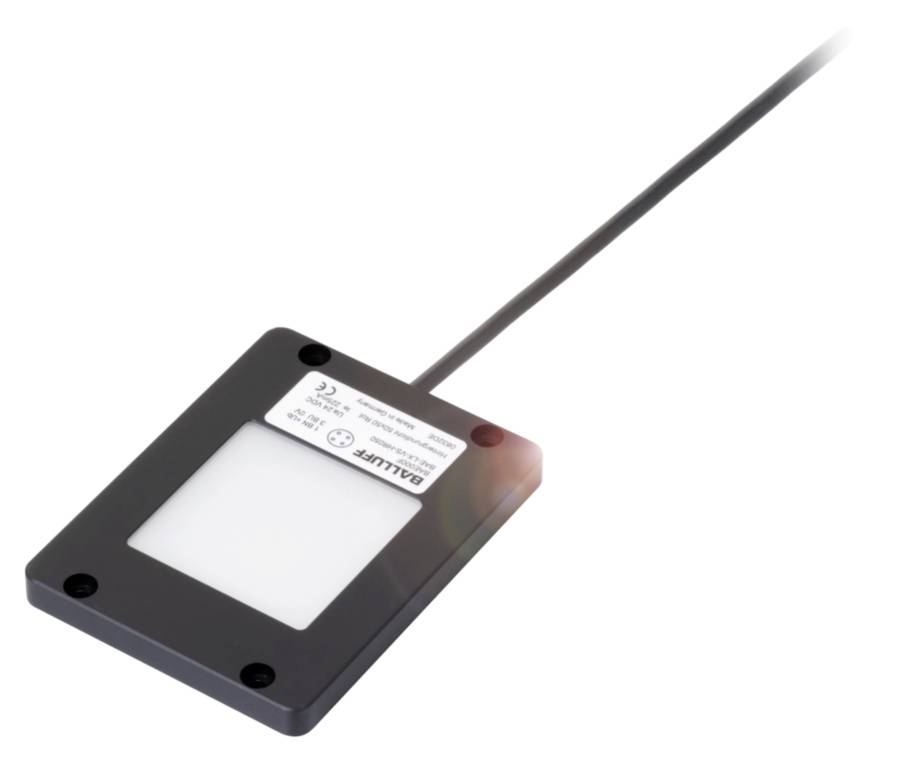

Name: BALLUFF BAE00KR Lighting 1 pc(s) (L x W x H) 105 x 80 x 9.5 mm
Brand: BALLUFF
SKU: 3416392

Highlights & Details

Balluff BAE00KR background lighting

Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Dimensions 80 x 9.5 x 105 mm
Design: Background illumination
Rated operating voltage Ue DC 24 V
Power consumption maximum 375 mA

Technical specifications

Main features:Dimension 80 x 9.5 x 105 mm
Radiation angle 35 ° x 35 °
Connection: Cable with connector, M12x1 connector, 4-pin, 0.3 m
Design: Background illumination
Rated operating voltage Ue DC 24 V
Operating mode: Normal (continuous mode)
Digital inputs: Trigger
Light surface 50 x 50 mm
LED infrared light
Material: Anodised aluminum, black
Glass
PMMA
Protection class: IP54
Power consumption maximum 375 mA
Ambient temperature -10...55 °C
Wavelength 875 nm
Additional features:
Design: Background illumination
Supply: Background lighting
Application: For Vision sensors BVS
Dimensions 80 x 9.5 x 105 mm
Mounting: Screws
Rated operating voltage Ue DC 24 V
Connection: M12x1 4-pin connector, A-coded
Reverse polarity protection: Yes
MTTF (40 °C) 309 a
Connection type: Cable with connector, 0.3 m.
Cable length 0.3 m
Housing material: Aluminium, anodized, black|glass, PMMA
Protection class: IP54
Ambient temperature -10...55 °C
Number of conductors: 4
Conductor cross-section: 0.34 mm²
Surface protection: Anodised, black
Adjuster: No
LED infrared light
Wavelength 875 nm
LED group according to IEC 62471: Risk group 1
Operating mode: Normal (continuous mode)
Power consumption maximum 375 mA
Digital inputs: Trigger
Radiation angle 35 ° x 35 °
Light surface 50 x 50 mm

Product type: Lighting

Connection: Plug

Type: BAE00KR

Content: 1 pc(s)

Mounting type: Screw fastening

Length: 105 mm

Width: 80 mm

Height: 9.5 mm

Dim: (L x W x H) 105 x 80 x 9.5 mm

Material: Aluminium (anodized)
Glass

: IP54

Cable length: 0.3 m

Wavelength: 875 nm

Connector: Plug

Operating voltage: 24 V DC

Cross-section (sensor/actuator wiring): 0.34 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416392 BALLUFF BAE00KR Lighting 1 pc(s) (L x W x H) 105 x 80 x 9.5 mm

User & Safety Instructions

User & Safety Instructions 3416392 BALLUFF BAE00KR Lighting 1 pc(s) (L x W x H) 105 x 80 x 9.5 mm

Description

With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions = 80 x 9.5 x 105 mm, rated operating voltage Ue DC = 24 V, current consumption max. = 375 mA, operating mode = normal, digital inputs = trigger, material = aluminum anodized, black glass PMMA, illuminated surface=50 x 50 mm, light type=LED infrared, wavelength=875 nm, beam angle=35 ° x 35 °, ambient temperature=-10...55 °C, approved/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.

Description

With our background lighting you can check dimensions and shapes easily and independently of material and surface. You can choose between different sizes with different sizes of light field and variants with red light and infrared light. Our background lighting can also be used as diffuse reflected light illumination. Connection = cable with connector M12x1 connector, 4-pin, 0.30 m, version = background lighting, Dimensions = 80 x 9.5 x 105 mm, rated operating voltage Ue DC = 24 V, current consumption max. = 375 mA, operating mode = normal, digital inputs = trigger, material = aluminum anodized, black glass PMMA, illuminated surface=50 x 50 mm, light type=LED infrared, wavelength=875 nm, beam angle=35 ° x 35 °, ambient temperature=-10...55 °C, approved/conformity=CEEACWEEE, protection class=IP54

This text is machine translated.
