BALLUFF BAE00NT Lighting 1 pc(s) (L x W x H) 100 x 13 x 18 mm
Product type
Lighting
Connection
Plug
Mounting type
Screw fastening
Type
BAE00NT
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

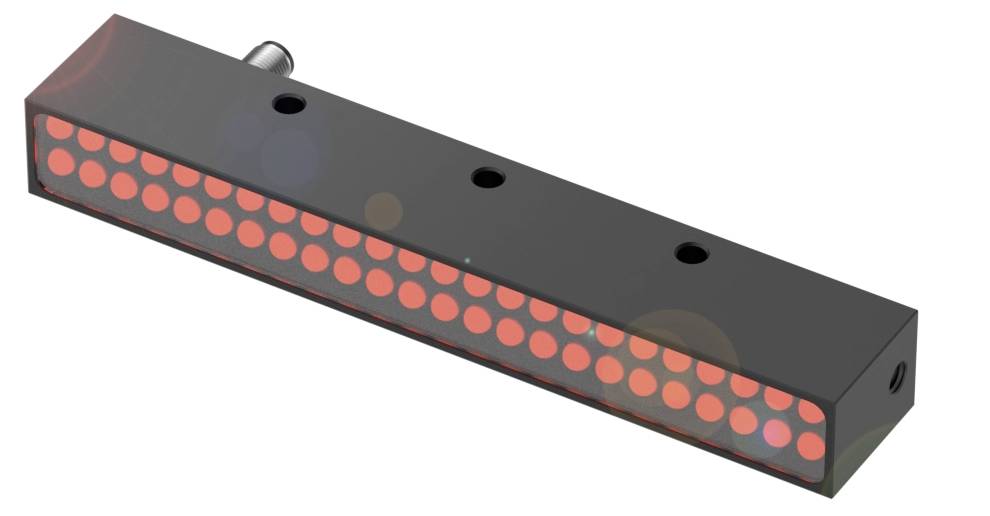

Balluff BAE00NT line lighting
- Connection: Plug connector, M5x0.5 plug, 4-pin, 0.3 m
- Dimensions 13 x 18 x 100 mm
- Design: Line lighting
- Rated operating voltage Ue DC 24 V
- Max. Power consumption: 170 mA, 375 mA (boost mode)
Technical specifications
- Main features:Dimension 13 x 18 x 100 mm
- Radiation angle 75 ° x 30 °
- Connection: Plug connector, M5x0.5 plug, 4-pin, 0.3 m
- Design: Line lighting
- Illumination (0.1 m): 6400 lux
- 13500 Lux (boost mode)
- Rated operating voltage Ue DC 24 V
- Operating mode: Normal (continuous mode)
- Boost (continuous operation with cooling)
- Digital inputs: Trigger
- Light surface 95 x 10 mm
- LED red light
- Material: Anodised aluminum, black
- Glass
- Protection class: IP54
- Max. Power consumption: 170 mA, 375 mA (boost mode)
- Ambient temperature -10...55 °C
- Wavelength 617 nm
- Additional features:
- Design: Line lighting
- Delivery: Line light|Connection cable M5 on M12
- Application: For Vision sensors BVS
- Dimensions 13 x 18 x 100 mm
- Mounting: Screws
- Rated operating voltage Ue DC 24 V
- Connection: M5x0.5 plug, 4-pin, A-coded
- Reverse polarity protection: Yes
- MTTF (40 °C) 456 a
- Connection type: Connector 0.3 m.
- Cable length 0.3 m
- Housing material: Aluminium, anodized, black|glass
- Protection class: IP54
- Ambient temperature -10...55 °C
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Adjuster: No
- LED red light
- Wavelength 617 nm
- LED group according to IEC 62471: Free group
- Operating mode: Normal (continuous operation)|Boost (continuous operation with cooling)
- Input function: Normal/Boost|Emitter on/off mode
- Max. Power consumption: 170 mA, 375 mA (boost mode)
- Surface protection Mechanical characteristics: Anodised, black
- Digital inputs Ambient conditions: Trigger
- Radiation angle 75 ° x 30 °
- Light surface 95 x 10 mm
- Illumination (0.1 m): 6400 lux|13500 lux (boost mode)
- Product type
Lighting
- Connection
Plug
- Type
BAE00NT
- Content
1 pc(s)
- Mounting type
Screw fastening
- Length
100 mm
- Width
13 mm
- Height
18 mm
- Dim
(L x W x H) 100 x 13 x 18 mm
- Material
Aluminium (anodized)
Glass
IP54
- Cable length
0.3 m
- Wavelength
617 nm
- Connector
M5
- Operating voltage
24 V DC
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416352 BALLUFF BAE00NT Lighting 1 pc(s) (L x W x H) 100 x 13 x 18 mm
User & Safety Instructions
User & Safety Instructions 3416352 BALLUFF BAE00NT Lighting 1 pc(s) (L x W x H) 100 x 13 x 18 mm
Description
Used as side lighting, our line lighting creates shadows to test features. The direct illumination allows the brightening of the image field. In addition, it provides uniform lighting without shiny surfaces. You get the lighting in different sizes. You can choose from varieties with red light, white light and infrared. Connection = plug connector M5x0.5 plug, 4-pin, 0.30 m, design = line lighting, Dimensions=13 x 100 x 18 mm, rated operating voltage Ue DC=24 V, current consumption max.=170 mA, 375 mA (boost mode), operating mode=normal boost, digital inputs=trigger, Material=aluminum anodized, black glass, light surface=95 x 10 mm, light type=LED red light, wavelength=617 nm, light intensity (0.1 m)=6400 Lux 13500 Lux (boost mode), radiation angle=75 ° x 30 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54
