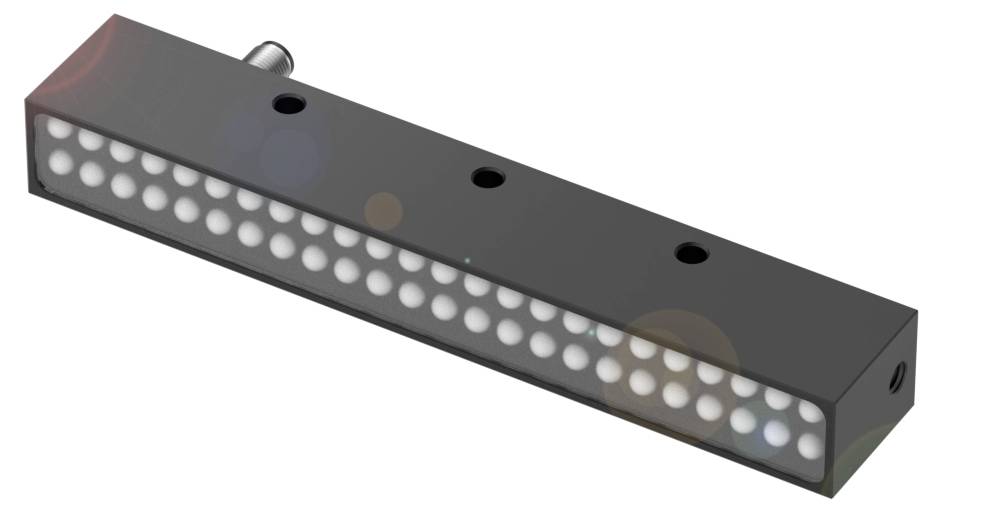

BALLUFF BAE00NW Lighting 1 pc(s) (L x W x H) 100 x 13 x 18 mm
Product type
Lighting
Connection
Plug
Mounting type
Screw fastening
Type
BAE00NW
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BAE00NW Line Lighting
- Connection: Plug connector, M5x0.5 plug, 4-pin, 0.3 m
- Dimensions 13 x 18 x 100 mm
- Design: Line lighting
- Rated operating voltage Ue DC 24 V
- Max. Power consumption: 125 mA, 250 mA (boost mode)
Technical specifications
- Main features:Dimension 13 x 18 x 100 mm
- Radiation angle 80 ° x 35 °
- Connection: Plug connector, M5x0.5 plug, 4-pin, 0.3 m
- Design: Line lighting
- Illumination (0.1 m): 2800 lux
- 6200 Lux (boost mode)
- Rated operating voltage Ue DC 24 V
- Operating mode: Normal (continuous mode)
- Boost (continuous operation with cooling)
- Digital inputs: Trigger
- Colour temperature: 5600 K
- Light surface 95 x 10 mm
- LED white light
- Material: Anodised aluminum, black
- Glass
- Protection class: IP54
- Max. Power consumption: 125 mA, 250 mA (boost mode)
- Ambient temperature -10...55 °C
- Additional features:
- Design: Line lighting
- Delivery: Line light|Connection cable M5 on M12
- Application: For Vision sensors BVS
- Dimensions 13 x 18 x 100 mm
- Mounting: Screws
- Rated operating voltage Ue DC 24 V
- Connection: M5x0.5 plug, 4-pin, A-coded
- Reverse polarity protection: Yes
- MTTF (40 °C) 614 a
- Connection type: Connector 0.3 m.
- Cable length 0.3 m
- Housing material: Aluminium, anodized, black|glass
- Protection class: IP54
- Ambient temperature -10...55 °C
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Adjuster: No
- LED white light
- LED group according to IEC 62471: Free group
- Operating mode: Normal (continuous operation)|Boost (continuous operation with cooling)
- Input function: Normal/Boost|Emitter on/off mode
- Max. Power consumption: 125 mA, 250 mA (boost mode)
- Surface protection Mechanical characteristics: Anodised, black
- Digital inputs Ambient conditions: Trigger
- Radiation angle 80 ° x 35 °
- Light surface 95 x 10 mm
- Illumination (0.1 m): 2800 lux|6200 lux (boost mode)
- Colour temperature: 5600 K
- Product type
Lighting
- Connection
Plug
- Type
BAE00NW
- Content
1 pc(s)
- Mounting type
Screw fastening
- Length
100 mm
- Width
13 mm
- Height
18 mm
- Dim
(L x W x H) 100 x 13 x 18 mm
- Material
Aluminium (anodized)
Glass
IP54
- Cable length
0.3 m
- Connector
M5
- Operating voltage
24 V DC
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416170 BALLUFF BAE00NW Lighting 1 pc(s) (L x W x H) 100 x 13 x 18 mm
User & Safety Instructions
User & Safety Instructions 3416170 BALLUFF BAE00NW Lighting 1 pc(s) (L x W x H) 100 x 13 x 18 mm
Description
Used as side lighting, our line lighting creates shadows to test features. The direct illumination allows the brightening of the image field. In addition, it provides uniform lighting without shiny surfaces. You get the lighting in different sizes. You can choose from varieties with red light, white light and infrared. Connection = plug connector M5x0.5 plug, 4-pin, 0.30 m, design = line lighting, Dimensions=13 x 100 x 18 mm, rated operating voltage Ue DC=24 V, current consumption max.=125 mA, 250 mA (boost mode), operating mode=normal boost, digital inputs=trigger, Material = aluminum anodized, black glass, light surface = 95 x 10 mm, light type = LED, light intensity (0.1 m) = 2800 Lux 6200 Lux (boost mode), color temperature = 5600 K, radiation angle = 80 ° x 35 °, ambient temperature =-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54
