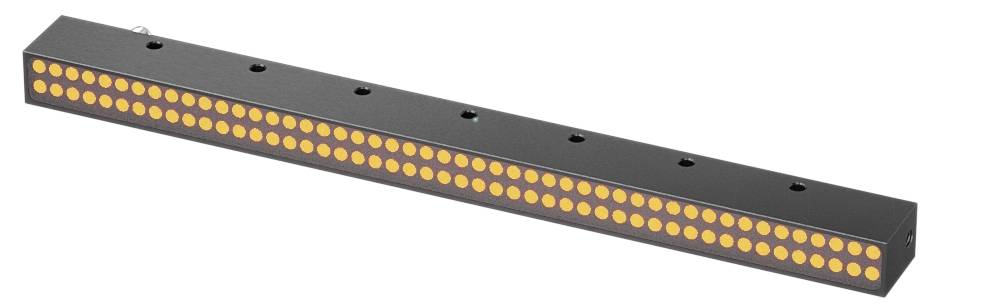

BALLUFF BAE00NZ Lighting 1 pc(s) (L x W x H) 200 x 13 x 18 mm
Product type
Lighting
Connection
Plug
Mounting type
Screw fastening
Type
BAE00NZ
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BAE00NZ line lighting
- Connection: Plug connector, M5x0.5 plug, 4-pin, 0.3 m
- Dimensions 13 x 18 x 200 mm
- Design: Line lighting
- Rated operating voltage Ue DC 24 V
- Max. Power consumption: 290 mA, 710 mA (boost mode)
Technical specifications
- Main features:Dimension 13 x 18 x 200 mm
- Radiation angle 115 ° x 35 °
- Connection: Plug connector, M5x0.5 plug, 4-pin, 0.3 m
- Design: Line lighting
- Rated operating voltage Ue DC 24 V
- Operating mode: Normal (continuous mode)
- Boost (continuous operation with cooling)
- Digital inputs: Trigger
- Light surface 195 x 10 mm
- LED infrared light
- Material: Anodised aluminum, black
- Glass
- Protection class: IP54
- Max. Power consumption: 290 mA, 710 mA (boost mode)
- Ambient temperature -10...55 °C
- Wavelength 875 nm
- Additional features:
- Design: Line lighting
- Delivery: Line light|Connection cable M5 on M12
- Application: For Vision sensors BVS
- Dimensions 13 x 18 x 200 mm
- Mounting: Screws
- Rated operating voltage Ue DC 24 V
- Connection: M5x0.5 plug, 4-pin, A-coded
- Reverse polarity protection: Yes
- MTTF (40 °C) 758 a
- Connection type: Connector 0.3 m.
- Cable length 0.3 m
- Housing material: Aluminium, anodized, black|glass
- Protection class: IP54
- Ambient temperature -10...55 °C
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Adjuster: No
- LED infrared light
- Wavelength 875 nm
- LED group according to IEC 62471: Risk group 1
- Operating mode: Normal (continuous operation)|Boost (continuous operation with cooling)
- Input function: Normal/Boost|Emitter on/off mode
- Max. Power consumption: 290 mA, 710 mA (boost mode)
- Digital inputs: Trigger
- Surface protection Mechanical characteristics: Anodised, black
- Radiation angle 115 ° x 35 °
- Light surface 195 x 10 mm
- Product type
Lighting
- Connection
Plug
- Type
BAE00NZ
- Content
1 pc(s)
- Mounting type
Screw fastening
- Length
200 mm
- Width
13 mm
- Height
18 mm
- Dim
(L x W x H) 200 x 13 x 18 mm
- Material
Aluminium (anodized)
Glass
IP54
- Cable length
0.3 m
- Wavelength
875 nm
- Connector
M5
- Operating voltage
24 V DC
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416339 BALLUFF BAE00NZ Lighting 1 pc(s) (L x W x H) 200 x 13 x 18 mm
User & Safety Instructions
User & Safety Instructions 3416339 BALLUFF BAE00NZ Lighting 1 pc(s) (L x W x H) 200 x 13 x 18 mm
Description
Used as side lighting, our line lighting creates shadows to test features. The direct illumination allows the brightening of the image field. In addition, it provides uniform lighting without shiny surfaces. You get the lighting in different sizes. You can choose from varieties with red light, white light and infrared. Connection = plug connector M5x0.5 plug, 4-pin, 0.30 m, design = line lighting, Dimensions=13 x 200 x 18 mm, rated operating voltage Ue DC=24 V, current consumption max.=290 mA, 710 mA (boost mode), operating mode=normal boost, digital inputs=trigger, Material=aluminum anodized, black glass, light surface=195 x 10 mm, light type=LED infrared, wavelength=875 nm, angle of radiation=115 ° x 35 °, ambient temperature=-10...55 °C, approval/conformity=CEEACWEEE, protection class=IP54
