Name: BALLUFF BAE010A Line laser 1 pc(s) 5.0 - 30.0 V (Ø x L) 20 mm x 116.0 mm
Brand: BALLUFF
SKU: 3416162

Highlights & Details

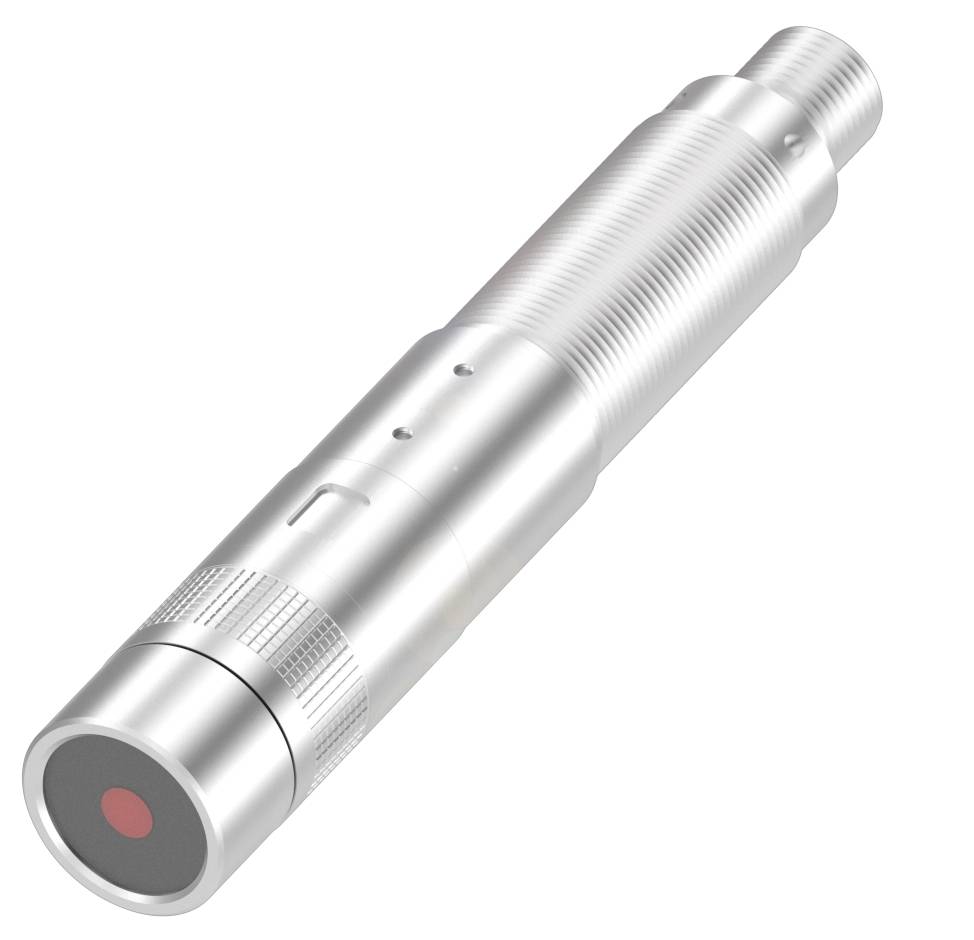

Balluff BAE010A line laser

Connection: Connector, M12x1 connector, 5-pin
Dimensions: Ø 20 x 116 mm
Design: Laser module
Rated operating voltage Ue DC 24 V
Power consumption maximum 400 mA

Technical specifications

Main features:Dimensions: Ø 20 x 116 mm
Connection: Connector, M12x1 connector, 5-pin
Design: Laser module
Rated operating voltage Ue DC 24 V
Digital inputs: Trigger
Light: Red laser light
Material: Stainless steel
Glass nuts nickel-plated brass
Protection class IP67
Power consumption maximum 400 mA
Ambient temperature -10...50 °C
Wavelength 635 nm.
Additional features:
Design: Laser module
Delivery: Laser|Nut M18x1 (2x)
Application: For Vision sensors BVS
Dimensions: Ø 20 x 116 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated insulation voltage UI 75 V DC
Operating voltage Ub 5...30 VDC
Connection: M12x1 5-pin connector, A-coded
Reverse polarity protection: Yes
MTTF (40 °C) 2 a
Housing material: Stainless steel|glass, nickel-plated brass nuts
Protection class IP67
Ambient temperature -10...50 °C
Adjustable focus distance
Adjuster: Focus ring
Laser class according to IEC 60825-1: 1M
Light: Red laser light
Wavelength 635 nm.
Power consumption maximum 400 mA
Digital inputs: Trigger
Operating frequency: Digital: Up to 400 kHz
Output power max. 5 mW
Focus range: 100 mm … 10000 mm
Min opening angle: 30° x 30°
Projection type: Cross

Product type: Line laser

Connection: Plug

Type: BAE010A

Content: 1 pc(s)

Mounting type: Locknut

Min. operating voltage: 5.0 V

Max. operating voltage: 30.0 V

Operating voltage: 5.0 - 30.0 V

Length: 116.0 mm

Width: 116 mm

Dim: (Ø x L) 20 mm x 116.0 mm

Material: Stainless steel
Glass

Nominal voltage: 30.0 V

: IP67

(Ø): 20 mm

Wavelength: 635 nm

Connector: M12

Laser class: 1

Operating voltage: 24 V DC

UKCA: yes
