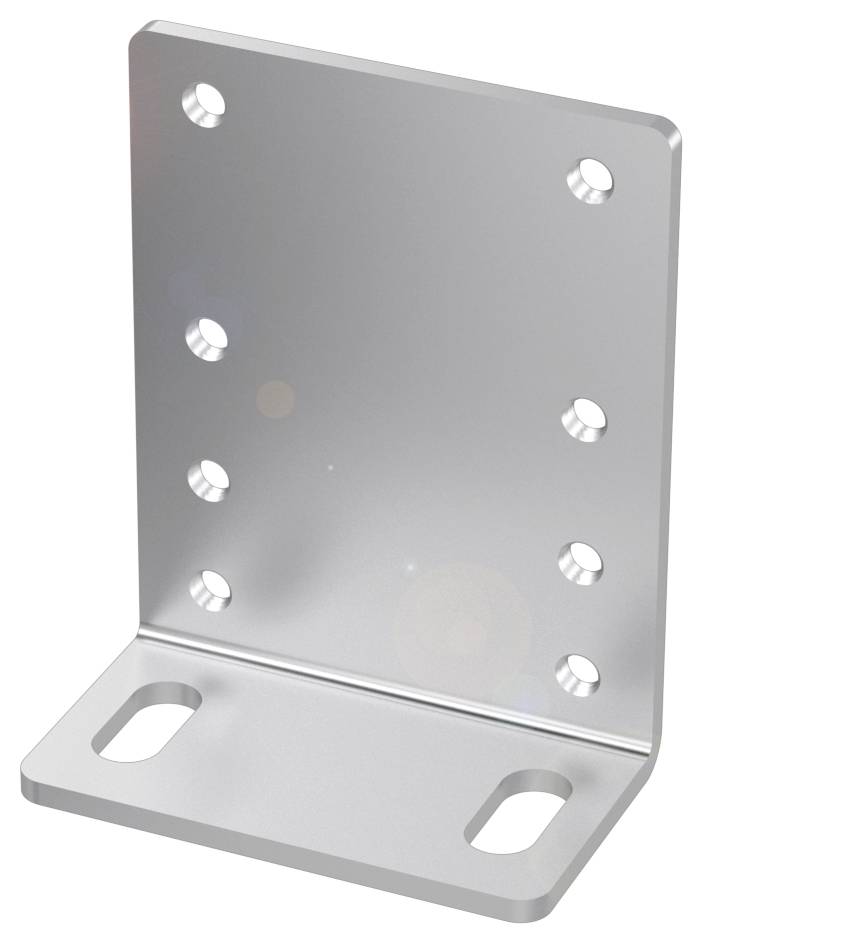

Image similar
BALLUFF BAM00U9 Support bracket BAM00U9 1 pc(s)
Product type
Support bracket
Type
BAM00U9
Content
1 pc(s)
Length
44.20 mm
Width
20.00 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BAM00U9 bracket for optoelectronic sensors
- Dimensions 20 x 35 x 44.2 mm
- Mounting: Screws
- Use: For BOS R-26 reflectors
- Design: Mounting bracket
- Adjustable 1 axis
- Material: Galvanized steel
Technical specifications
- Main features:Dimension 20 x 35 x 44.2 mm
- Design: Mounting bracket
- Adjustable 1 axis
- Mounting: Screws
- Material: Galvanized steel
- Use: For BOS R-26 reflectors
- Additional features:
- Design: Mounting bracket|1 axis adjustable
- Included in delivery: Spring ring DIN 127B-M3 (2x)|Mounting bracket|Disc ISO 7089-M3 (2x)|Screw ISO 7045-M4x10 (2x)
- Use: For BOS R-26 reflectors
- Material: Steel
- Dimensions 20 x 35 x 44.2 mm
- Mounting: Screws
- Surface protection: Galvanised
- Short description: Reflector holder
- Product type
Support bracket
- Type
BAM00U9
- Content
1 pc(s)
- Length
44.20 mm
- Width
20.00 mm
- Height
35.00 mm
- Material
Steel
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418529 BALLUFF BAM00U9 Support bracket BAM00U9 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418529 BALLUFF BAM00U9 Support bracket BAM00U9 1 pc(s)
Description
Our sensor holders can be combined with the mounting system BMS. The high-quality sensor holders are designed and tested for Balluff opto-electronic sensors. They are characterized by precision and durability. Design=Mounting angles 1 adjustable axis, use=for BOS R-26 reflectors, material=galvanized steel, dimension=20 x 35 x 44.2 mm, fixing=screws
