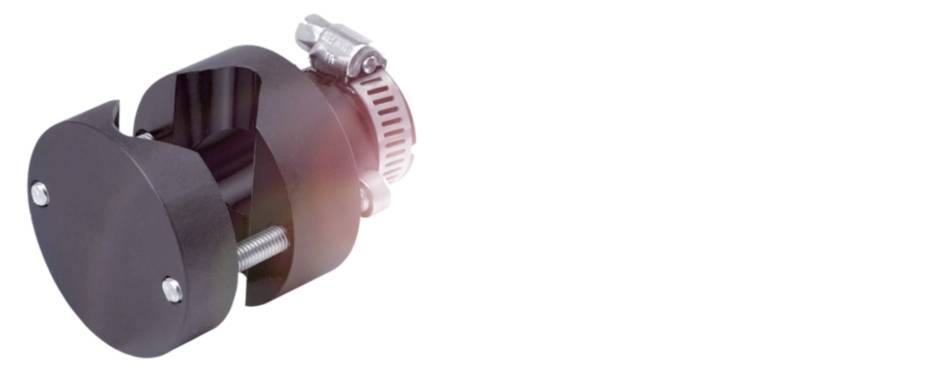

Image similar
BALLUFF BAM015F Clip BAM015F 1 pc(s)
Product type
Clip
Type
BAM015F
Connector
M18
Content
1 pc(s)
Length
49.80 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BAM015F clamp holder without fixed stop for proximity switch
- Dimensions: Ø 18 x 49.8 mm
- Mounting: Screws, clamps
- Ambient temperature -40...85 °C
- Use: For sensors Ø18 mm
- Material: Steel, stainless
- POM
Technical specifications
- Main features:Dimensions: Ø 18 x 49.8 mm
- Mounting: Screws, clamps
- Material: Steel, stainless
- POM
- Ambient temperature -40...85 °C
- Use: For sensors Ø18 mm
- Additional features:
- Design: Inspection glass, mounting
- Principle of operation: Capacitive sensor
- Scope of delivery: Mounting sight glass back|Hose clamp|Screw B18.6.3 10-32x1.75" (2x)|Sensor mounting sight glass
- Use: For sensors Ø18 mm
- Material: POM|Steel, stainless steel
- Dimensions: Ø 18 x 49.8 mm
- Mounting: Screws, clamps
- Tightening torque 2.2 Nm
- Size M18x1
- Housing material: Steel, stainless|POM
- Ambient temperature -40...85 °C
- Tightening torque clamp screw 1.1 Nm
- Storage temperature: -55...121 °C
- Application: Assembly
- Clamp system: Mounting clip
- Product type
Clip
- Type
BAM015F
- Connector
M18
- Content
1 pc(s)
- Length
49.80 mm
- (Ø)
18 mm
- Enclosure material
Stainless steel
- Material
POM
Steel (stainless)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418724 BALLUFF BAM015F Clip BAM015F 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418724 BALLUFF BAM015F Clip BAM015F 1 pc(s)
Description
Our clamping holders without fixed stop offer secure protection, positioning and attachment in one. They are characterized by simple installation and rugged design. You can choose between different sizes and versions such as brass, stainless steel, also with PTFE coating. Use=for sensors Ø18 mm, material=stainless steel POM, dimension=Ø 18 x 49.8 mm, fixing=screws, clamps, ambient temperature=-40...85 °C
