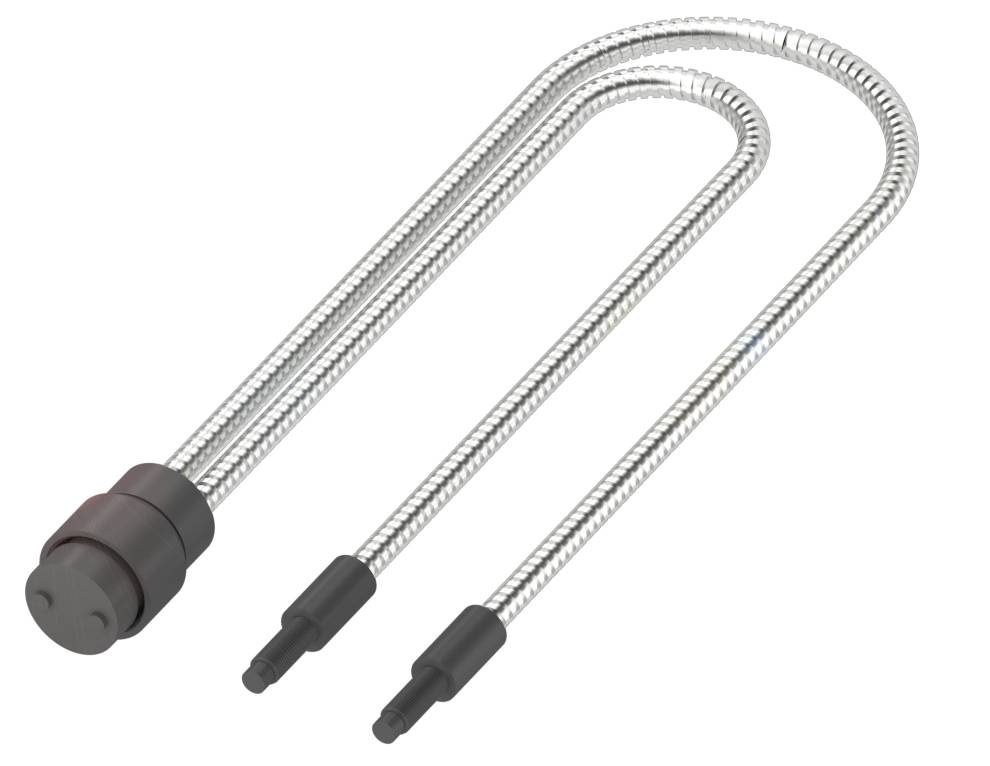

Image similar
BALLUFF BFO000J Fibre optics BFO000J 1 pc(s)
Product type
Fibre optics
Type
BFO000J
Connector
M18
Cable length
1.50 m
IP rating
IP50
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO000J plastic and fiber optic fibers for fiber base devices
- Usage: For fiber base devices BFB
- M5 Standard model
- Cable length 1.5 m
- Reference basic device: BFB M18M-011-P-S4
- Fibre type material: Glass
Technical specifications
- Main features:Active surface, fiber arrangement: Homogeneous bundle
- Active surface, fibers: Bundle Ø 1.0 mm
- M5 Standard model
- Fibre type material: Glass
- Cable length 1.5 m
- Jacket material: Stainless steel
- Material: Black brass
- Reference basic device: BFB M18M-011-P-S4
- Range: 200 mm
- Protection class: IP50
- Ambient temperature -20...250 °C
- Usage: For fiber base devices BFB
- Additional features:
- M5 Standard model
- Delivery scope: Fiber optics
- Usage: For fiber base devices BFB
- Dimensions: Ø 8 x 30 mm
- Mounting: Clamped
- M18x1 connection
- Rated switching distance Sn: 200 mm
- Real switching distance Sr:200 mm
- Connection type: Adapter head, 1.50 m, steel|stainless steel
- Cable diameter D 7.00 mm
- Cable length 1.5 m
- Housing material: Brass, black
- Jacket material: Stainless steel
- Protection class: IP50
- Ambient temperature -20...250 °C
- Range: 200 mm
- Surface protection: Black
- Reference basic device: BFB M18M-011-P-S4
- Active surface, fiber arrangement: Homogeneous bundle
- Fibre type material: Glass
- Active surface, fibers: Bundle Ø 1.0 mm
- Fibre, bending radius min. 60 mm
- Light cable, construction: Fibre bundle in metal spiral
- Length B min, without bend: 15.00 mm
- Traction load max. at 20 °C: 80 N
- Ambient temperature connection range: According to light conductor device
- Ambient temperature max. 250 °C static, 170 °C dynamic
- Product type
Fibre optics
- Type
BFO000J
- Connector
M18
- Cable length
1.50 m
IP50
- Content
1 pc(s)
- Length
30.00 mm
- (Ø)
8 mm
- Enclosure material
Brass
- Material
Steel (stainless)
Brass
- Material properties
rust-proof
- Size
M5
200 m
- Max. temperature
250 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3418675 BALLUFF BFO000J Fibre optics BFO000J 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418675 BALLUFF BFO000J Fibre optics BFO000J 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Execution=M5, standard, use=For fiber base equipment BFB, reference base unit=BFB M18M-011-P-S4, fiber type material=glass, Cable length L=1.50 m, sheath material=stainless steel, range=200 mm, ambient temperature=-20...250 °C, material=black brass, Active surface, fibers=bundles Ø 1.0 mm, active surface, fiber arrangement=homogeneous bundle, protection class=IP50
