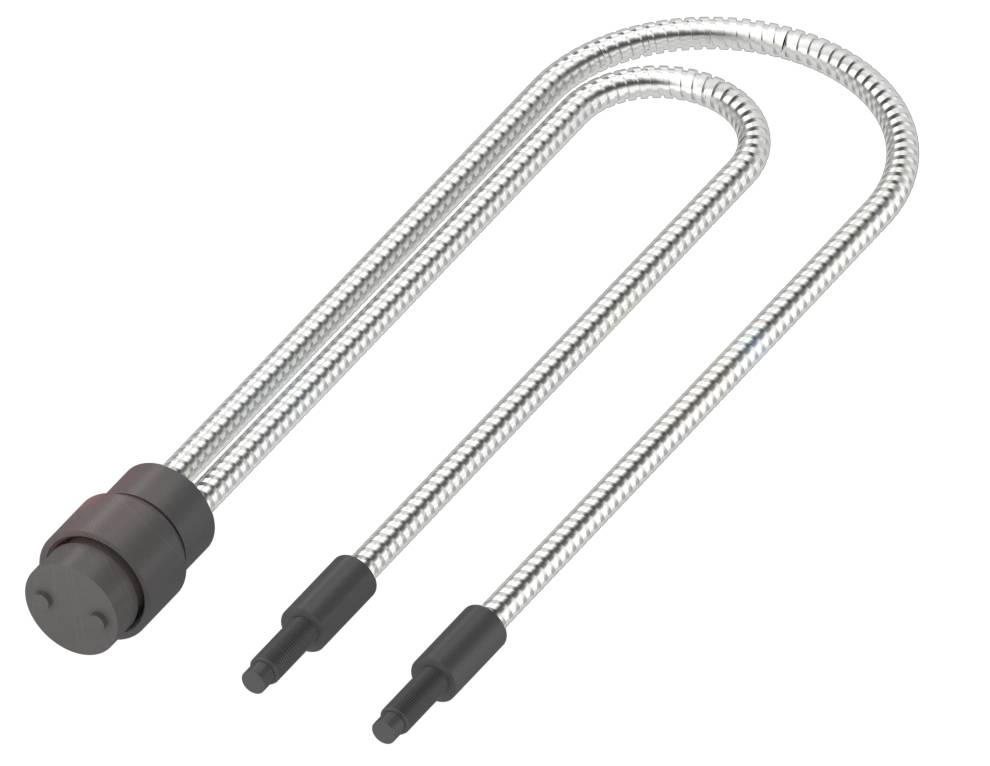

BALLUFF BFO000K Fibre optics BFO000K 1 pc(s)
Product type
Fibre optics
Type
BFO000K
Connector
M18
Cable length
2 m
IP rating
IP50
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO000K plastic and fiberglass for fiber base devices
- M5 Standard model
- Cable length 2 m
- Reference basic device: BFB M18M-011-P-S4
- Fibre type material: Glass
- Jacket material: Stainless steel
Technical specifications
- Main features:Active surface, fiber arrangement: Homogeneous bundle
- Active surface, fibers: Bundle Ø 1.0 mm
- M5 Standard model
- Fibre type material: Glass
- Cable length 2 m
- Jacket material: Stainless steel
- Material: Black brass
- Reference basic device: BFB M18M-011-P-S4
- Range: 200 mm
- Protection class: IP50
- Ambient temperature -20...250 °C
- Additional features:
- M5 Standard model
- Delivery scope: Fiber optics
- Dimensions: Ø 8 x 30 mm
- Mounting: Clamped
- M18x1 connection
- Rated switching distance Sn: 200 mm
- Real switching distance Sr:200 mm
- Connection type: Adapter head, 2.00 m, steel|stainless steel
- Cable diameter D 7.00 mm
- Cable length 2 m
- Housing material: Brass, black
- Jacket material: Stainless steel
- Protection class: IP50
- Ambient temperature -20...250 °C
- Range: 200 mm
- Surface protection: Black
- Reference basic device: BFB M18M-011-P-S4
- Active surface, fiber arrangement: Homogeneous bundle
- Fibre type material: Glass
- Active surface, fibers: Bundle Ø 1.0 mm
- Fibre, bending radius min. 60 mm
- Light cable, construction: Fibre bundle in metal spiral
- Length B min, without bend: 15.00 mm
- Traction load max. at 20 °C: 80 N
- Ambient temperature connection range: According to light conductor device
- Ambient temperature max. 250 °C static, 170 °C dynamic
- Product type
Fibre optics
- Type
BFO000K
- Connector
M18
- Cable length
2 m
IP50
- Content
1 pc(s)
- Length
30.00 mm
- (Ø)
8 mm
- Enclosure material
Brass
- Material
Steel (stainless)
Brass
- Material properties
rust-proof
- Size
M5
200 m
- Max. temperature
250 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3418679 BALLUFF BFO000K Fibre optics BFO000K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418679 BALLUFF BFO000K Fibre optics BFO000K 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Execution=M5, standard, reference basic device=BFB M18M-011-P-S4, fiber type material=glass, cable length L=2.00 m, Jacket material=stainless steel, range=200 mm, ambient temperature=-20...250 °C, material=black brass, active surface, Fibers=bundles Ø 1.0 mm, active surface, fiber arrangement=homogeneous bundle, protection class=IP50
