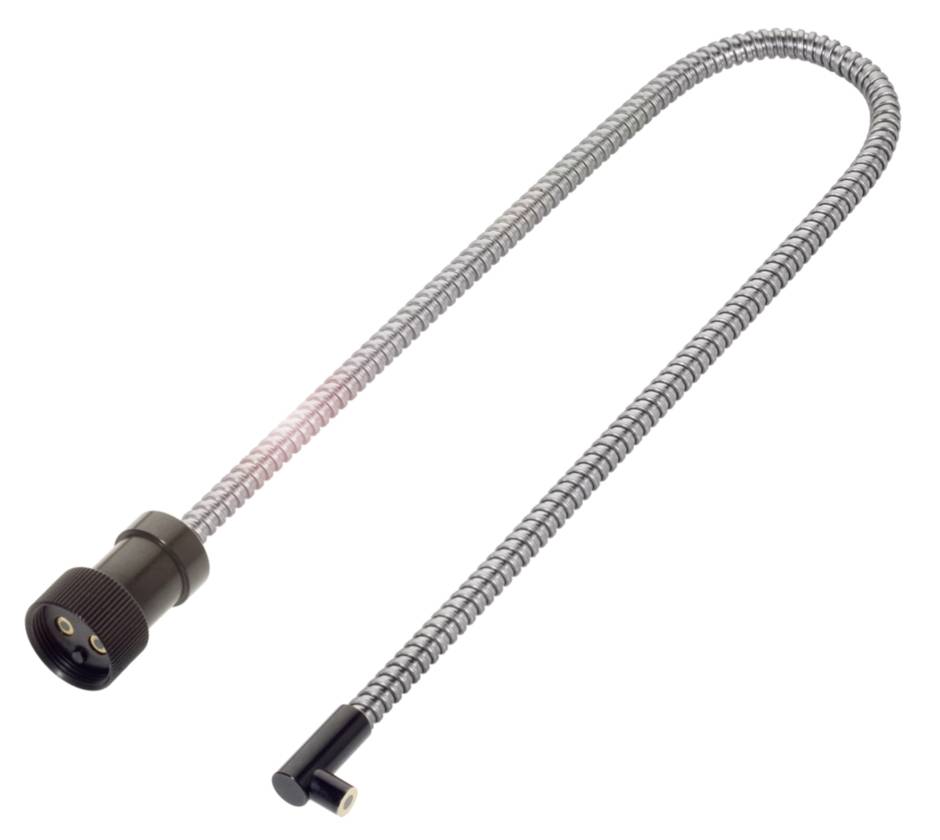

Image similar
BALLUFF BFO0033 Fibre optics BFO0033 1 pc(s)
Product type
Fibre optics
Type
BFO0033
Connector
M18
Cable length
1.50 m
IP rating
IP50
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO0033 Plastic and Fiber Optics for Fiber Base Devices
- Execution: Ø 6, 90 °-optics
- Cable length 1.5 m
- Reference basic device: BFB M18M-011-P-S4
- Fibre type material: Glass
- Jacket material: Stainless steel
Technical specifications
- Main features:Active surface, fiber arrangement: Segmented bundle
- Active surface, fibers: Bundle Ø 3.0 mm
- Execution: Ø 6, 90 °-optics
- Fibre type material: Glass
- Cable length 1.5 m
- Jacket material: Stainless steel
- Reference basic device: BFB M18M-011-P-S4
- Range: 20 mm
- Protection class: IP50
- Ambient temperature -20...250 °C
- Additional features:
- Execution: Ø 6, 90 °-optics
- Delivery scope: Fiber optics
- Dimensions: Ø 8 x 14 mm
- Mounting: Clamped
- M18x1 connection
- Rated switching distance Sn: 20 mm
- Real switching distance Sr:20 mm
- Connection type: Adapter head, 1.50 m, steel|stainless steel
- Cable diameter D 7.00 mm
- Cable length 1.5 m
- Housing material: Brass, black
- Jacket material: Stainless steel
- Protection class: IP50
- Ambient temperature -20...250 °C
- Range: 20 mm
- Surface protection: Black
- Reference basic device: BFB M18M-011-P-S4
- Active surface, fiber arrangement: Segmented bundle
- Fibre type material: Glass
- Active surface, fibers: Bundle Ø 3.0 mm
- Fibre, bending radius min. 60 mm
- Light cable, construction: Fibre bundle in metal spiral
- Length B min, without bend: 15.00 mm
- Traction load max. at 20 °C: 80 N
- Ambient temperature Connection range: -5...55 °C.
- Ambient temperature max. 250 °C static, 170 °C dynamic
- Product type
Fibre optics
- Type
BFO0033
- Connector
M18
- Cable length
1.50 m
IP50
- Content
1 pc(s)
- Length
14.00 mm
- Height
20.00 mm
- (Ø)
8 mm
- Enclosure material
Brass
- Material
Steel (stainless)
Documents & Downloads
Datasheet
Datasheet 3418848 BALLUFF BFO0033 Fibre optics BFO0033 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418848 BALLUFF BFO0033 Fibre optics BFO0033 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Execution=Ø 6, 90°-optics, dimension=Ø 8 x 14 mm, fiber-type material=glass, cable length L=1.50 m, sheath material=steel non-rusting, range=20 mm, Ambient temperature=-20...250 °C, material=black brass, active surface, fibers=bundle Ø 3.0 mm, active surface, fiber arrangement=segmented bundle, protection class=IP50
