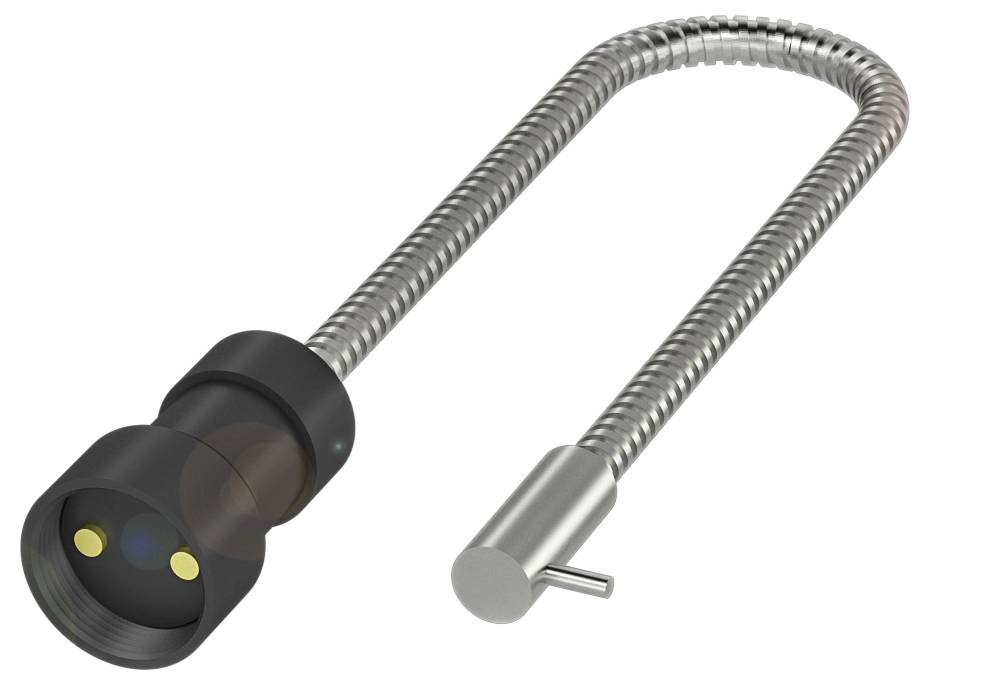

Image similar
BALLUFF BFO003H Fibre optics BFO003H 1 pc(s)
Product type
Fibre optics
Type
BFO003H
Connector
M18
Cable length
0.50 m
IP rating
IP50
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO003H plastic and glass fiber for fiber base equipment
- Usage: For fiber base devices BFB
- Execution: Ø 2, 90 °-optics
- Cable length 0.5 m
- Reference basic device: BFB M18M-011-P-S4
- Fibre type material: Glass
Technical specifications
- Main features:Active surface, fiber arrangement: Segmented bundle
- Active surface, fibers: Bundle Ø 1.4 mm
- Execution: Ø 2, 90 °-optics
- Fibre type material: Glass
- Cable length 0.5 m
- Jacket material: Stainless steel
- Reference basic device: BFB M18M-011-P-S4
- Range: 10 mm
- Protection class: IP50
- Ambient temperature -20...250 °C
- Usage: For fiber base devices BFB
- Additional features:
- Execution: Ø 2, 90 °-optics
- Delivery scope: Fiber optics
- Usage: For fiber base devices BFB
- Dimensions: Ø 8 x 14 mm
- Mounting: Clamped
- M18x1 connection
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Connection type: Adapter head, 0.50 m, steel|stainless steel
- Cable diameter D 7.00 mm
- Cable length 0.5 m
- Housing material: Stainless steel
- Jacket material: Stainless steel
- Protection class: IP50
- Ambient temperature -20...250 °C
- Range: 10 mm
- Reference basic device: BFB M18M-011-P-S4
- Active surface, fiber arrangement: Segmented bundle
- Fibre type material: Glass
- Active surface, fibers: Bundle Ø 1.4 mm
- Fibre, bending radius min. 60 mm
- Light cable, construction: Fibre bundle in metal spiral
- Length B min, without bend: 15.00 mm
- Traction load max. at 20 °C: 80 N
- Ambient temperature Connection range: -5...55 °C.
- Ambient temperature max. 250 °C static, 170 °C dynamic
- Product type
Fibre optics
- Type
BFO003H
- Connector
M18
- Cable length
0.50 m
IP50
- Content
1 pc(s)
- Length
14.00 mm
- Height
20.00 mm
- (Ø)
8 mm
- Enclosure material
Stainless steel
- Material
Steel (stainless)
Documents & Downloads
Datasheet
Datasheet 3418907 BALLUFF BFO003H Fibre optics BFO003H 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418907 BALLUFF BFO003H Fibre optics BFO003H 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Execution=Ø 2, 90°-optics, use=for fiber base devices BFB, dimension=Ø 8 x 14 mm, fiber type material=glass, cable length L=0.50 m, sheath material=steel stainless steel, range=10 mm, Ambient temperature=-20...250 °C, material=stainless steel, active surface, fibers=bundle Ø 1.4 mm, active surface, fiber arrangement=segmented bundle, protection class=IP50
