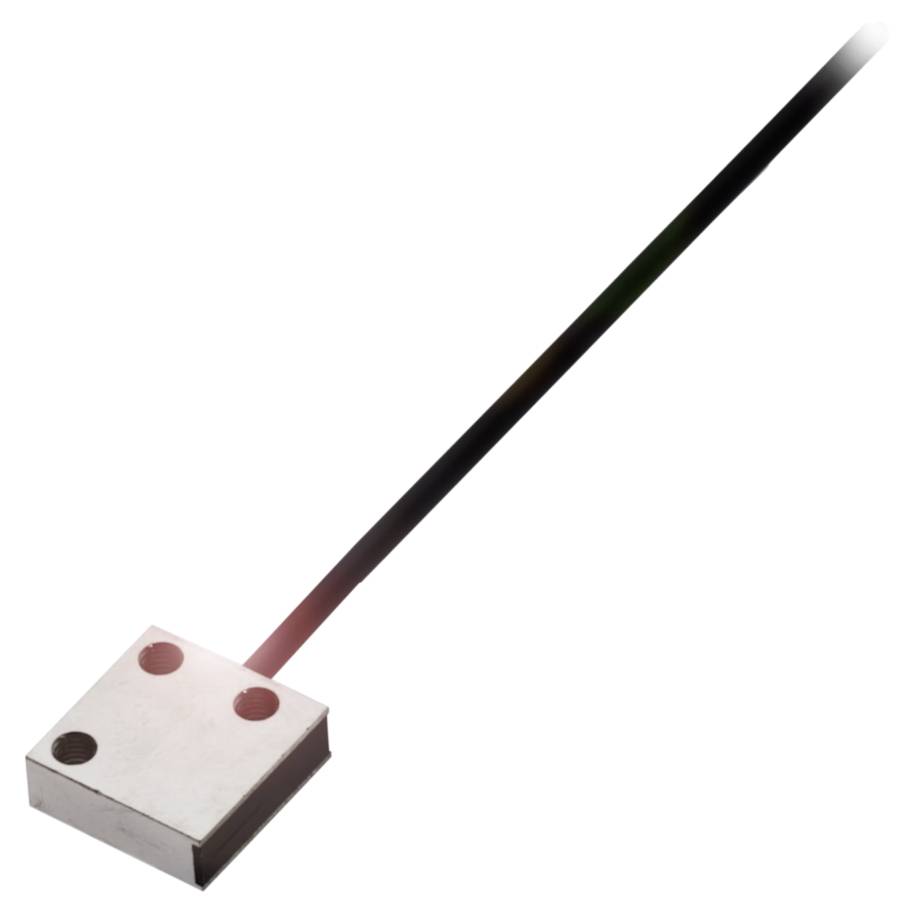

Image similar
BALLUFF BFO005K Fibre optics BFO005K 1 pc(s)
Product type
Fibre optics
Type
BFO005K
Connector
Cable
Cable length
2 m
IP rating
IP65
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO005K plastic and fiber optic fibers for fiber base devices
- Usage: For fiber base devices BFB
- Execution: 5x15, 90 ° light grid
- Cable length 2 m
- Reference basic device: BFB 75K-001.
- Fibre type material: PMMA
Technical specifications
- Main features:Active surface, fiber arrangement: Line
- Active surface, fibers: Ø 0.25 mm (16x)
- Execution: 5x15, 90 ° light grid
- Fibre type material: PMMA
- Cable length 2 m
- Sheath material:PE
- Material nickel-plated brass
- Reference basic device: BFB 75K-001.
- Range: 400 mm
- Protection system: IP65
- Ambient temperature -55...70 °C
- Usage: For fiber base devices BFB
- Additional features:
- Execution: 5x15, 90 ° light grid
- Usage: For fiber base devices BFB
- Dimensions 5 x 15 x 15 mm
- Mounting: M3 screw
- Rated switching distance Sn: 400 mm
- Real switching distance Sr:400 mm
- Connection type: Cable, 2.00 m, PE
- Cable diameter D 2.20 mm
- Cable length 2 m
- Housing material: Nickel-plated brass
- Sheath material:PE
- Protection system: IP65
- Ambient temperature -55...70 °C
- Range: 400 mm
- Surface protection: Nickel-plated
- Reference basic device: BFB 75K-001.
- Cable, Note: Can be cut to size
- Active surface, fiber arrangement: Line
- Fibre type material: PMMA
- Active surface, fibers: Ø 0.25 mm (16x)
- Fibre, bending radius min. 25 mm
- Optical cable, structure: Fibre bundle in plastic jacket
- Length B min, without bend: 20.00 mm
- Ambient temperature connection range: According to light conductor device
- Tensile load max. at 20 °C ambient conditions: 6 N (max. 3s)
- Product type
Fibre optics
- Type
BFO005K
- Connector
Cable
- Cable length
2 m
IP65
- Content
1 pc(s)
- Length
15.00 mm
- Width
5.00 mm
- Height
15.00 mm
- Enclosure material
Brass (Ni-plated)
- Material
PE
Brass (Ni-plated)
Documents & Downloads
Datasheet
Datasheet 3418732 BALLUFF BFO005K Fibre optics BFO005K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418732 BALLUFF BFO005K Fibre optics BFO005K 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Design=5x15, 90° light grid, use=For fiber base unit BFB, reference base unit=BFB 75K-001-., fiber type material=PMMA, Cable length L=2.00 m, sheath material=PE, range=400 mm, ambient temperature=-55...70 °C, material=brass nickel-plated, Active surface, fibers=Ø 0.25 mm (16x), active surface, fiber arrangement=line, protection class=IP65
