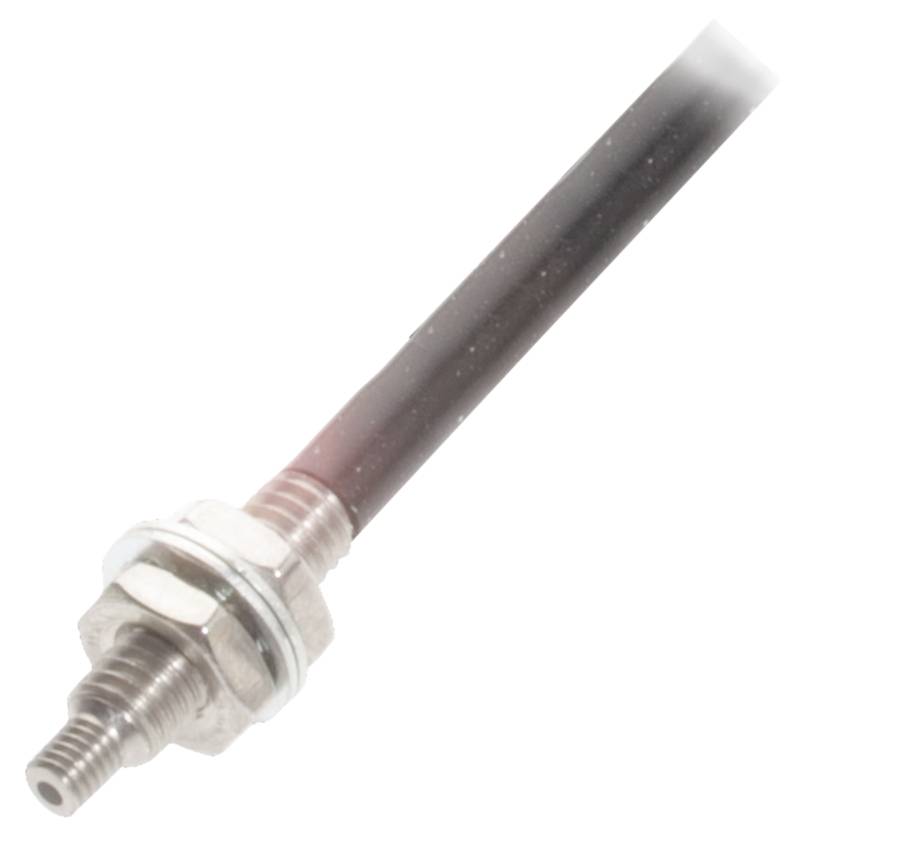

Image similar
BALLUFF BFO005W Fibre optics BFO005W 1 pc(s)
Product type
Fibre optics
Type
BFO005W
Connector
Cable
Cable length
2 m
IP rating
IP65
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO005W Plastic and Fiber Optics for Fiber Base Devices
- Usage: For fiber base devices BFB
- Design: M4, standard, high temperature
- Cable length 2 m
- Reference basic device: BFB 75K-001.
- Fibre type material: PC
Technical specifications
- Main features:Active surface, fiber arrangement: Single fiber
- Active surface, fibers: Ø 1.0 mm
- Design: M4, standard, high temperature
- Fibre type material: PC
- Cable length 2 m
- Jacket material: PE, cross-linked
- Material: Stainless steel (1.4305)
- Reference basic device: BFB 75K-001.
- Range: 600 mm
- Protection system: IP65
- Ambient temperature -55...115 °C
- Usage: For fiber base devices BFB
- Additional features:
- Design: M4, standard, high temperature
- Usage: For fiber base devices BFB
- Dimensions: Ø 4 x 20 mm
- Mounting: Nut M4
- Rated switching distance Sn: 600 mm
- Real switching distance Sr:600 mm
- Connection type: Cable, 2.00 m, PE
- Cable diameter D 2.20 mm
- Cable length 2 m
- Housing material: Stainless steel (1.4305)
- Jacket material: PE, cross-linked
- Protection system: IP65
- Ambient temperature -55...115 °C
- Range: 600 mm
- Reference basic device: BFB 75K-001.
- Cable, Note: Can be cut to size
- Active surface, fiber arrangement: Single fiber
- Fibre type material: PC
- Active surface, fibers: Ø 1.0 mm
- Fibre, bending radius min. 25 mm
- Optical cable, structure: Single fiber in plastic sheath
- Length B min, without bend: 20.00 mm
- Ambient temperature connection range: According to light conductor device
- Tensile load max. at 20 °C ambient conditions: 6 N (max. 3s)
- Product type
Fibre optics
- Type
BFO005W
- Connector
Cable
- Cable length
2 m
IP65
- Content
1 pc(s)
- Length
20.00 mm
- (Ø)
4 mm
- Enclosure material
Stainless steel
- Material
Stainless steel
PE
Documents & Downloads
Datasheet
Datasheet 3418825 BALLUFF BFO005W Fibre optics BFO005W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418825 BALLUFF BFO005W Fibre optics BFO005W 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Design=M4, standard, high temperature, use=For fiber base unit BFB, reference basic unit=BFB 75K-001-., Fibre type material=PC, cable length L=2.00 m, sheath material=PE, cross-linked, range=600 mm, Ambient temperature=-55...115 °C, material=stainless steel (1.4305), active surface, fibers=Ø 1.0 mm, active surface, Fibre arrangement=single fiber, protection class=IP65
