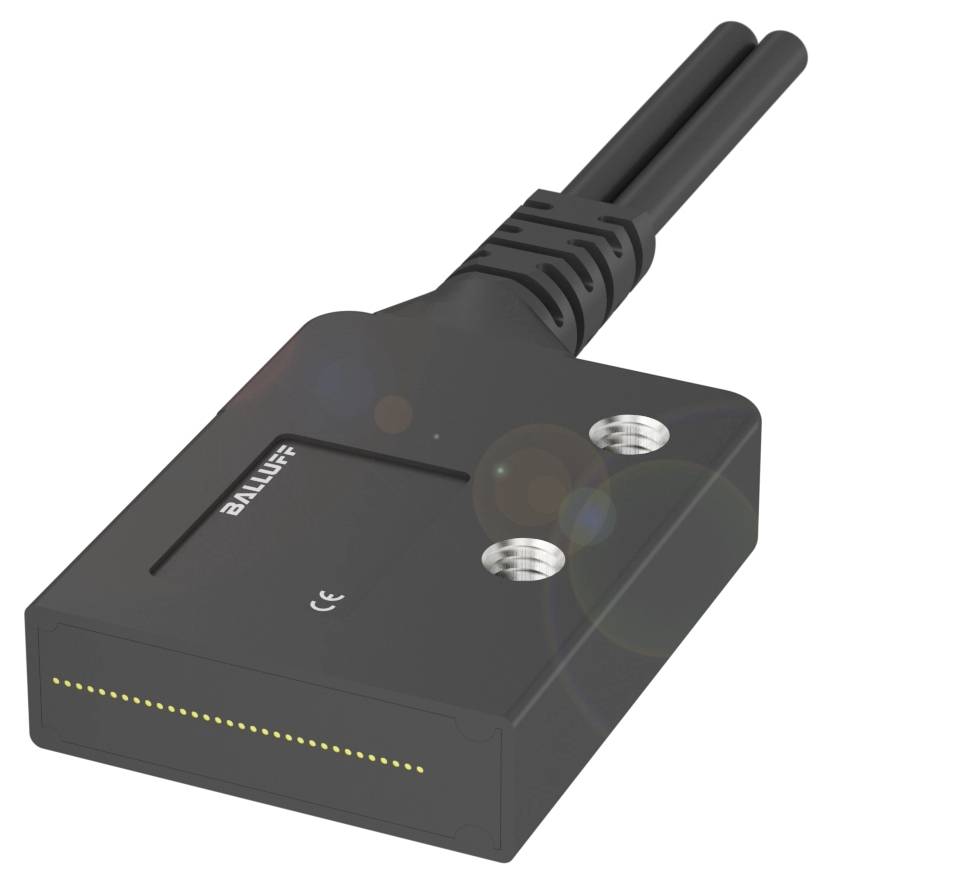

BALLUFF BFO005Z Fibre optics BFO005Z 1 pc(s)
Product type
Fibre optics
Type
BFO005Z
Connector
Cable
Cable length
2 m
IP rating
IP65
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO005Z plastic and fiber optic cables for fiber base equipment
- Usage: For fiber base devices BFB
- 6x19, light grid design
- Cable length 2 m
- Reference basic device: BFB 75K-001.
- Fibre type material: PMMA
Technical specifications
- Main features:Active surface, fiber arrangement: Line
- Active surface, fibers: Ø 0.25 mm (32x)
- 6x19, light grid design
- Fibre type material: PMMA
- Cable length 2 m
- Sheath material:PE
- Material nickel-plated brass
- Reference basic device: BFB 75K-001.
- Range: 100 mm
- Protection system: IP65
- Ambient temperature -55...70 °C
- Usage: For fiber base devices BFB
- Additional features:
- 6x19, light grid design
- Usage: For fiber base devices BFB
- Dimensions 6 x 19 x 25 mm
- Mounting: M3 screw
- Rated switching distance Sn: 100 mm
- Real switching distance Sr:100 mm
- Connection type: Cable, 2.00 m, PE
- Cable diameter D 2.20 mm
- Cable length 2 m
- Housing material: Nickel-plated brass
- Sheath material:PE
- Protection system: IP65
- Ambient temperature -55...70 °C
- Range: 100 mm
- Surface protection: Nickel-plated
- Reference basic device: BFB 75K-001.
- Cable, Note: Can be cut to size
- Active surface, fiber arrangement: Line
- Fibre type material: PMMA
- Active surface, fibers: Ø 0.25 mm (32x)
- Fibre, bending radius min. 25 mm
- Optical cable, structure: Fibre bundle in plastic jacket
- Length B min, without bend: 20.00 mm
- Ambient temperature connection range: According to light conductor device
- Tensile load max. at 20 °C ambient conditions: 6 N (max. 3s)
- Product type
Fibre optics
- Type
BFO005Z
- Connector
Cable
- Cable length
2 m
IP65
- Content
1 pc(s)
- Length
25.00 mm
- Width
6.00 mm
- Height
19.00 mm
- Enclosure material
Brass (Ni-plated)
- Material
PE
Brass (Ni-plated)
Documents & Downloads
Datasheet
Datasheet 3418853 BALLUFF BFO005Z Fibre optics BFO005Z 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418853 BALLUFF BFO005Z Fibre optics BFO005Z 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Design=6x19, light grid, use=For fiber base unit BFB, reference base unit=BFB 75K-001-., fiber type material=PMMA, Cable length L=2.00 m, sheath material=PE, range=100 mm, ambient temperature=-55...70 °C, material=brass nickel-plated, Active surface, fibers=Ø 0.25 mm (32x), active surface, fiber arrangement=line, protection class=IP65
