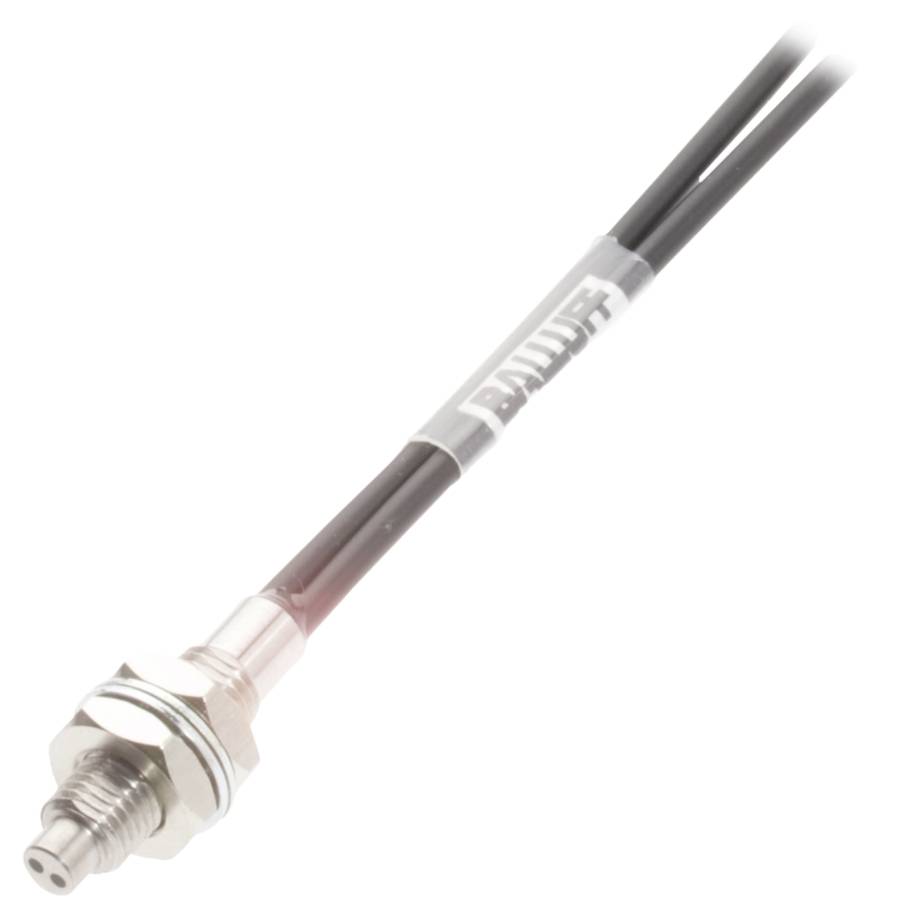

Image similar
BALLUFF BFO0063 Fibre optics BFO0063 1 pc(s)
Product type
Fibre optics
Type
BFO0063
Connector
Cable
Cable length
2 m
IP rating
IP65
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO0063 Plastic and Fiber Optics for Fiber Base Devices
- Usage: For fiber base devices BFB
- Design: M6, standard, flexible cable
- Cable length 2 m
- Reference basic device: BFB 75K-001.
- Fibre type material: PMMA
Technical specifications
- Main features:Active surface, fiber arrangement: Side by side
- Active surface, fibers: Ø 1.0 mm (2x)
- Design: M6, standard, flexible cable
- Fibre type material: PMMA
- Cable length 2 m
- Sheath material:PE
- Material: Stainless steel (1.4305)
- Reference basic device: BFB 75K-001.
- Protection system: IP65
- Ambient temperature -40...70 °C
- Usage: For fiber base devices BFB
- Additional features:
- Design: M6, standard, flexible cable
- Usage: For fiber base devices BFB
- Dimensions: Ø 6 x 23 mm
- Mounting: Nut M6x0.75
- Connection: Ø 2.2 mm
- Rated switching distance Sn: 120 mm
- Real switching distance Sr:120 mm
- Connection type: Cable, 2.00 m, PE
- Cable diameter D 2.20 mm
- Cable length 2 m
- Housing material: Stainless steel (1.4305)
- Sheath material:PE
- Protection system: IP65
- Ambient temperature -40...70 °C
- Reference basic device: BFB 75K-001.
- Cable, Note: Can be cut to size
- Active surface, fiber arrangement: Side by side
- Fibre type material: PMMA
- Active surface, fibers: Ø 1.0 mm (2x)
- Fibre, bending radius min. 2 mm
- Optical cable, structure: Single fiber in plastic sheath
- Length B min, without bend: 10.00 mm
- Ambient temperature connection range: According to light conductor device
- Tensile load max. at 20 °C ambient conditions: 6 N (max. 3s)
- Product type
Fibre optics
- Type
BFO0063
- Connector
Cable
- Cable length
2 m
IP65
- Content
1 pc(s)
- Length
23.00 mm
- (Ø)
6 mm
- Enclosure material
Stainless steel
- Material
Stainless steel
PE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418880 BALLUFF BFO0063 Fibre optics BFO0063 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418880 BALLUFF BFO0063 Fibre optics BFO0063 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Design=M6, standard, flexible cable, use=For fiber base unit BFB, reference base unit=BFB 75K-001-., Fibre type material=PMMA, cable length L=2.00 m, sheathing material=PE, range=120 mm, ambient temperature=-40...70 °C, Material = stainless steel (1.4305), active surface, fibers = Ø 1.0 mm (2x), active surface, fiber arrangement = side-by-side, protection class = IP65
