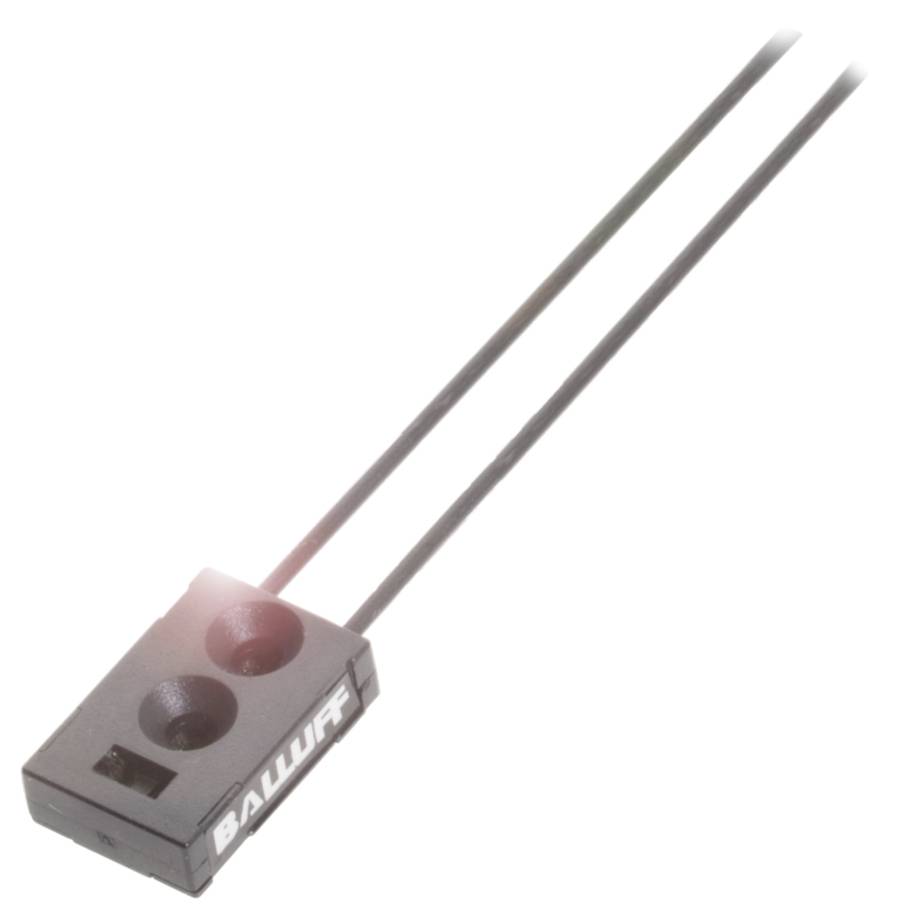

Image similar
BALLUFF BFO00AR Fibre optics BFO00AR 1 pc(s)
Product type
Fibre optics
Type
BFO00AR
Cable length
2 m
IP rating
IP65
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BFO00AR plastic and glass fiber for fiber base equipment
- Usage: For fiber base devices BFB
- Design: 13x19.7, 90°-Optic
- Cable length 2 m
- Reference basic device: BFB 75K-001.
- Fibre type material: PMMA
Technical specifications
- Main features:Active surface, fiber arrangement: At distance
- Active surface, fibers: Ø 0.5 mm (2x)
- Design: 13x19.7, 90°-Optic
- Fibre type material: PMMA
- Cable length 2 m
- Sheath material:PE
- Material: plastic
- Reference basic device: BFB 75K-001.
- Protection system: IP65
- Ambient temperature -55...70 °C
- Usage: For fiber base devices BFB
- Additional features:
- Design: 13x19.7, 90°-Optic
- Usage: For fiber base devices BFB
- Dimensions 13 x 5 mm
- Mounting: M3 screw
- Connection: Ø 2.2 mm
- Rated switching distance Sn: 6 mm
- Real switching distance Sr:6 mm
- Connection type: Adapter sleeve, 2.00 m, PE
- Cable diameter D 1.30 mm
- Cable length 2 m
- Housing material: Plastic
- Sheath material:PE
- Protection system: IP65
- Ambient temperature -55...70 °C
- Reference basic device: BFB 75K-001.
- Cable, Note: Can be cut to size
- Active surface, fiber arrangement: At distance
- Fibre type material: PMMA
- Active surface, fibers: Ø 0.5 mm (2x)
- Fibre, bending radius min. 25 mm
- Optical cable, structure: Single fiber in plastic sheath
- Length B min, without bend: 15.00 mm
- Ambient temperature connection range: According to light conductor device
- Tensile load max. at 20 °C ambient conditions: 6 N (max. 3s)
- Product type
Fibre optics
- Type
BFO00AR
- Cable length
2 m
IP65
- Content
1 pc(s)
- Length
5.00 mm
- Width
13 mm
- Enclosure material
Plastic
- Material
Plastic
PE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418722 BALLUFF BFO00AR Fibre optics BFO00AR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418722 BALLUFF BFO00AR Fibre optics BFO00AR 1 pc(s)
Description
Our wide range of plastic fiber optics can be used especially when there are no high demands on robustness, ambient temperature and chemical resistance. However, we also have high temperature resistant fibers in our range. We also offer non-slip, temperature-resistant and chemically resistant fiber optics. Execution=13x19.7, 90° optics, use=For BFB fiber base equipment, reference base unit=BFB 75K-001-., fiber type material=PMMA, Cable length L=2.00 m, sheath material=PE, range=6 mm, ambient temperature=-55...70 °C, material=plastic, Active surface, fibers=Ø 0.5 mm (2x), active surface, fiber arrangement=at distance, protection class=IP65
