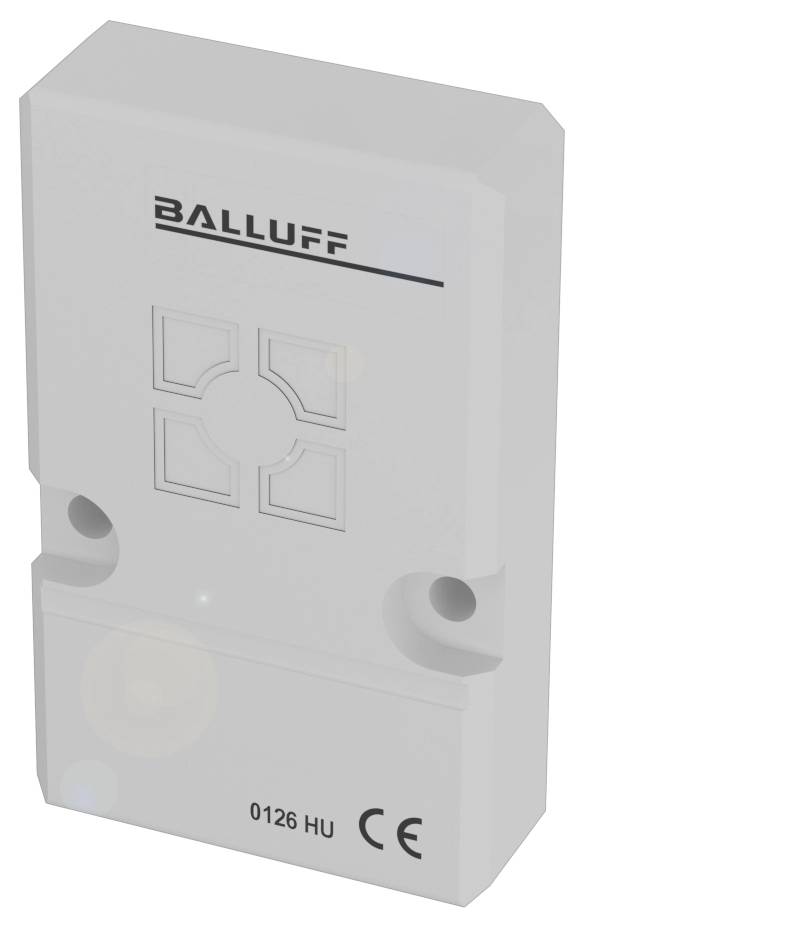

Image similar
BALLUFF BIS000K RFID-Tag BIS C-108-32/L 1 pc(s)
Product type
RFID-Tag
Type
BIS C-108-32/L
IP rating
IP68
Content
1 pc(s)
Length
52 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS000K Rectangular tags for the LF range (70/455 kHz)
- Dimensions 32 x 11 x 52 mm
- Product group: LF (70/455 kHz)
- Antenna shape: Round
- Memory type: EEPROM
- User data, read/write: 8192 bytes
Technical specifications
- Main features:Dimension 32 x 11 x 52 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- PBT casing material
- Storage temperature: -30...85 °C
- User data, read/write: 8192 bytes
- Product group: LF (70/455 kHz)
- Protection class: IP68
- Memory type: EEPROM
- Ambient temperature -30...70 °C
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Reading time: For 64x8 bit: 0.33 seconds
- Read cycles: Unlimited
- Programming time: For 64x8 bits: 1.1s|for 1x8 bits: 0.45s
- Programming cycles: Unlimited
- 64 × 8-bit memory organization
- User data, read/write: 8192 bytes
- Memory type: EEPROM
- Data retention time/years: ≥ 10
- Product type
RFID-Tag
- Type
BIS C-108-32/L
IP68
- Content
1 pc(s)
- Length
52 mm
- Width
32 mm
- Height
11 mm
- Enclosure material
PBT
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418721 BALLUFF BIS000K RFID-Tag BIS C-108-32/L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418721 BALLUFF BIS000K RFID-Tag BIS C-108-32/L 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Assembly, range can be converted to application-optimized for almost any technical task. BIS C is established as a tool identification standard. Product group=LF (70/455 kHz), dimension=32 x 11 x 52 mm, user data, read/write=8192 bytes, memory type=EEPROM, antenna form=round, flush-mounted=metal (free zone) on metal, storage temperature=-30...85 °C, ambient temperature=-30...70 °C, casing material=PBT, protection class=IP68, Approval/conformity=CecULusWEEE
