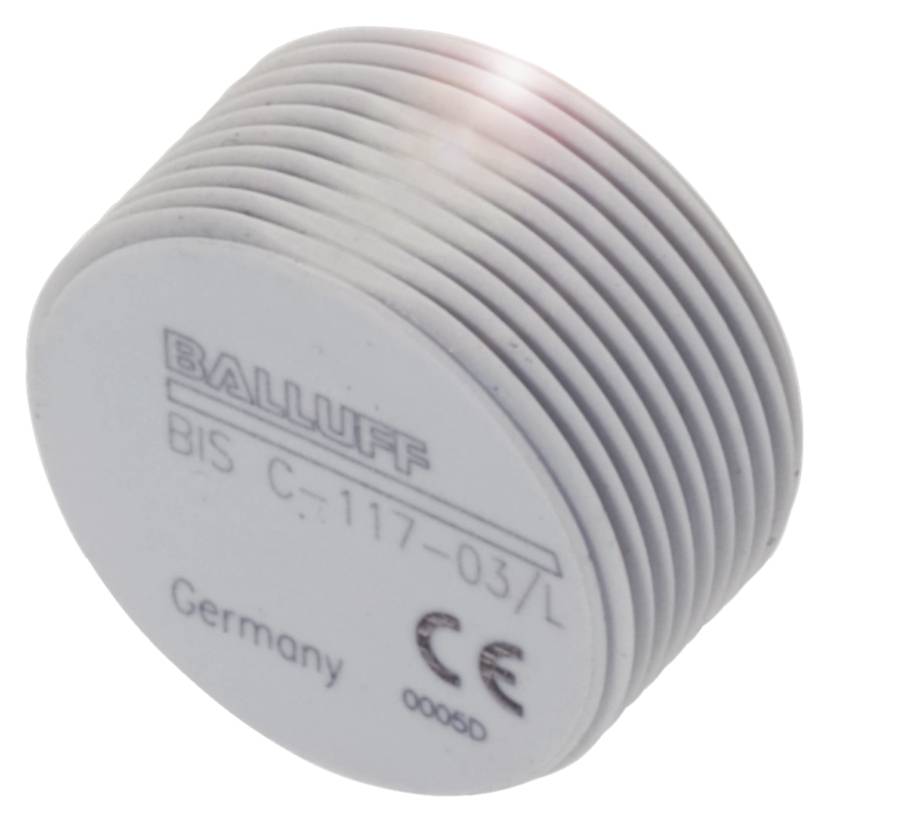

Image similar
BALLUFF BIS000N RFID-Tag BIS C-117-05/L 1 pc(s)
Product type
RFID-Tag
Type
BIS C-117-05/L
IP rating
IP68
Content
1 pc(s)
Length
16 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS000N Round tags for the LF range (70/455 kHz)
- Dimensions: Ø 30 x 16 mm
- Product group: LF (70/455 kHz)
- Antenna shape: Round
- Memory type: EEPROM
- User data, read/write: 1023 bytes
Technical specifications
- Main features:Dimensions: Ø 30 x 16 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- PBT casing material
- Storage temperature: -30...85 °C
- User data, read/write: 1023 bytes
- Product group: LF (70/455 kHz)
- Protection class: IP68
- Memory type: EEPROM
- Ambient temperature -30...70 °C
- Additional features:
- Functional principle: Data carrier
- Dimensions: Ø 30 x 16 mm
- MTTF (40 °C) 740 a
- Size M30x1.5
- Installation: Metal-free (free zone)
- PBT casing material
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class: IP68
- Ambient temperature -30...70 °C
- Application weight 14.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -30...85 °C
- Reading time: For 32x8 bit:0.19 sec.
- Read cycles: Unlimited
- Programming time: For 1x8 bit: 0.3s|for 32x8 bit: 0.6s
- Programming cycles: Up to 70 °C: 500,000|to 30 °C: 1,000,000
- 32 × 8-bit memory organization
- User data, read/write: 1023 bytes
- Memory type: EEPROM
- Product type
RFID-Tag
- Type
BIS C-117-05/L
IP68
- Content
1 pc(s)
- Length
16 mm
- (Ø)
30 mm
- Enclosure material
PBT
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418767 BALLUFF BIS000N RFID-Tag BIS C-117-05/L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418767 BALLUFF BIS000N RFID-Tag BIS C-117-05/L 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Assembly, range can be converted to application-optimized for almost any technical task. BIS C is established as a tool identification standard. Product group=LF (70/455 kHz), dimension=Ø 30 x 16 mm, user data, read/write=1023 bytes, memory type=EEPROM, antenna form=round, Mounting = metal-free (free zone), storage temperature=-30...85 °C, ambient temperature=-30...70 °C, casing material=PBT, protection class=IP68, Approval/conformity=CecULusWEEE
