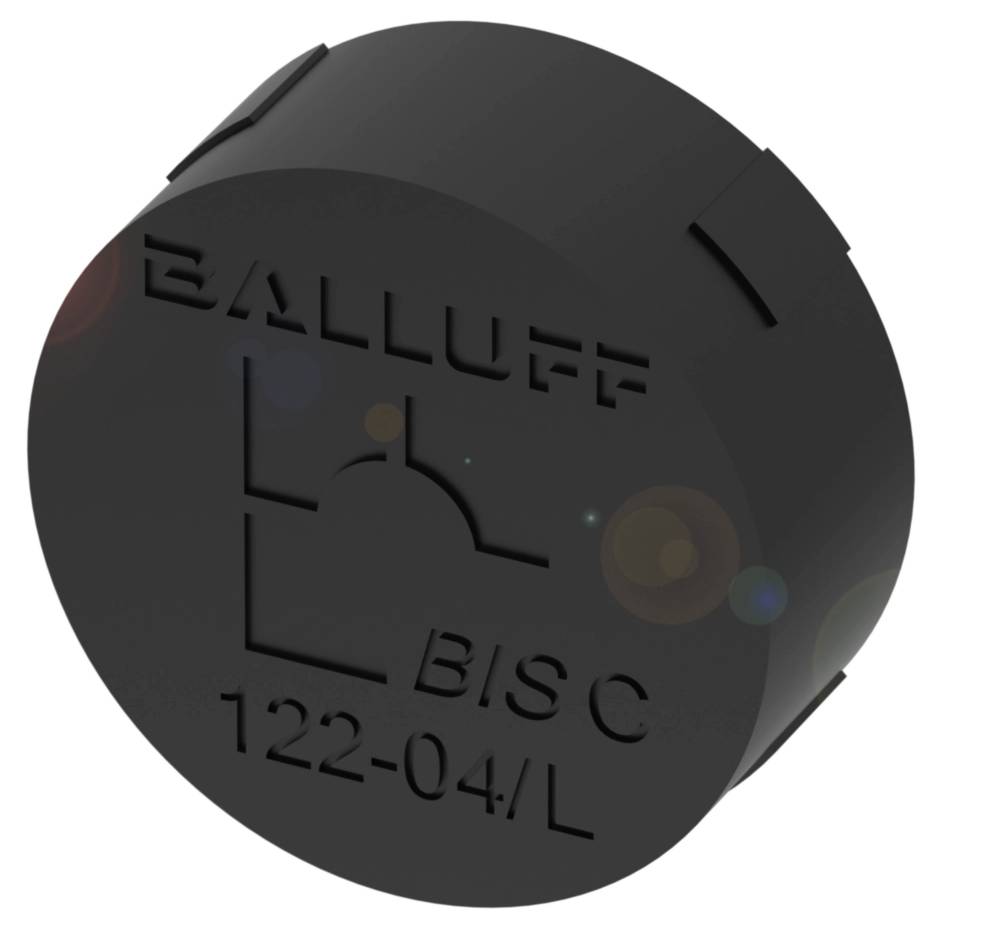

Image similar
BALLUFF BIS0011 RFID-Tag BIS C-122-04/L 1 pc(s)
Product type
RFID-Tag
Type
BIS C-122-04/L
IP rating
IP68
Content
1 pc(s)
Length
4.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS0011 Round tags for the LF range (70/455 kHz)
- Dimensions: Ø 10 x 4.5 mm
- Product group: LF (70/455 kHz)
- Antenna shape: Round
- Memory type: EEPROM
- User data, read/write: 511 bytes
Technical specifications
- Main features:Dimensions: Ø 10 x 4.5 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- Housing material: Epoxy-resin fiberglass
- Storage temperature: -30...85 °C
- User data, read/write: 511 bytes
- Product group: LF (70/455 kHz)
- Protection class: IP68
- Memory type: EEPROM
- Ambient temperature 0...70 °C
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Reading time: For 32x8 bit:0.19 sec.
- Read cycles: Unlimited
- Programming time: For 1x8 bit: 0.3s|for 32x8 bit: 0.6s
- Programming cycles: Up to 30 °C: 1,000,000|to 70 °C: 500,000
- 32 × 8-bit memory organization
- User data, read/write: 511 bytes
- Memory type: EEPROM
- Product type
RFID-Tag
- Type
BIS C-122-04/L
IP68
- Content
1 pc(s)
- Length
4.5 mm
- (Ø)
10 mm
- Enclosure material
Epoxy resin
Fibreglass
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418793 BALLUFF BIS0011 RFID-Tag BIS C-122-04/L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418793 BALLUFF BIS0011 RFID-Tag BIS C-122-04/L 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Assembly, range can be converted to application-optimized for almost any technical task. BIS C is established as a tool identification standard. Product group=LF (70/455 kHz), dimension=Ø 10 x 4.5 mm, user data, read/write=511 bytes, memory type=EEPROM, antenna form=round, installation=metal free zone in metal flush-mounted, storage temperature=-30...85 °C, ambient temperature=0...70 °C, casing material=epoxy-resin glass fiber, protection class=IP68, Approval/conformity=CecULusWEEE
