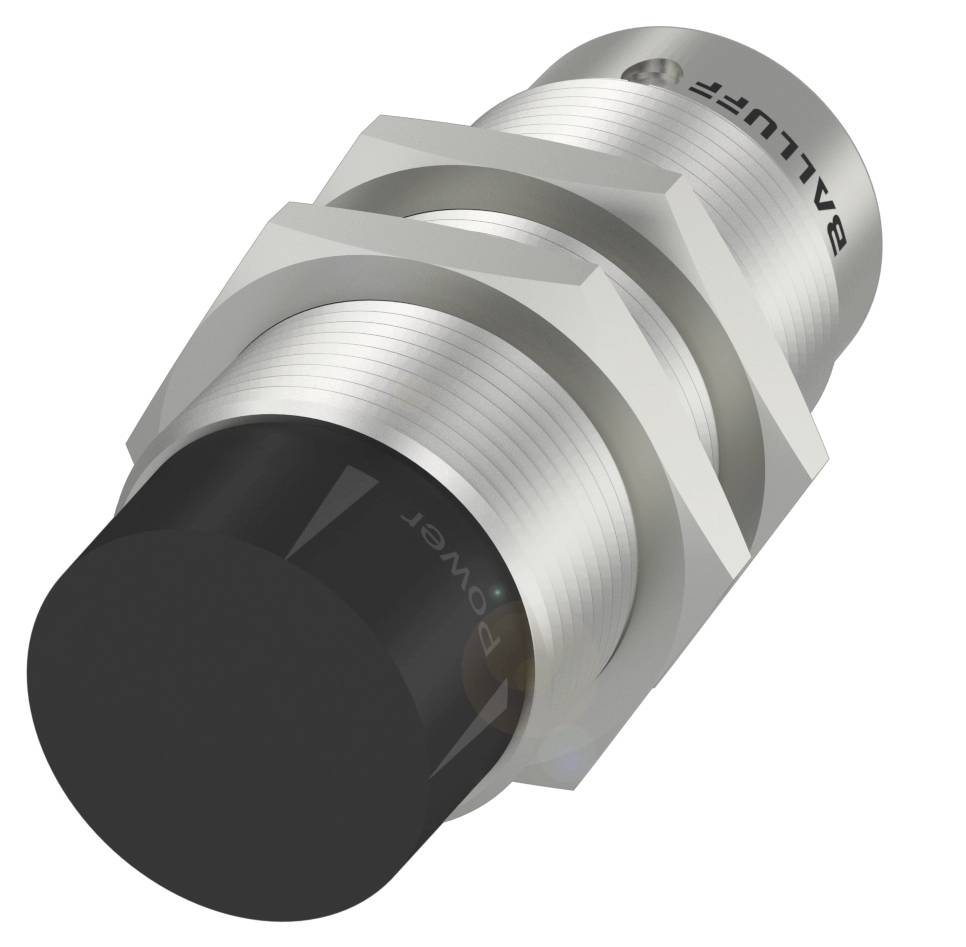

Image similar
BALLUFF BIS0054 Reader BIS0054 1 pc(s)
Product type
Reader
Type
BIS0054
Operating voltage
24
Min. operating voltage
18 V
Max. operating voltage
30 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS0054 RFID HF-reader (13.56 MHz)
- Dimensions: Ø 30 x 83 mm
- Installation: Metal-free (free zone)
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- Supported media types: DIN ISO 14443
- DIN ISO 15693
Technical specifications
- Main features:Dimensions: Ø 30 x 83 mm
- Connection: Plug, 8-pin
- Antenna shape: Round
- Installation: Metal-free (free zone)
- Housing material: Brass, nickel-plated brass nuts, nickel-plated
- Product group: HF (13.56 MHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Supported media types: DIN ISO 14443
- DIN ISO 15693
- Additional features:
- Functional principle: Write/read head
- Dimensions: Ø 30 x 83 mm
- Function display: LED yellow|TP (day present)|LED green|Power (ON)
- MTTF (40 °C) 242 a
- Size M30x1.5
- Installation: Metal-free (free zone)
- Housing material: Brass, nuts brass|nickel-plated, nickel-plated
- Housing material, surface protection: Nickel-plated
- Application weight 100.00 g
- Antenna shape: Round
- Supported media types: DIN ISO 14443|DIN ISO 15693
- Connection Functional safety: Plug, 8-pin
- Product type
Reader
- Type
BIS0054
- Operating voltage
24
- Min. operating voltage
18 V
- Max. operating voltage
30 V
- Operating voltage
18 - 30 V
- Operating current
24 mA
- Connector
Plug
IP67
- Content
1 pc(s)
- Length
83.00 mm
- Width
135 mm
- Height
75 mm
- (Ø)
30 mm
- Enclosure material
Brass
- Weight
680 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418552 BALLUFF BIS0054 Reader BIS0054 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418552 BALLUFF BIS0054 Reader BIS0054 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard in accordance with DIN ISO 15693 and 14443. Read/write heads are the link between data carrier and evaluation unit. UP TO M read/write heads offer absolute data security. These are available in different designs and dimensions - e.g. as round/rod antenna, so that you can solve various requirements. Product group=HF (13.56 MHz), dimension=Ø 30 x 83 mm, installation=metal-free (free zone), antenna form=round, supported data carrier types=DIN ISO 14443DIN ISO 15693, connection=plug, 8-pole, housing material=brass, nuts nickel-plated brass, Ambient temperature=0...70 °C, protection=IP67, approval/conformity=CEFCC part 15IC RSS-210cULusWEEE
