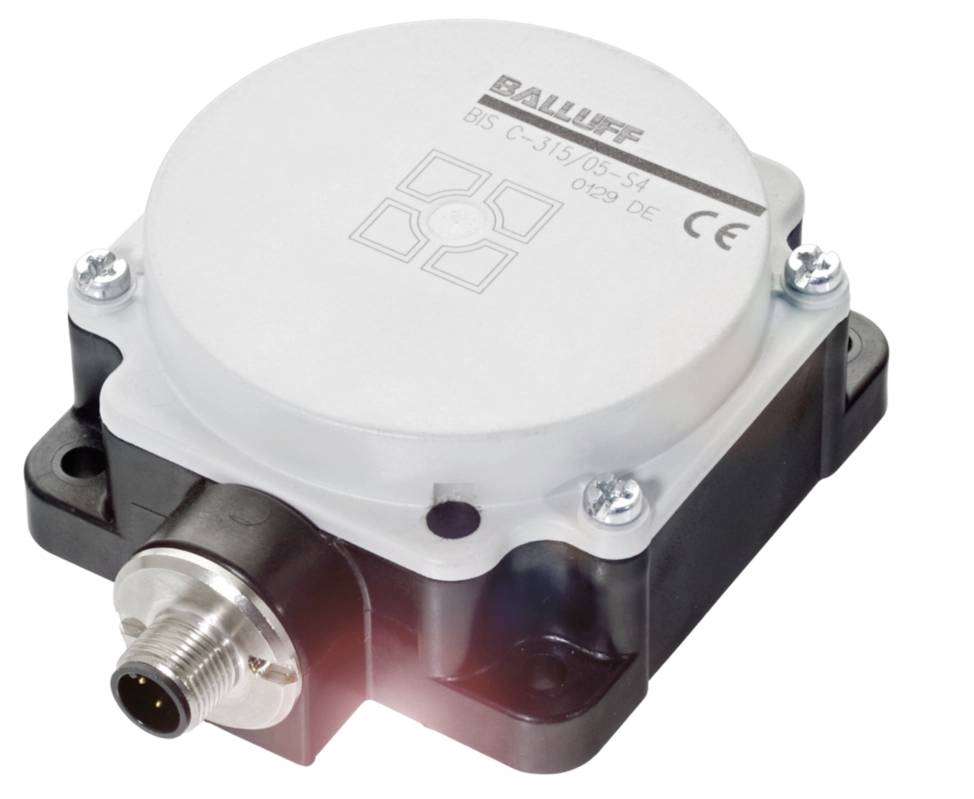

Image similar
BALLUFF BIS006Z RFID reader BIS C-315/10-S4 1 pc(s)
Product type
RFID reader
Type
BIS C-315/10-S4
Connector
Plug
IP rating
IP67
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS006Z Reader for the LF range (70/455 kHz)
- Connection M12x1 plug
- Dimensions 80 x 40 x 80 mm
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- Product group: LF (70/455 kHz)
- Antenna shape: Round
Technical specifications
- Main features:Dimension 80 x 40 x 80 mm
- Connection M12x1 plug
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- PBT casing material
- Storage temperature: -20...85 °C
- Product group: LF (70/455 kHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Functional principle: Write/read head
- Dimensions 80 x 40 x 80 mm
- MTTF (40 °C) 15080 a
- Mounting: Metal-free (free zone)|on metal|flush in metal
- PBT casing material
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Application weight 410.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Connection Functional safety: M12x1 plug
- Product type
RFID reader
- Type
BIS C-315/10-S4
- Connector
Plug
IP67
- Content
1 pc(s)
- Length
80 mm
- Width
40 mm
- Height
80 mm
- Enclosure material
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418754 BALLUFF BIS006Z RFID reader BIS C-315/10-S4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418754 BALLUFF BIS006Z RFID reader BIS C-315/10-S4 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Read/write heads are the link between data carrier and evaluation unit. These are available in different designs, dimensions - e.g. as round/rod antenna. BIS C is established as a standard for tool identification. It is flush-mounted, even directly onto metal. Product group=LF (70/455 kHz), dimension=80 x 40 x 80 mm, installation=metal-free (free zone) on metal flush in metal, antenna form=round, connection=M12x1 plug, housing material=PBT, storage temperature=-20...85 °C, Ambient temperature=0...70 °C, protection class=IP67, approval/conformity=CecULusWEEE
