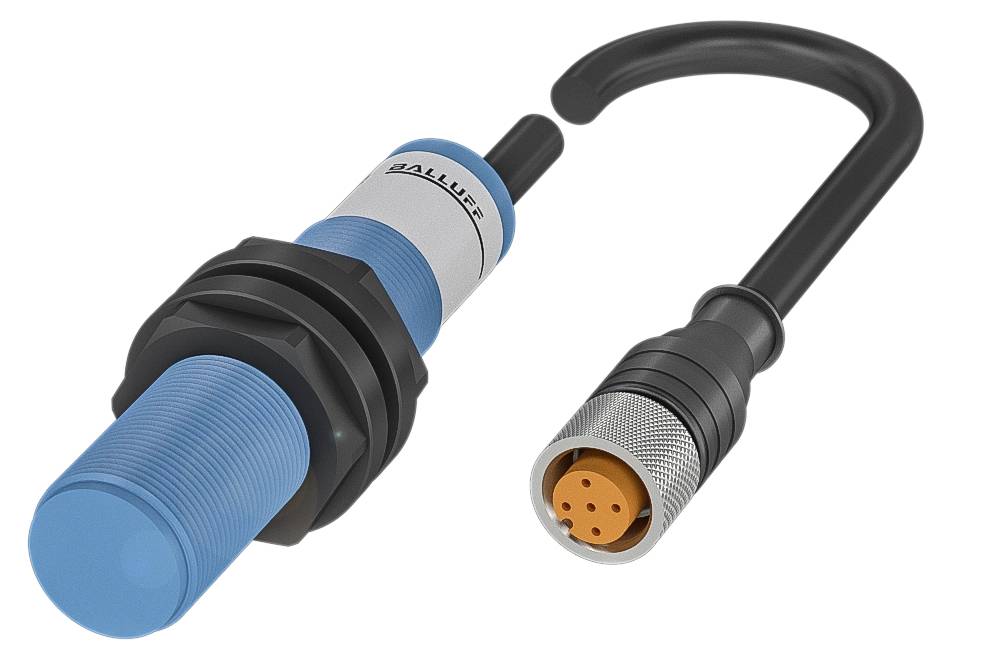

Image similar
BALLUFF BIS0077 RFID reader BIS C-319-PU1-01 1 pc(s)
Product type
RFID reader
Type
BIS C-319-PU1-01
Connector
Socket
Cable length
1 m
IP rating
IP67
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS0077 Reader for the LF range (70/455 kHz)
- M12x1 socket, 1.00 m, PU
- Dimensions: Ø 18 x 80 mm
- Installation: Metal-free (free zone)
- Product group: LF (70/455 kHz)
- Antenna shape: Round
Technical specifications
- Main features:Dimensions: Ø 18 x 80 mm
- M12x1 socket, 1.00 m, PU
- Antenna shape: Round
- Installation: Metal-free (free zone)
- Housing material: PBT, blue, PA 6.6 nuts, black
- Storage temperature: -20...85 °C
- Product group: LF (70/455 kHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Functional principle: Write/read head
- Dimensions: Ø 18 x 80 mm
- M12x1 socket
- MTTF (40 °C) 15080 a
- Size M18x1
- Installation: Metal-free (free zone)
- Connection type 1.00 m, PU
- Cable diameter D 5.40 mm
- Housing material: PBT, blue, PA 6.6 nuts, black
- Casing material PU
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 2 MIO.
- Cable temperature, drag chain -25...60 °C.
- Cable temperature, fixed installation: -50...80 °C.
- Application weight 197.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Cable length L Functional safety: 1 m, suitable for drag-chain
- Product type
RFID reader
- Type
BIS C-319-PU1-01
- Connector
Socket
- Cable length
1 m
IP67
- Content
1 pc(s)
- Length
80 mm
- (Ø)
18 mm
- Enclosure material
PBT
PA 6.6
- Material
PU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418842 BALLUFF BIS0077 RFID reader BIS C-319-PU1-01 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418842 BALLUFF BIS0077 RFID reader BIS C-319-PU1-01 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Read/write heads are the link between data carrier and evaluation unit. These are available in different designs, dimensions - e.g. as round/rod antenna. BIS C is established as a standard for tool identification. It is flush-mounted, even directly onto metal. Product group=LF (70/455 kHz), dimension=Ø 18 x 80 mm, installation=metal-free (free zone), antenna form=round, connection=M12x1 socket, 1.00 m, PU, casing material=PBT, blue, nuts PA 6.6 black, storage temperature=-20...85 °C, ambient temperature=0...70 °C, protection class=IP67, approval/conformity=CecULusWEEE
