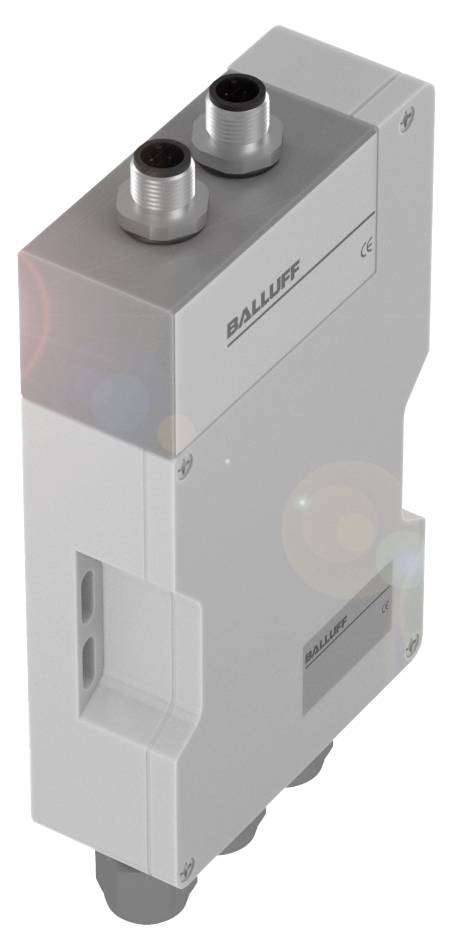

BALLUFF BIS008W Signal processing module BIS008W 1 pc(s)
Product type
Signal processing module
Type
BIS008W
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Operating voltage
19.2 - 28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS008W RFID LF evaluation units (70/455 kHz)
- Operating voltage Ub 19.2...28.8 VDC
- RS422/RS485 interface
- electrically isolated
- Product group: LF (70/455 kHz)
- Supported RFID technologies: LF 70/455 kHz (TO C )
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features: Connection: Terminal strip, 19-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- ABS casing material
- Product group: LF (70/455 kHz)
- RS422/RS485 interface
- electrically isolated
- Protection class IP65, with S/reader
- Ambient temperature 0...60 °C
- Supported RFID technologies: LF 70/455 kHz (TO C )
- Additional features:
- Functional principle: Evaluation unit
- Dimensions 90 x 35 x 145 mm
- Output resistance Ra: 10.0 kOhm to VS
- Operating voltage Ub 19.2...28.8 VDC
- ABS casing material
- Connection Slots: Head 1: Plug, 4-pin|Head 2: Plug, 4-pin
- Application weight 500.00 g
- EN 55011: Gr. 1, class A
- Code tag operating: Yellow LED
- Code tag Present: Yellow LED
- System ready: Green LED
- Input current max. at 24 V: 11 mA
- Remaining ripple max. 10%
- Control input:1 (Optocoupler disconnected)
- Control voltage active: 4…40 V.
- Control voltage inactive: 1.5…-40 V.
- Current consumption max. 400 mA at 24 V DC
- Delay time typ.: 5 ms
- Connection (COM 1): (RS485/power supply/|In/-output): Terminal strip, 19-|pin, wire sizes: 0.14…1 mm²|with wire-end sleeves 0.25…0.34|mm²
- Port 01 connection, note Connection type for all C-3… with jack, 4-pole,|±90° convertible
- Control output: 4 (Optocouplers disconnected)|PNP
- Operating voltage, output Vs: 19.2...28.8 V DC
- Product type
Signal processing module
- Type
BIS008W
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
400 mA
- Connector
Clip
IP65
- Content
1 pc(s)
- Length
145.00 mm
- Width
90.00 mm
- Height
35.00 mm
- Enclosure material
Acrylonitrile butadiene styrene
- Weight
66 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418814 BALLUFF BIS008W Signal processing module BIS008W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418814 BALLUFF BIS008W Signal processing module BIS008W 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = LF (70/455 kHz), interface = RS422/RS485 galvanically isolated, supported RFID technologies = LF 70/455 kHz (TO C), number of connectable S/L heads / antennas = 2, operating voltage Ub = 19.2...28.8 VDC, housing material = ABS, ambient temperature = 0...60 °C, protection type = IP65, with S/reading head, approval/conformity = CE, UKCA, cULus, WEEE, connection = terminal strip, 19-pin
