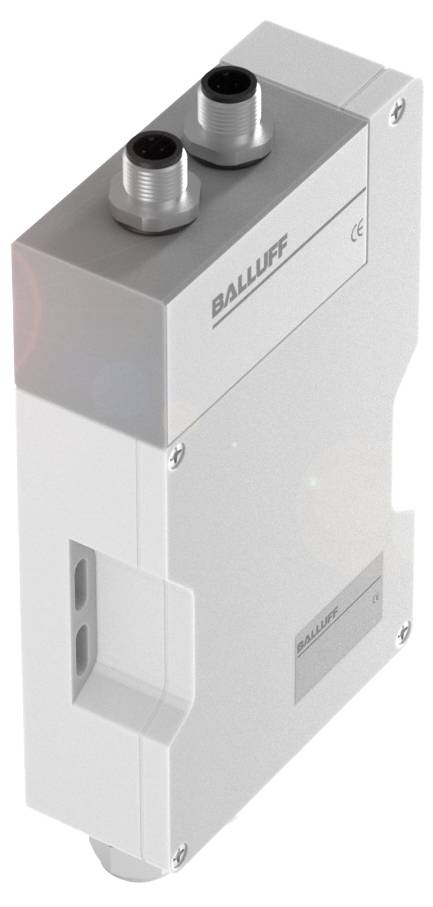

BALLUFF BIS009M Signal processing module BIS009M 1 pc(s)
Product type
Signal processing module
Type
BIS009M
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Operating voltage
19.2 - 28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS009M RFID LF evaluation units (70/455 kHz)
- Operating voltage Ub 19.2...28.8 VDC
- Interface: Profibus DP slave
- electrically isolated
- Product group: LF (70/455 kHz)
- Supported RFID technologies: LF 70/455 kHz (TO C )
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features:Connection: Plug, 5-pin, B-coded
- M12x1 socket, 5 pin, B coded
- Plug, 5-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- ABS casing material
- Product group: LF (70/455 kHz)
- Interface: Profibus DP slave
- electrically isolated
- Protection class IP65, with S/reader
- Ambient temperature 0...60 °C
- Supported RFID technologies: LF 70/455 kHz (TO C )
- Additional features:
- Functional principle: Evaluation unit
- Operating voltage Ub 19.2...28.8 VDC
- MTTF (40 °C) 68 a
- ABS casing material
- Connection Slots: Head 1: Plug, 4-pin|Head 2: Plug, 4-pin
- EN 55011: Gr. 1, class A
- Connection (power supply IN): X1 (power supply/|digital input):|5-pin plug
- Input current max. at 24 V: 11 mA
- Remaining ripple max. 10%
- Control input:1 (Optocoupler disconnected)
- Control voltage active: 4…40 V.
- Control voltage inactive: 1.5…-40 V.
- Current consumption max. 400 mA at 24 V DC
- Delay time typ.: 5 ms
- Connection (COM 1): X2 (Profibus): Plug, 5-pin, B-|coded
- Port 01 connection, note Connection type for all C-3… with jack, 4-pole,|±90° convertible
- Connection (COM 2): X3 (Profibus): M12x1 socket, 5-|pin, B-coded
- Ready/Bus active: LED red/LED green
- Code tag 1 present/operating: LED green/yellow
- Code tag 2 present/operating: LED green/yellow
- Product type
Signal processing module
- Type
BIS009M
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
400 mA
- Connector
Plug
Socket
Plug (5-pin)
IP65
- Content
1 pc(s)
- Length
145.00 mm
- Width
90.00 mm
- Height
35.00 mm
- Enclosure material
Acrylonitrile butadiene styrene
- Weight
125 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418594 BALLUFF BIS009M Signal processing module BIS009M 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418594 BALLUFF BIS009M Signal processing module BIS009M 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = LF (70/455 kHz), interface = Profibus DP slave galvanically isolated, supported RFID technologies = LF 70/455 kHz (TO C), number of connectable S/L heads / antennas = 2, operating voltage Ub = 19.2...28.8 VDC, housing material = ABS, ambient temperature = 0...60 °C, protection class = IP65, with S/reading head, approval/conformity = CE, UKCA, cULus, WEEE, connector = plug, 5-pin, B-coded M12x1 socket, 5-pin, B-coded plug, 5-pin
