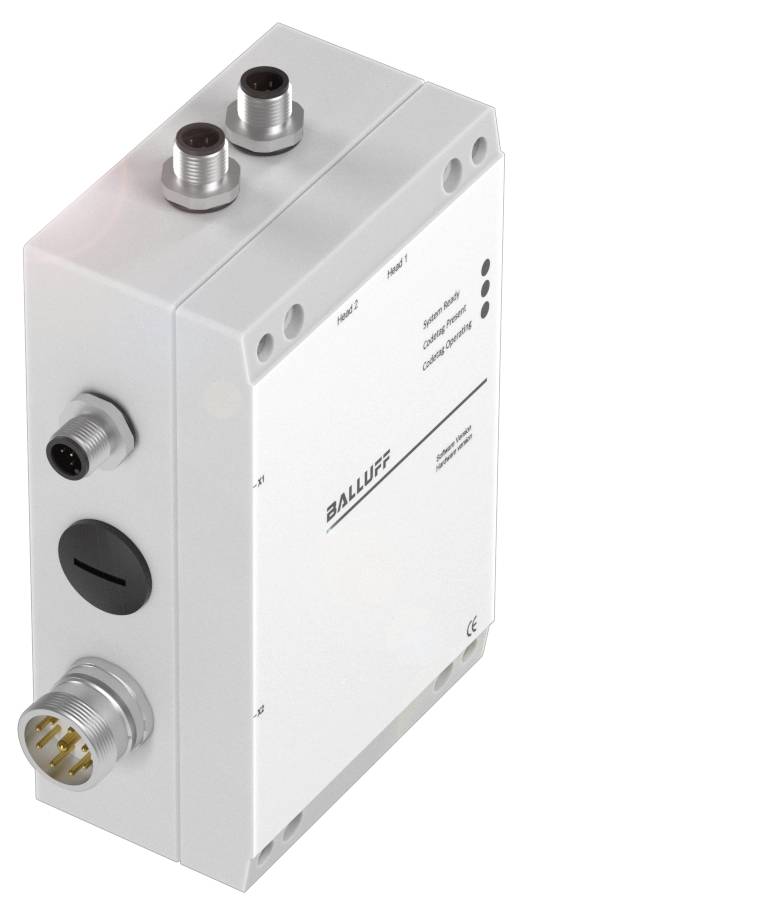

BALLUFF BIS00AZ Signal processing module BIS00AZ 1 pc(s)
Product type
Signal processing module
Type
BIS00AZ
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Operating voltage
19.2 - 28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00AZ RFID LF evaluation units (70/455 kHz)
- Operating voltage Ub 19.2...28.8 VDC
- RS232 interface
- Product group: LF (70/455 kHz)
- Supported RFID technologies: LF 70/455 kHz (TO C )
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features:Connection: Plug, 9-pin
- Plug, 5-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- Housing material: Aluminium, die-cast
- Product group: LF (70/455 kHz)
- RS232 interface
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: LF 70/455 kHz (TO C )
- Additional features:
- Functional principle: Evaluation unit
- Material: Undefined
- Dimensions 100 x 60 x 160 mm
- Operating voltage Ub 19.2...28.8 VDC
- MTTF (40 °C) 69 a
- Housing material: Aluminium, die-cast
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Pollution level: 2
- Connection Slots: Head 1: Plug, 4-pin|Head 2: Plug, 4-pin
- Application weight 800.00 g
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- RS232 interface
- Connection (power supply IN): X1 (power supply/|digital input):|5-pin plug
- Code tag operating: Yellow LED
- Code tag Present: Yellow LED
- System ready: Green LED
- Input current max. at 24 V: 11 mA
- Remaining ripple max. 10%
- Control input:1 (Optocoupler disconnected)
- Control voltage active: 4…40 V.
- Control voltage inactive: 1.5…-40 V.
- Current consumption max. 400 mA at 24 V DC
- Delay time typ.: 5 ms
- Connection (COM 1): X2 (RS232): Plug, 9-pin
- Connection port 01, note Connection type for all C-3… with jack, 4-pin
- Operating location: Indoors
- Maximum altitude: 2000 m.
- Relative humidity: 0…90%, non-condensing
- Product type
Signal processing module
- Type
BIS00AZ
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
400 mA
- Connector
Plug
Plug (5-pin)
IP65
- Content
1 pc(s)
- Length
160.00 mm
- Width
100.00 mm
- Height
60.00 mm
- Enclosure material
Aluminium
- Weight
156 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418818 BALLUFF BIS00AZ Signal processing module BIS00AZ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418818 BALLUFF BIS00AZ Signal processing module BIS00AZ 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = LF (70/455 kHz), interface = RS232, supported RFID technologies = LF 70/455 kHz (TO C), number of connectable S/L heads / antennas = 2, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, die casting, ambient temperature = 0...60 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, cULus, WEEE, connector = plug, 9-pin connector, 5-pin
