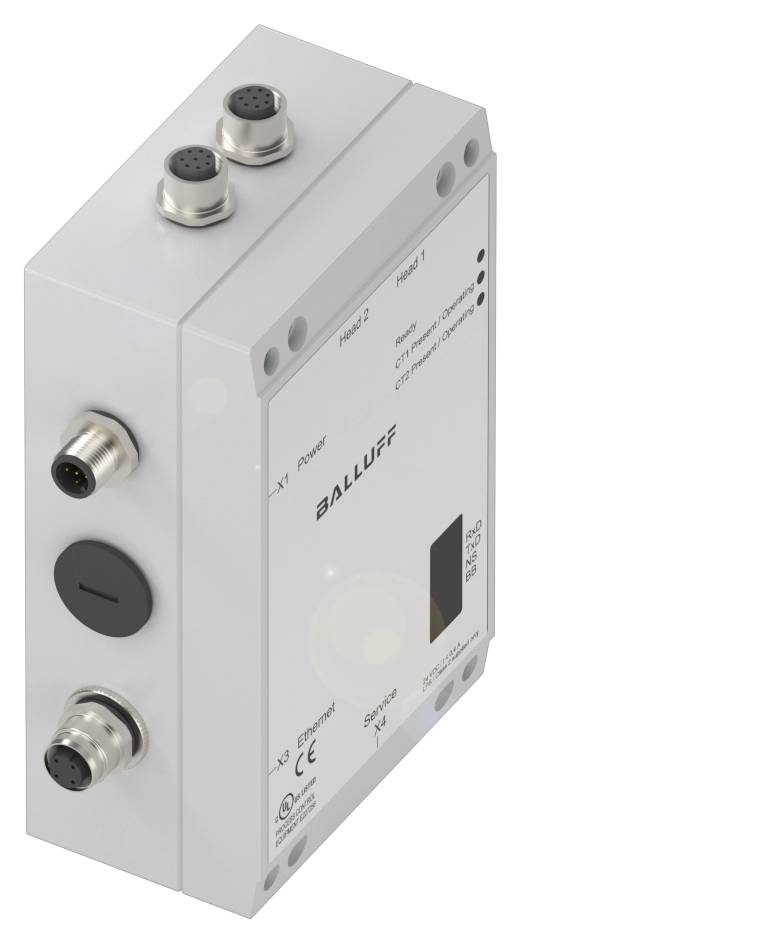

BALLUFF BIS00EF Signal processing module BIS00EF 1 pc(s)
Product type
Signal processing module
Type
BIS00EF
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Operating voltage
19.2 - 28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00EF LF Range Evaluation Units (125 kHz)
- Operating voltage Ub 19.2...28.8 VDC
- Interface Ethernet/IP
- Product group: LF (125 kHz)
- Supported RFID technologies: LF 125 kHz (TO L)
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features:Connection: Socket, 4-pin, D-coded
- Plug, 5-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- Housing material: Aluminium, die-cast
- Product group: LF (125 kHz)
- Interface Ethernet/IP
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: LF 125 kHz (TO L)
- Additional features:
- Functional principle: Evaluation unit
- Material: Undefined
- Dimensions 100 x 60 x 160 mm
- Operating voltage Ub 19.2...28.8 VDC
- Housing material: Aluminium, die-cast
- Connection Slots: Head 1: Jack, 8-pin|Head 2: Jack, 8-pin
- Application weight 950.00 g
- EN 55011: Gr. 1, class A
- Interface Ethernet/IP
- Connection (power supply IN): X1:|plug, 5-pin
- Remaining ripple max. 10%
- Current consumption max. 400 mA at 24 V DC
- Connection (COM 1): X3 (Ethernet): Jack, 4-pin, D-|coded
- Connection port 01, note connection type for all L-3… with plug, 8-pin
- (BB) Ready for operation: Green LED
- Code tag 1 present/operating: LED green/yellow
- Code tag 2 present/operating: LED green/yellow
- Connection (Service): X4:|Plug, 4-pin
- Data Rate (DR) LED green/red
- Module status (MS): Green LED/red LED
- Network Status (NS): Green LED/red LED
- Link/Activity (L/A): LED green/LED red
- Product type
Signal processing module
- Type
BIS00EF
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
400 mA
- Connector
Socket
Plug (5-pin)
IP65
- Content
1 pc(s)
- Length
160.00 mm
- Width
100.00 mm
- Height
60.00 mm
- Enclosure material
Aluminium
- Weight
64 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418727 BALLUFF BIS00EF Signal processing module BIS00EF 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418727 BALLUFF BIS00EF Signal processing module BIS00EF 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = LF (125 kHz), interface = Ethernet/IP, supported RFID technologies = LF 125 kHz (TO L), number of connectable S/L heads / antennas = 2, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, die cast, ambient temperature = 0...60 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, cULus, WEEE, connection = socket, 4-pin, D-coded plug, 5-pin
