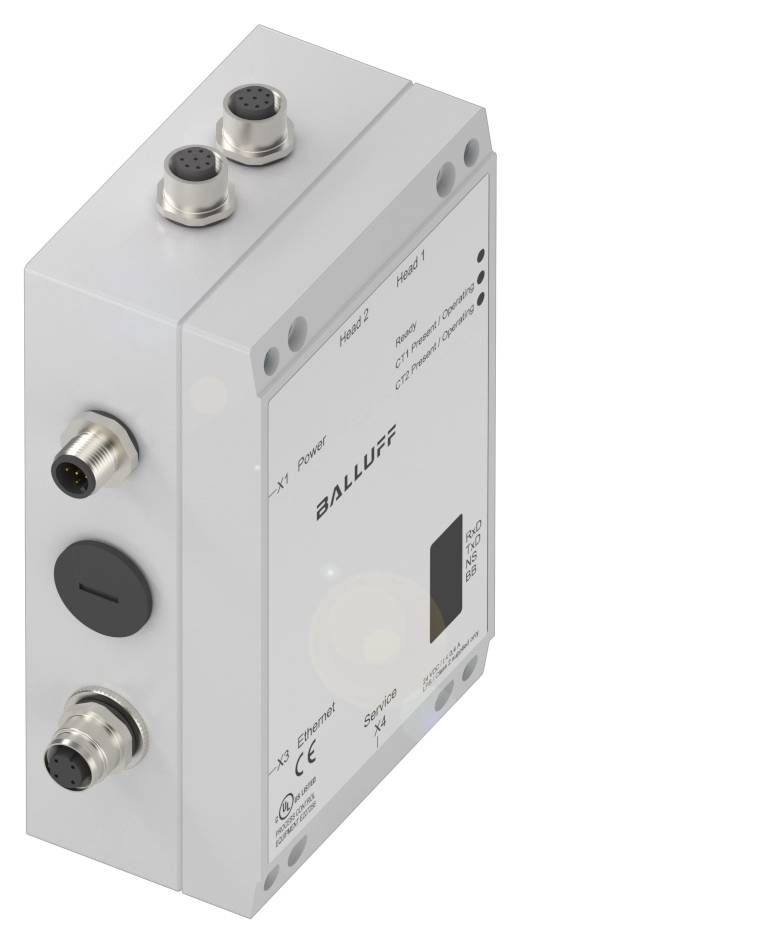

BALLUFF BIS00F2 Signal processing module BIS00F2 1 pc(s)
Product type
Signal processing module
Type
BIS00F2
Operating voltage
24
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00F2 RF Range Evaluation Units (13.56 MHz)
- Operating voltage Ub 19.2...28.8 VDC
- Interface Ethernet/IP
- Product group: HF (13.56 MHz)
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features:Connection: Socket, 4-pin, D-coded
- Plug, 5-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- Housing material: Aluminium, die-cast
- Product group: HF (13.56 MHz)
- Interface Ethernet/IP
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Additional features:
- Functional principle: Evaluation unit
- Material: Undefined
- Dimensions 100 x 60 x 160 mm
- Operating voltage Ub 19.2...28.8 VDC
- MTTF (40 °C) 107 a
- Housing material: Aluminium, die-cast
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Connection Slots: Head 1: Jack, 8-pin|Head 2: Jack, 8-pin
- Application weight 950.00 g
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Interface Ethernet/IP
- Connection (power supply IN): X1:|plug, 5-pin
- Remaining ripple max. 10%
- Current consumption max. 400 mA at 24 V DC
- Connection (COM 1): X3 (Ethernet): Jack, 4-pin, D-|coded
- Connection port 01, note connection type for all M-3… with plug, 8-pin
- (BB) Ready for operation: Green LED
- Code tag 1 present/operating: LED green/yellow
- Code tag 2 present/operating: LED green/yellow
- Connection (Service): X4:|Plug, 4-pin
- Data Rate (DR) LED green/red
- Module status (MS): Green LED/red LED
- Network Status (NS): Green LED/red LED
- Link/Activity (L/A): LED green/LED red
- Product type
Signal processing module
- Type
BIS00F2
- Operating voltage
24
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
24 mA
- Connector
Socket
Plug (5-pin)
IP65
- Content
1 pc(s)
- Length
160.00 mm
- Width
100.00 mm
- Height
60.00 mm
- Enclosure material
Aluminium
- Weight
840 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418678 BALLUFF BIS00F2 Signal processing module BIS00F2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418678 BALLUFF BIS00F2 Signal processing module BIS00F2 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = HF (13.56 MHz), interface = Ethernet/IP, supported RFID technologies = HF 13.56 MHz (TO M), number of connectable S/L heads / antennas = 2, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, die cast, ambient temperature = 0...60 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, cULus, WEEE, connection = socket, 4-pin, D-coded plug, 5-pin
