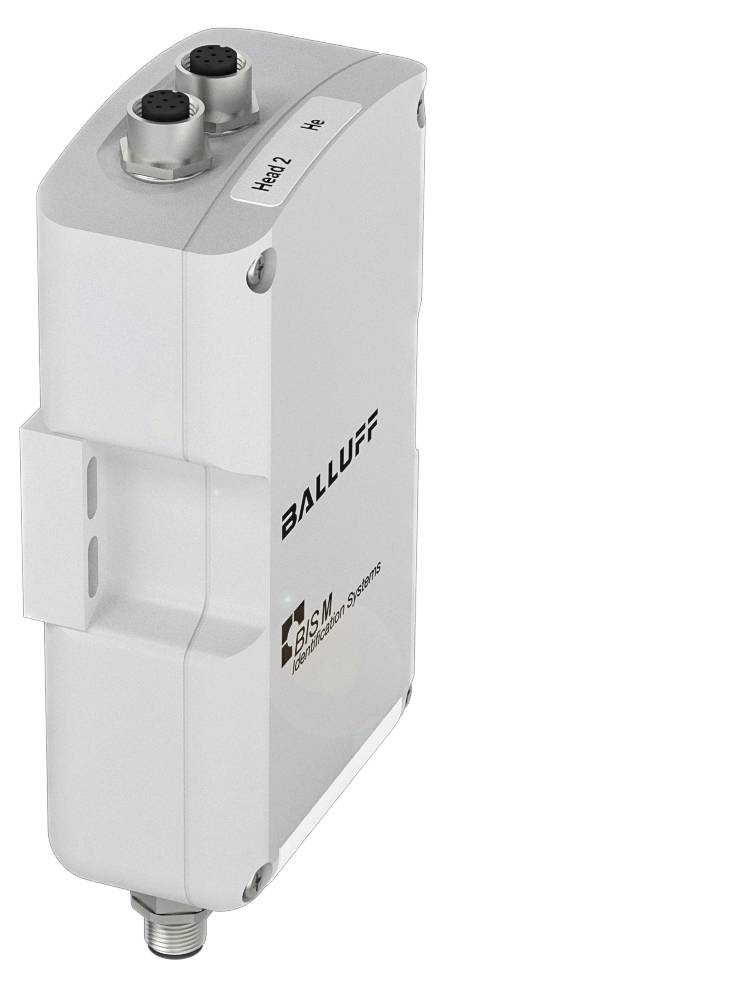

BALLUFF BIS00L7 Signal processing module BIS00L7 1 pc(s)
Product type
Signal processing module
Type
BIS00L7
Operating voltage
24
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00L7 RF Range Evaluation Units (13.56 MHz)
- Operating voltage Ub 19.2...28.8 VDC
- Profinet I/O (IRT);Profinet I/O (IRT)
- 2-port switch
- Product group: HF (13.56 MHz)
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features:Connection: Socket, 4-pin, D-coded
- M12x1 socket, 4-pin, D-coded
- Plug, 5-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- ABS casing material
- Product group: HF (13.56 MHz)
- Profinet I/O (IRT);Profinet I/O (IRT)
- 2-port switch
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Additional features:
- Functional principle: Evaluation unit
- Dimensions 90 x 45.5 x 150 mm
- Operating voltage Ub 19.2...28.8 VDC
- MTTF (40 °C) 49 a
- ABS casing material
- Connection Slots: Head 1: Jack, 8-pin|Head 2: Jack, 8-pin
- Application weight 500.00 g
- EN 55011: Gr. 1, class A
- Profinet I/O (IRT)|Profinet I/O (IRT)|2-port switch
- Connection (power supply IN): X1 (power supply/|digital input):|5-pin plug
- Remaining ripple max. 10%
- Current consumption max. 400 mA at 24 V DC
- Connection (COM 1): X2 (Profinet): Jack, 4-pin, D-|coded
- Connection port 01, note connection type for all M-3… with plug, 8-pin
- Connection (COM 2): X3 (Profinet): M12x1 socket, 4-|pin, D-coded
- Error: Red LED
- (BB) Ready for operation: Green LED
- Code tag 1 present/operating: LED green/yellow
- Code tag 2 present/operating: LED green/yellow
- Port 1, activity LED yellow
- Port 1, Link: Green LED
- Port 2, activity LED yellow
- Port 2, Link: Green LED
- Status: Green LED
- Product type
Signal processing module
- Type
BIS00L7
- Operating voltage
24
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
24 mA
- Connector
M12 socket (4-pin)
IP65
- Content
1 pc(s)
- Length
150.00 mm
- Width
90.00 mm
- Height
45.50 mm
- Enclosure material
Acrylonitrile butadiene styrene
- Weight
840 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418667 BALLUFF BIS00L7 Signal processing module BIS00L7 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418667 BALLUFF BIS00L7 Signal processing module BIS00L7 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = HF (13.56 MHz), interface = Profinet I/O (IRT); Profinet I/O (IRT) 2-port switch, supported RFID technologies = HF 13.56 MHz (TO M), number of connectable S/L heads / antennas = 0, operating voltage Ub = 60...28.8 VDC, housing material = ABS, ambient temperature = 2...19.2 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA cULus, WEEE, connector = socket, 4-pin, D-coded M12x1 socket, 4-pin, D-coded plug, 5-pin
