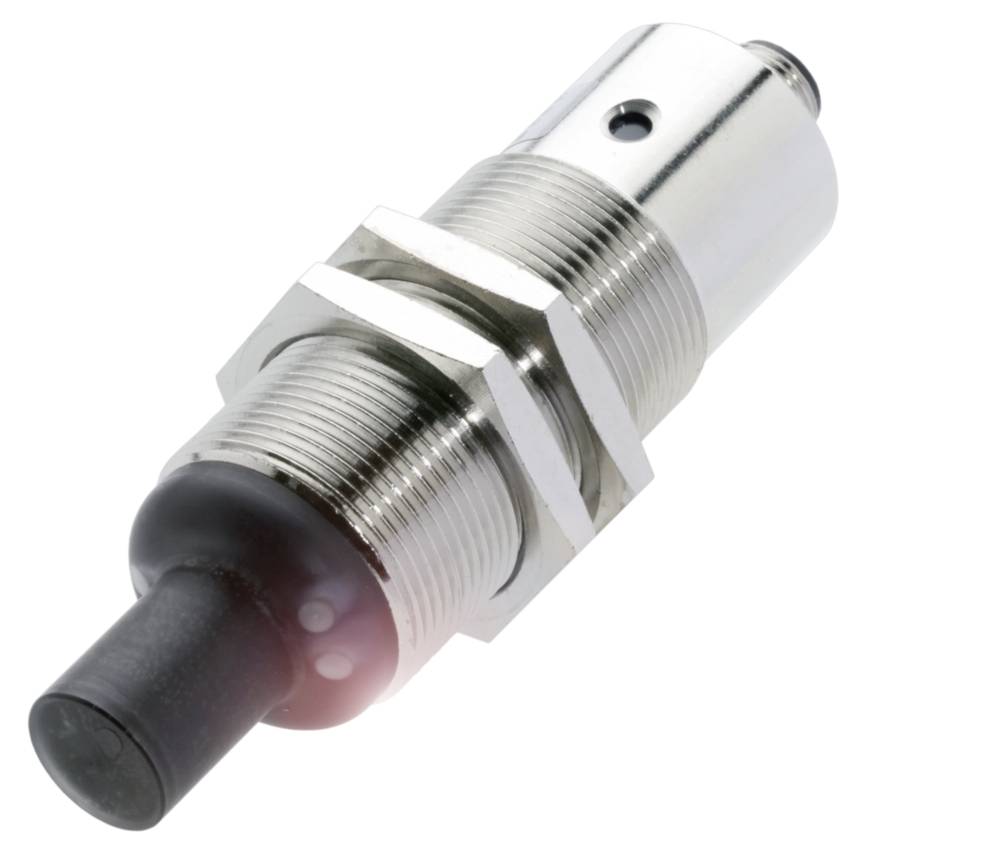

BALLUFF BIS00LJ Reader BIS00LJ 1 pc(s)
Product type
Reader
Type
BIS00LJ
Min. operating voltage
18 V
Max. operating voltage
30 V
Operating voltage
18 - 30 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00LJ IO-Link Reader for the HF-range (13.56 MHz)
- Dimensions: Ø 30 x 109.5 mm
- Installation: Metal-free (free zone)
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- Supported media types: DIN ISO 14443
- DIN ISO 15693
Technical specifications
- Main features:Dimensions: Ø 30 x 109.5 mm
- Connection: Connector, M12x1 connector, 4-pin
- Antenna shape: Round
- Operating voltage Ub: 18...30 VDC Supports only LPS/Class 2
- Installation: Metal-free (free zone)
- Housing material: Brass, nickel-plated brass nuts, nickel-plated
- Product group: HF (13.56 MHz)
- Process data IN: 10 bytes
- Process data OUT: 10 bytes
- Interface: IO-Link 1.1
- Protection class IP67
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature 0...70 °C
- Supported media types: DIN ISO 14443
- DIN ISO 15693
- Additional features:
- Functional principle: Evaluation unit
- Dimensions: Ø 30 x 109.5 mm
- Function display: Power (ON)|LED1 green (2x)|TP (day present)|LED2 yellow (2x)
- Operating voltage Ub: 18...30 VDC Supports only LPS/|Class 2
- Connection: M12x1 4-pin connector, A-coded
- MTTF (40 °C) 154 a
- Size M30x1.5
- Installation: Metal-free (free zone)
- Housing material: Brass, nuts brass|nickel-plated, nickel-plated
- Application weight 100.00 g
- Antenna shape: Round
- Interface: IO-Link 1.1
- Process data IN: 10 bytes
- COM2 (38.4 kBaud) transfer rate
- Remaining ripple max. 1.3 Vss
- Current consumption max. 150 mA at 24 V DC
- EN 55022: Gr. 1, Cl. A
- Supported media types: DIN ISO 14443|DIN ISO 15693
- Housing material, surface protection Mechanical features: Nickel-plated
- Product type
Reader
- Type
BIS00LJ
- Min. operating voltage
18 V
- Max. operating voltage
30 V
- Operating voltage
18 - 30 V
- Operating current
150 mA
- Connector
M12 plug (4-pin, A coded)
IP67
- Content
1 pc(s)
- Length
109.50 mm
- Width
164 mm
- Height
174 mm
- (Ø)
30 mm
- Enclosure material
Brass
- Weight
5600.0 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418914 BALLUFF BIS00LJ Reader BIS00LJ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418914 BALLUFF BIS00LJ Reader BIS00LJ 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard in accordance with DIN ISO 15693. Reading heads with integrated evaluation unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. With multiple designs, dimensions and variants with remote or integrated reading head, you can solve most of the requirements. Product group=HF (13.56 MHz), dimension=Ø 30 x 109.5 mm, installation=metal-free (free zone), antenna form=round, supported media types=DIN ISO 14443DIN ISO 15693, connection=connector, M12x1 connector, 4-pole, housing material=brass, Nickel-plated brass nuts, interface=IO-Link 1.1, process data IN=10 bytes, process data OUT=10 bytes, operating voltage Ub=18...30 VDC Supports only LPS/Class 2, ambient temperature=0...70 °C, protection class=IP67, approval/conformity=CEFCC Part 15IC RSS-210cULusWEEE
