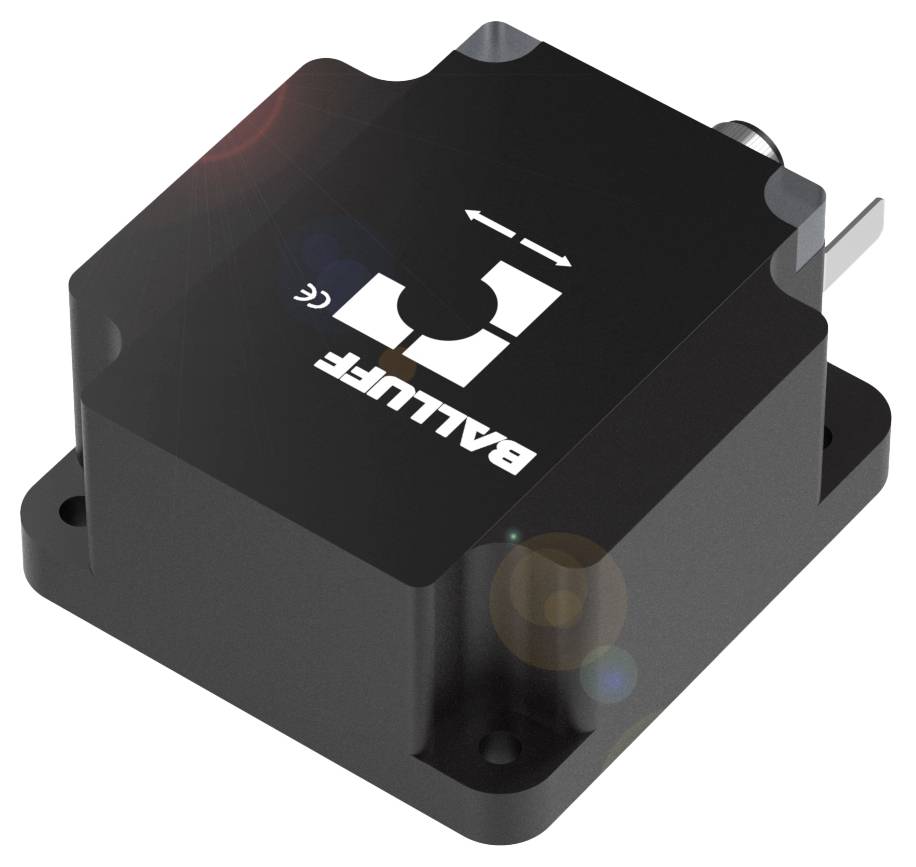

BALLUFF BIS00LM Reader BIS M-451-045-001-07-S4 1 pc(s)
Product type
Reader
Type
BIS M-451-045-001-07-S4
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Operating voltage
18 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00LM IO-Link Reader for the HF-range (13.56 MHz)
- Dimensions 80 x 40 x 84.5 mm
- Installation: Metal-free (free zone)
- Product group: HF (13.56 MHz)
- Antenna shape: Rod
- Supported media types: DIN ISO 15693
Technical specifications
- Main features:Dimension 80 x 40 x 84.5 mm
- Connection: Connector, M12x1 connector, 4-pin
- Antenna shape: Rod
- Operating voltage Ub: 18...30 VDC Supports only LPS/Class 2
- Installation: Metal-free (free zone)
- PBT casing material
- Product group: HF (13.56 MHz)
- Process data IN: 10 bytes
- Process data OUT: 10 bytes
- Interface: IO-Link 1.1
- Protection class IP67
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature 0...70 °C
- Supported media types: DIN ISO 15693
- Additional features:
- Functional principle: Evaluation unit
- Dimensions 80 x 40 x 84.5 mm
- Function display: Power (ON)|LED green|TP (tag present)|LED yellow
- Operating voltage Ub: 18...30 VDC Supports only LPS/|Class 2
- Connection: M12x1 4-pin connector, A-coded
- Installation: Metal-free (free zone)
- PBT casing material
- Application weight 380.00 g
- Antenna shape: Rod
- Interface: IO-Link 1.1
- Process data IN: 10 bytes
- COM2 (38.4 kBaud) transfer rate
- Remaining ripple max. 1.3 Vss
- Current consumption max. 150 mA at 24 V DC
- EN 55022: Gr. 1, Cl. A
- Supported media types: DIN ISO 15693
- Product type
Reader
- Type
BIS M-451-045-001-07-S4
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Operating current
150 mA
- Connector
M12 plug (4-pin, A coded)
IP67
- Content
1 pc(s)
- Length
80 mm
- Width
40 mm
- Height
84.5 mm
- Enclosure material
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418651 BALLUFF BIS00LM Reader BIS M-451-045-001-07-S4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418651 BALLUFF BIS00LM Reader BIS M-451-045-001-07-S4 1 pc(s)
Description
RF read/write heads with integrated evaluation unit are the mediators between the data carrier and the PC or the controller. The advantage: As the antenna, electronics and interface are located in one housing, there is no need for an additional evaluation unit. In addition, the easy integration saves a lot of installation effort. Variants with remote electronics are also suitable for narrow installation conditions and provide scope for installation. Product group = HF (13.56 MHz), dimension = 80 x 40 x 84.5 mm, installation = metal-free (free zone), antenna shape = rod, supported media types = DIN ISO 14443, DIN ISO 15693, connection = connector, M12x1 connector, 4-pin, Housing material = PBT, interface = IO-Link 1.1, transmission rate = COM2 (38.4 kBaud), process data IN = 10 bytes, process data OUT = 10 bytes, operating voltage Ub = 18...30 VDC Only supports LPS/Class 2, ambient temperature = 0...70 °C, protection class = IP67, approval/conformity = CE, UKCA, FCC Part 15, IC (Radio), cULus, WEEE, MIC
