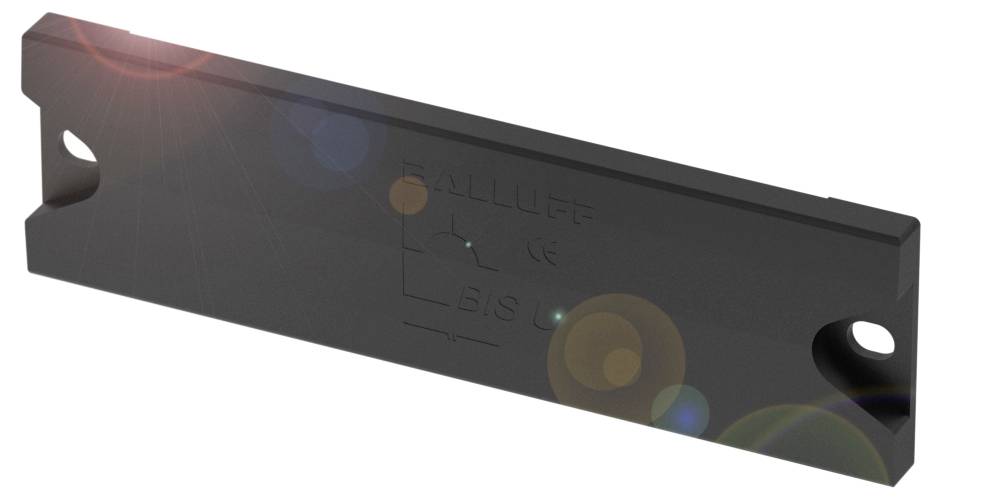

Image similar
BALLUFF BIS00NL RFID-Tag BIS U-100-01/CA 1 pc(s)
Product type
RFID-Tag
Type
BIS U-100-01/CA
IP rating
IP67
IP68
IP69K
Content
1 pc(s)
Length
37.2 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00NL Square tags for the UHF range (860/960 MHz)
- Dimensions 37.2 x 7 x 127 mm
- Product group: UHF (860...930 MHz)
- Operating frequency: 840...960 MHz
- Memory type: EEPROM
- User data, read/write: 512 bit
Technical specifications
- Main features:Dimension 37.2 x 7 x 127 mm
- Antenna shape: Dipole
- Operating frequency: 840...960 MHz
- Installation: Metal-free (free zone)
- EPC memory, read/write: 96 bit
- PA 12, GF30 housing material
- Storage temperature: -40...85 °C
- User data, read/write: 512 bit
- Product group: UHF (860...930 MHz)
- Protection class IP67
- IP68
- IP69K
- Memory type: EEPROM
- TID memory, read-only: 96 bit
- Ambient temperature -40...85 °C
- Additional features:
- Operating principle: Transponder
- Dimensions 37.2 x 7 x 127 mm
- Installation: Metal-free (free zone)
- PA 12, GF30 housing material
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- PROTECTION CLASS IP67, IP68, IP69K
- Ambient temperature -40...85 °C
- Application weight 18.00 g
- Antenna shape: Dipole
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -40...85 °C
- Read cycles: Unlimited
- Programming cycles: Up to 25 °C: 100,000
- User data, read/write: 512 bit
- Memory type: EEPROM
- Operating frequency: 840...960 MHz
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10
- Standards: EPCglobal™ Class 1, Gen 2|ISO 18000-6C
- Preferred area of application: 865...868 MHz
- EN 61000-4-2/3/4/5/6: DEGREE OF SHARPNESS 3A/2A/-/-/-
- Polarisation: Linear
- EPC memory, read/write: 96 bit
- TID memory, read-only: 96 bit
- Product type
RFID-Tag
- Type
BIS U-100-01/CA
IP67
IP68
IP69K
- Content
1 pc(s)
- Length
37.2 mm
- Width
7 mm
- Height
127 mm
- Enclosure material
PA 12
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418840 BALLUFF BIS00NL RFID-Tag BIS U-100-01/CA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418840 BALLUFF BIS00NL RFID-Tag BIS U-100-01/CA 1 pc(s)
Description
UP TO U for 860 to 960 MHz offers UHF-data carriers in a large variety of variants for different applications. For example, for direct mounting on metal, for tool identification, for high-temperature application and for disposable solutions as self-adhesive UHF-label. Product group=UHF (860,960 MHz), operating frequency=840,960 MHz, dimension=37.2 x 7 x 127 mm, memory type=EEPROM, user data, read/write=512 bit, EPC memory, read/write=96 bit, TID memory, readable only=64 bit, antenna shape=dipole, mounting=metal free (free zone), Storage temperature=-40...85 °C, ambient temperature=-40...85 °C, casing material=PA 12, GF30, protection class=IP67, Approval/conformity=CEEEEE
