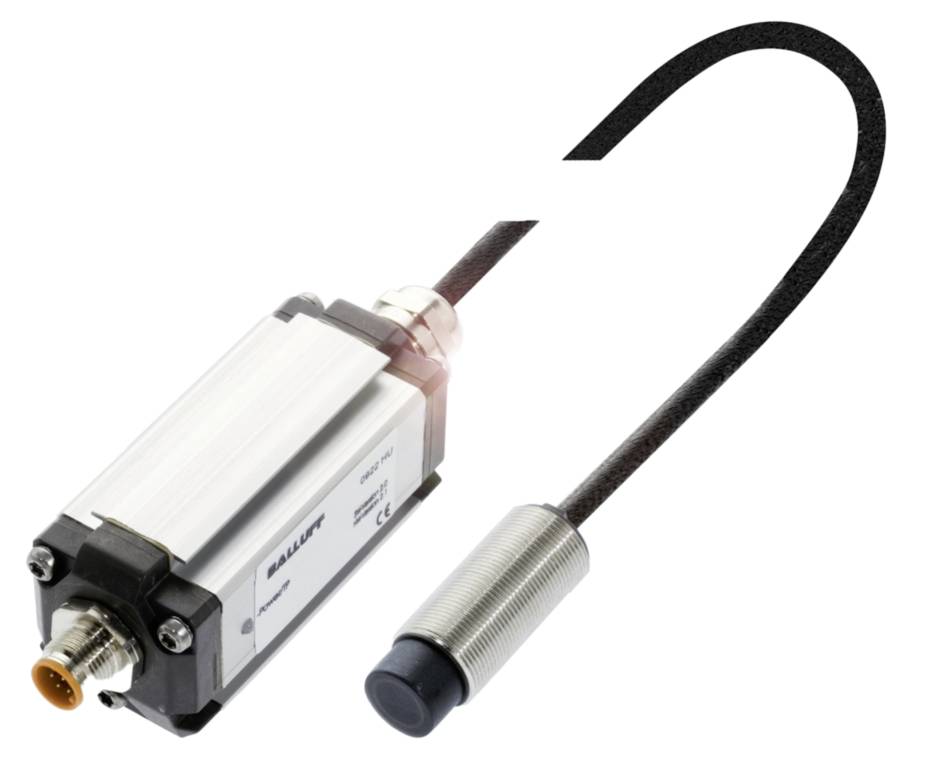

BALLUFF BIS00P2 Reader BIS00P2 1 pc(s)

Application-specific RF read/write heads and antennas from Balluff in industrial design can be easily integrated into your system. They support the worldwide standardized ISO 15693 standard and partly ISO 14443A. Thanks to a robust housing conforming to protection class IP67 they are also suitable for use in harsh environments. Their range depends on the combination of read/write head and data carrier used.HF read/write heads with IO-Link interface are also available. For applications in which production progress, batch number or quality data must be cost-effectively logged with a small amount of data. Product group = HF (13.56 MHz), Dimensions = Ø 18 x 46.5 mm, installation = metal-free (free zone), antenna form = round, supported data carrier types = DIN ISO 14443, DIN ISO 15693, connection = plug, 8-pin, 0.50 m, PU, housing material = brass, interface aluminum, nickel-plated, ambient temperature = 0...70 °C, protection class = IP67, certification/conformity = CE, UKCA, cULus, FCC, IC (RADIO), WEEE, MIC
