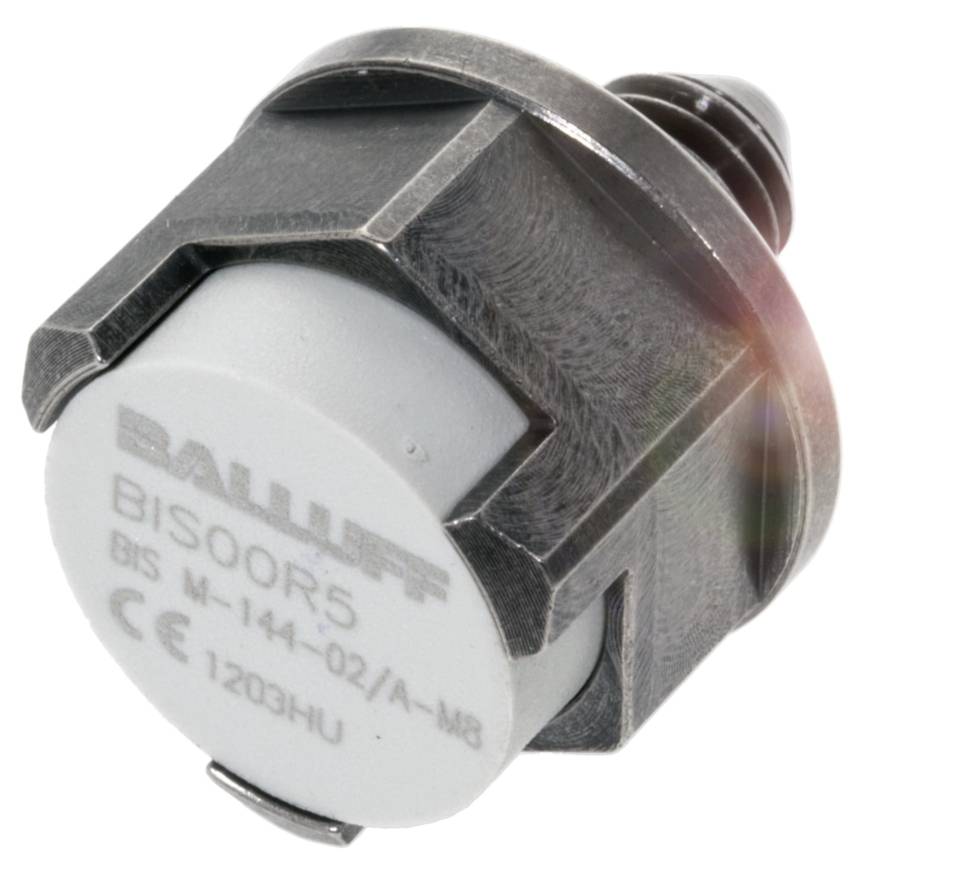

Image similar
BALLUFF BIS00R5 Part info screw BIS M-144-02/A-M8-GY 1 pc(s)
Product type
Part info screw
Type
BIS M-144-02/A-M8-GY
Content
1 pc(s)
Length
26 mm
(Ø)
22 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00R5 data screws for the HF range (13.56 MHz)
- Dimensions: Ø 22 x 26 mm
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- UID serial number, read-only: 8 bytes
- Memory type: FRAM
Technical specifications
- Main features:Dimensions: Ø 22 x 26 mm
- Antenna shape: Round
- Housing material: Steel, data carrier: PA 12-GF30 gray, coated
- User data, read/write: 2000 bytes
- Product group: HF (13.56 MHz)
- Memory type: FRAM
- UID serial number, read-only: 8 bytes
- Ambient temperature: -25 to 70 °C
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- Reading time: User ID for 8 bytes: 0.02 s|for 16 bytes: 0.03 s.
- Read cycles: Unlimited
- Programming time: For 16 bytes: 0.060s
- Programming cycles: ≥ 10,000,000,000
- Memory organization: 250 × 8 bytes
- User data, read/write: 2000 bytes
- Memory type: FRAM
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10 at 55 °C.
- UID serial number, read-only: 8 bytes
- Product type
Part info screw
- Type
BIS M-144-02/A-M8-GY
- Content
1 pc(s)
- Length
26 mm
- (Ø)
22 mm
- Enclosure material
Steel (coated)
PA 12
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418861 BALLUFF BIS00R5 Part info screw BIS M-144-02/A-M8-GY 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418861 BALLUFF BIS00R5 Part info screw BIS M-144-02/A-M8-GY 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard either in accordance with DIN ISO 15693 and/or DIN ISO 14443. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Antenna technology, installation, range you can implement almost any technical task with application optimized. BIS M is the robust system with absolute data security. Product group=HF (13.56 MHz), dimension=Ø 22 x 26 mm, UID serial number, readable only=8 bytes, user data, read/write=2000 bytes, Storage type=FRAM, antenna shape=round, ambient temperature=-25...70 °C, casing material=steel, data carrier: PA 12-GF30 gray, approval/conformity=CEEEE
