Image similar
BALLUFF BIS00T7 Reader BIS00T7 1 pc(s)
Product type
Reader
Type
BIS00T7
Operating voltage
24
Min. operating voltage
18 V
Max. operating voltage
30 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

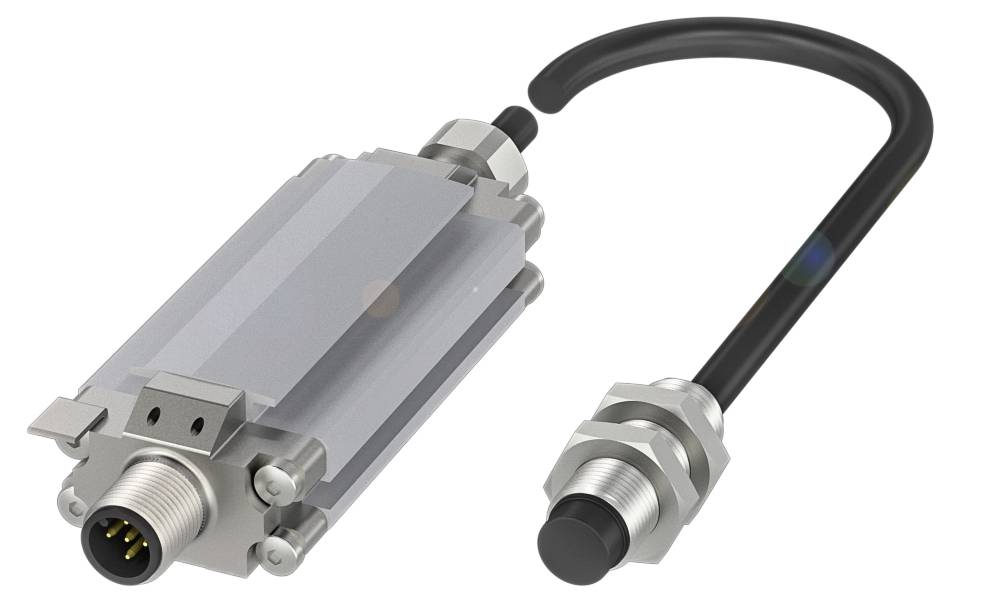

Balluff BIS00T7 UP TO V High-power Reader for the HF-range (13.56 MHz)
- Dimensions: Ø 12 x 37.3 mm
- Installation: Metal-free (free zone)
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- Supported media types: DIN ISO 14443
- DIN ISO 15693
Technical specifications
- Main features:Dimensions: Ø 12 x 37.3 mm
- Connection: Plug, 4-pin, 0.50 m, PU
- Antenna shape: Round
- Installation: Metal-free (free zone)
- Housing material: Brass, interface aluminum, nickel-plated
- Product group: HF (13.56 MHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Supported media types: DIN ISO 14443
- DIN ISO 15693
- Additional features:
- Functional principle: Write/read head
- Dimensions: Ø 12 x 37.3 mm
- Function display: Operating, LED flashing yellow|CP (code present), LED yellow|Power (ON), LED green
- Connection: Plug, 4-pin
- Size M12x1
- Installation: Metal-free (free zone)
- Connection type 0.50 m, PU
- Cable diameter D 5.40 mm
- Cable length L: 0.5 m, drag-chain compatible
- Housing material: Brass, interface aluminum,|nickel-plated
- Casing material PU
- Housing material, surface protection: Nickel-plated
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 2 MIO.
- Application weight 180.00 g
- Antenna shape: Round
- Supported media types: DIN ISO 14443|DIN ISO 15693
- Product type
Reader
- Type
BIS00T7
- Operating voltage
24
- Min. operating voltage
18 V
- Max. operating voltage
30 V
- Operating voltage
18 - 30 V
- Operating current
24 mA
- Connector
M12
- Cable length
0.50 m
IP67
- Content
1 pc(s)
- Length
37.30 mm
- Width
230 mm
- Height
75 mm
- (Ø)
12 mm
- Enclosure material
Brass
- Weight
840 g
- Material
PU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418698 BALLUFF BIS00T7 Reader BIS00T7 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418698 BALLUFF BIS00T7 Reader BIS00T7 1 pc(s)
Description
Application-specific RF read/write heads and antennas from Balluff in industrial design can be easily integrated into your system. They support the worldwide standardized ISO 15693 standard and partly ISO 14443A. Thanks to a robust housing conforming to protection class IP67 they are also suitable for use in harsh environments. Their range depends on the combination of read/write head and data carrier used.HF read/write heads with IO-Link interface are also available. For applications in which production progress, batch number or quality data must be cost-effectively logged with a small amount of data. Product group = HF (13.56 MHz), Dimensions = Ø 12 x 37.3 mm, installation = metal-free (free zone), antenna form = round, supported data carrier types = DIN ISO 14443, DIN ISO 15693, connection = plug, 4-pin, 0.50 m, PU, housing material = brass, interface aluminum, nickel-plated, ambient temperature = 0...70 °C, protection class = IP67, certification/conformity = CE, UKCA, cULus, WEEE
