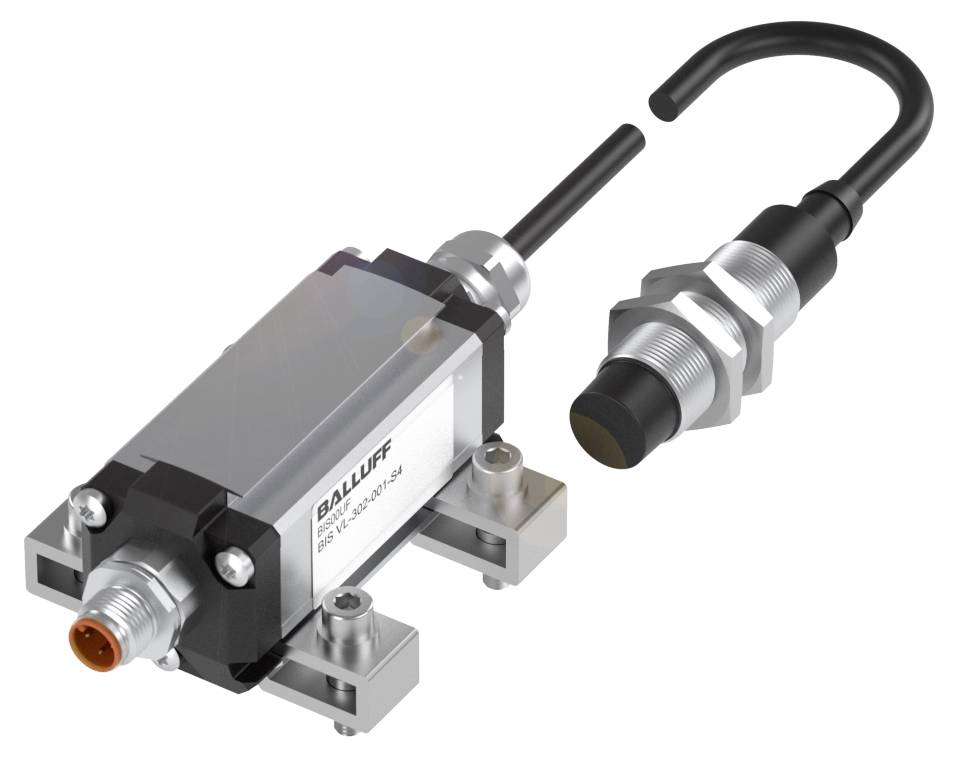

BALLUFF BIS00UF Reader BIS VL-302-001-S4 1 pc(s)
Product type
Reader
Type
BIS VL-302-001-S4
Min. operating voltage
19.2 V DC
Max. operating voltage
28.8 V DC
Operating voltage
19.2 - 28.8 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00UF Reader for the LF range (125 kHz)
- Dimensions: Ø 18 x 75 mm
- Installation: Metal-free (free zone)
- Product group: LF (125 kHz)
- Antenna shape: Round
- Communication: Write/read
Technical specifications
- Main features:Dimensions: Ø 18 x 75 mm
- Connection: M12x1 connector, 4-pin, 0.50 m, PVC
- Antenna shape: Round
- Operating voltage Ub 19.2...28.8 VDC
- Installation: Metal-free (free zone)
- Housing material: Brass, interface aluminum, nickel-plated
- Communication: Write/read
- Storage temperature: -20...85 °C
- Product group: LF (125 kHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Functional principle: Write/read head
- Dimensions: Ø 18 x 75 mm
- Operating voltage Ub 19.2...28.8 VDC
- Connection: M12x1 4-pin connector, A-coded
- Size M18x1
- Installation: Metal-free (free zone)
- Connection type 0.50 m, PVC
- Cable diameter D 5.70 mm
- Cable length 0.5 m
- Housing material: Brass, interface aluminum,|nickel-plated
- Jacket material PVC
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Pollution level: 2
- Housing material, surface protection: Nickel-plated
- Cable temperature, fixed installation: -30...80 °C.
- Application weight 210.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Operating location: Indoors
- Maximum altitude: 2000 m.
- Relative humidity: 0…90%, non-condensing
- Product type
Reader
- Type
BIS VL-302-001-S4
- Min. operating voltage
19.2 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
19.2 - 28.8 V DC
- Connector
M12 plug (4-pin, A coded)
- Cable length
0.50 m
IP67
- Content
1 pc(s)
- Length
75 mm
- (Ø)
18 mm
- Enclosure material
Brass
Aluminium
- Material
PVC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418746 BALLUFF BIS00UF Reader BIS VL-302-001-S4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418746 BALLUFF BIS00UF Reader BIS VL-302-001-S4 1 pc(s)
Description
BIS L uses the low frequency (LF) 125 kHz and uses passive disks. Read/write heads are the link between data carrier and evaluation unit. BIS L read/write heads provide absolute data security. Thanks to a wide range of designs and dimensions, plant-specific requirements from a wide range of industries such as intralogistics, production, etc. can be taken into account. Product group=LF (125 kHz), dimension=Ø 18 x 75 mm, installation=metal-free (free zone), antenna form=round, connection=M12x1-plug, 4-pole, 0.50 m, PVC, housing material=brass, interface aluminum, storage temperature=-20...85 °C, Ambient temperature=0...70 °C, protection class=IP67, approval/conformity=CEWEEE
