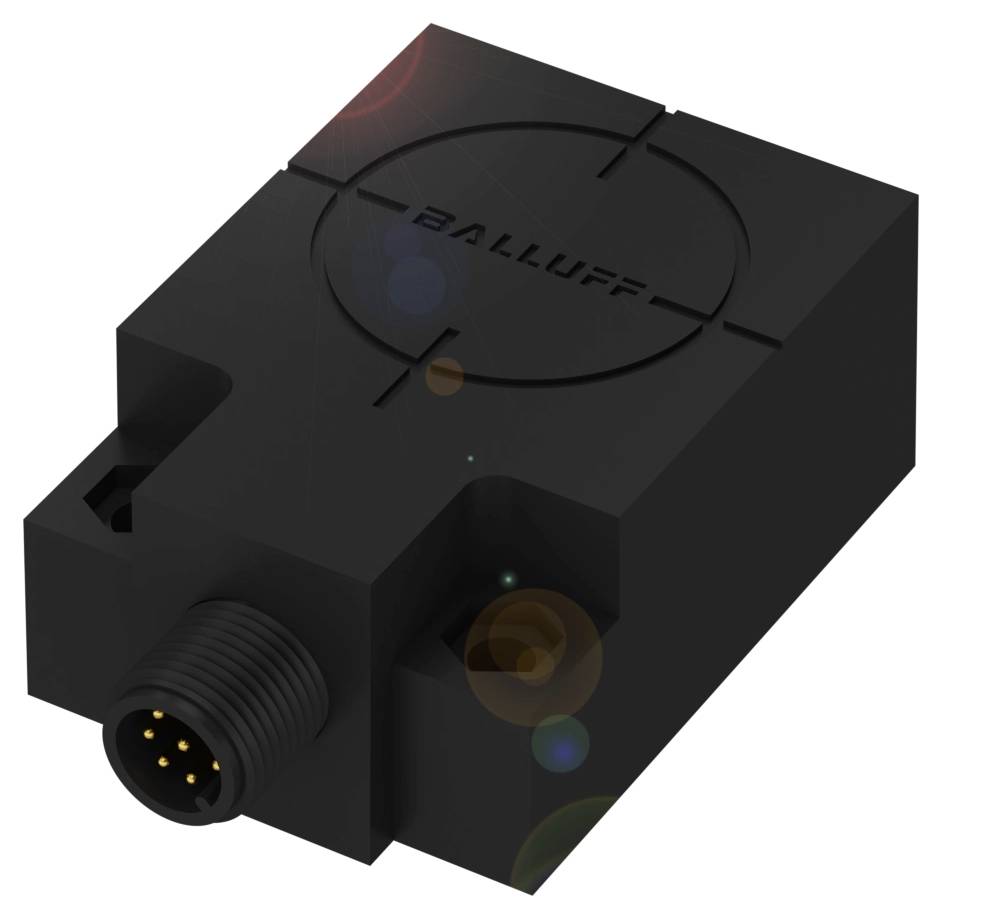

Image similar
BALLUFF BIS00W1 Reader BIS M-410-067-001-04-S92 1 pc(s)
Product type
Reader
Type
BIS M-410-067-001-04-S92
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Operating voltage
10 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00W1 TO V High-performance reader for the HF-range (13.56 MHz)
- Dimensions 40 x 24 x 56 mm
- Installation: Metal-free (free zone)
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- Supported media types: DIN ISO 14443
- DIN ISO 15693
Technical specifications
- Main features:Dimension 40 x 24 x 56 mm
- Connection: Connector, M12x1 connector, 5-pin
- Antenna shape: Round
- Operating voltage Ub 10...30 VDC
- Installation: Metal-free (free zone)
- PC case, with PU cast
- Product group: HF (13.56 MHz)
- Subnet 16 interface (RS485)
- Protection class IP67
- Ambient temperature -20...50 °C
- Supported media types: DIN ISO 14443
- DIN ISO 15693
- Additional features:
- Function principle: Write/read device
- Material DIN ISO 15693
- Dimensions 40 x 24 x 56 mm
- Function display: COM field, LED yellow|RF field, LED red|Power (ON), LED green
- Operating voltage Ub 10...30 VDC
- Installation: Metal-free (free zone)
- PC case, with PU cast
- Application weight 66.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Subnet 16 interface (RS485)
- Remaining ripple max.: Inclusive
- Current consumption max. 150 mA at 24 V DC
- Supported media types: DIN ISO 14443
- Connection Functional safety: (RS485): M12x1 connector, 5-pin
- MTTF (40 °C) functions 40.8 a
- Product type
Reader
- Type
BIS M-410-067-001-04-S92
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Operating current
150 mA
- Connector
M12 plug (5-pin)
IP67
- Content
1 pc(s)
- Length
40 mm
- Width
24 mm
- Height
56 mm
- Enclosure material
PC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418593 BALLUFF BIS00W1 Reader BIS M-410-067-001-04-S92 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418593 BALLUFF BIS00W1 Reader BIS M-410-067-001-04-S92 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard in accordance with DIN ISO 15693. Reading heads with integrated evaluation unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. With multiple designs, dimensions and variants with remote or integrated reading head, you can solve most of the requirements. Product group=HF (13.56 MHz), dimension=40 x 24 x 56 mm, installation=metal-free (free zone), antenna form=round, supported media types=DIN ISO 14443DIN ISO 15693, connector=connector, M12x1 connector, 5-pole, housing material=PC, with PU casting, interface=Subnet 16 (RS485), operating voltage Ub=10...30 VDC, ambient temperature=-20...50 °C, protection class=IP67, Approval/conformity=CecULusWEEE
