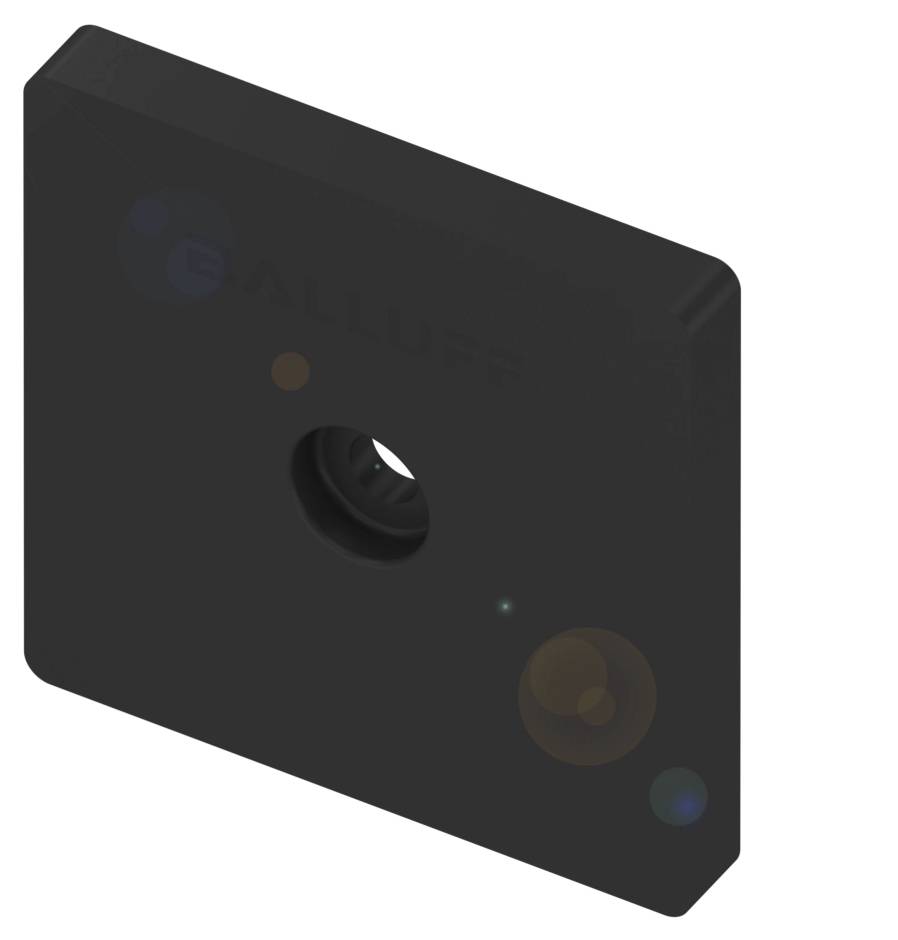

Image similar
BALLUFF BIS00Y6 RFID-Tag BIS M-135-02/L 1 pc(s)
Product type
RFID-Tag
Type
BIS M-135-02/L
IP rating
IP68
Content
1 pc(s)
Length
51.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00Y6 Square tags for the RF range (13.56 MHz)
- Dimensions 51.5 x 6.4 x 51.5 mm
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- UID serial number, read-only: 8 bytes
- Memory type: FRAM
Technical specifications
- Main features:Dimension 51.5 x 6.4 x 51.5 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- Housing material ABS, black
- Storage temperature: -40...85 °C
- User data, read/write: 2000 bytes
- Product group: HF (13.56 MHz)
- Protection class: IP68
- Memory type: FRAM
- UID serial number, read-only: 8 bytes
- Ambient temperature -20...85 °C
- Supported media types: DIN ISO 15693
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- Reading time: User ID for 8 bytes: 0.02 s|for 16 bytes: 0.03 s.
- Read cycles: Unlimited
- Programming time: For 16 bytes: 0.060s
- Programming cycles: ≥ 10,000,000,000
- Memory organization: 250 × 8 bytes
- User data, read/write: 2000 bytes
- Memory type: FRAM
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10 at 55 °C.
- UID serial number, read-only: 8 bytes
- Supported media types: DIN ISO 15693
- Product type
RFID-Tag
- Type
BIS M-135-02/L
IP68
- Content
1 pc(s)
- Length
51.5 mm
- Width
51.5 mm
- Height
6.4 mm
- Enclosure material
Acrylonitrile butadiene styrene
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418875 BALLUFF BIS00Y6 RFID-Tag BIS M-135-02/L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418875 BALLUFF BIS00Y6 RFID-Tag BIS M-135-02/L 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard either in accordance with DIN ISO 15693 and/or DIN ISO 14443. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Antenna technology, installation, range you can implement almost any technical task with application optimized. BIS M is the robust system with absolute data security. Product group=HF (13.56 MHz), dimension=51.5 x 6.4 x 51.5 mm, UID serial number, read only=8 bytes, user data, read/write=2000 bytes, Storage type=FRAM, supported data carrier types=DIN ISO 15693, antenna shape=round, installation=metal-free (free zone), storage temperature=-40...85 °C, ambient temperature=-20...85 °C, Housing material=ABS, black, protection class=IP68, approval/conformity=CEWEEE
