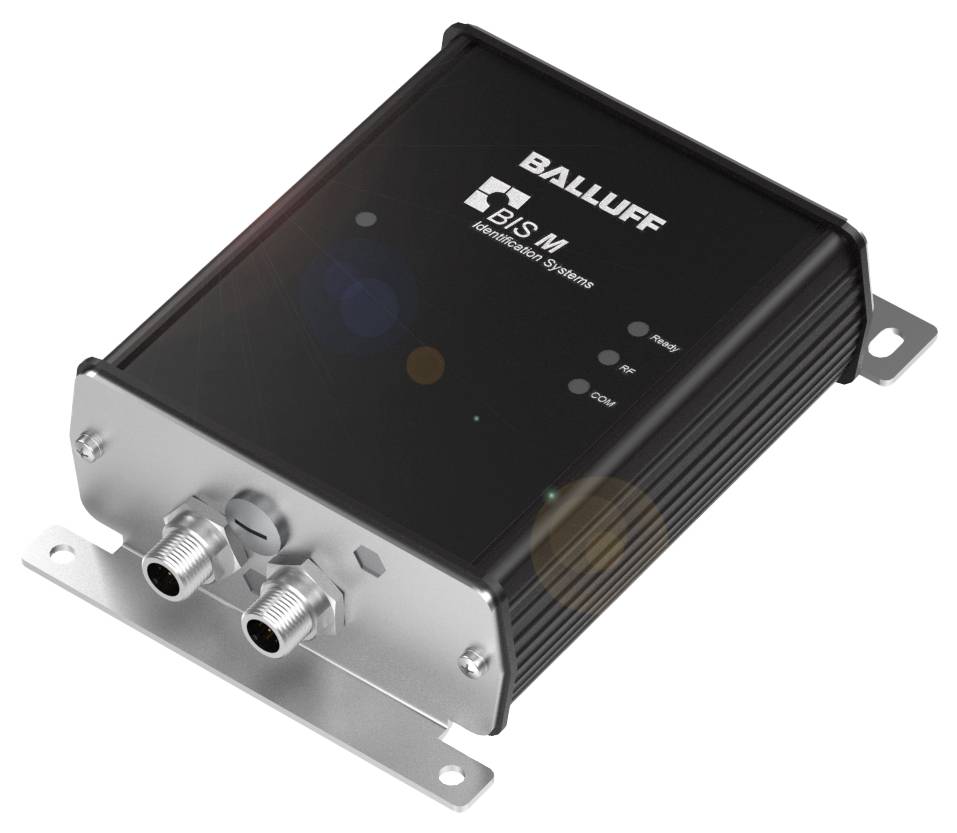

BALLUFF BIS00ZE Signal processing module BIS00ZE 1 pc(s)
Product type
Signal processing module
Type
BIS00ZE
Operating voltage
24
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS00ZE RF Range Evaluation Units (13.56 MHz)
- Operating voltage Ub 19.2...28.8 VDC
- Interface: DeviceNet
- electrically isolated
- Product group: HF (13.56 MHz)
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Number of connectable S/L heads / antennas: 1
Technical specifications
- Main features:Connection: M12x1 connector, 5-pin
- M12x1 plug, 8-pin
- Number of connectable S/L heads / antennas: 1
- Operating voltage Ub 19.2...28.8 VDC
- Aluminium casing material
- Product group: HF (13.56 MHz)
- Interface: DeviceNet
- electrically isolated
- Protection class IP65, with connector
- Ambient temperature -20...50 °C
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Additional features:
- Functional principle: Evaluation unit
- Dimensions 112 x 48 x 164 mm
- Operating voltage Ub 19.2...28.8 VDC
- Aluminium casing material
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP65, with connector
- Ambient temperature -20...50 °C
- Pollution level: 2
- Connection slots: RCA-socket
- Application weight 560.00 g
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...70 °C
- Interface: DeviceNet|galvanically isolated
- Remaining ripple max. 10%
- Current consumption max. 500 mA at 24 V DC
- Connection (COM 1): X1 (DeviceNet): M12x1 connector, 5-|pin
- Operating location: Indoors
- Maximum altitude: 2000 m.
- Relative humidity: 0…90%, non-condensing
- Connection (COM 2): X2 (RS232/|power supply): M12x1-|plug, 8-pin
- EN 55022: Gr. 1, Cl. A
- (BB) Ready for operation: Green LED
- RF active: Yellow LED
- DeviceNet: LED green/LED red
- Product type
Signal processing module
- Type
BIS00ZE
- Operating voltage
24
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
24 mA
- Connector
M12 plug (5-pin)
M12 plug (8-pin)
IP65
- Content
1 pc(s)
- Length
164.00 mm
- Width
112.00 mm
- Height
48.00 mm
- Enclosure material
Aluminium
- Weight
840 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418692 BALLUFF BIS00ZE Signal processing module BIS00ZE 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418692 BALLUFF BIS00ZE Signal processing module BIS00ZE 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = HF (13.56 MHz), interface = DeviceNet galvanically isolated, supported RFID technologies = HF 13.56 MHz (TO M), number of connectable S/L heads / antennas = 1, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, ambient temperature = -20...50 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, WEEE, connection = M12x1 plug, 5-pin M12x1 plug, 8-pin
