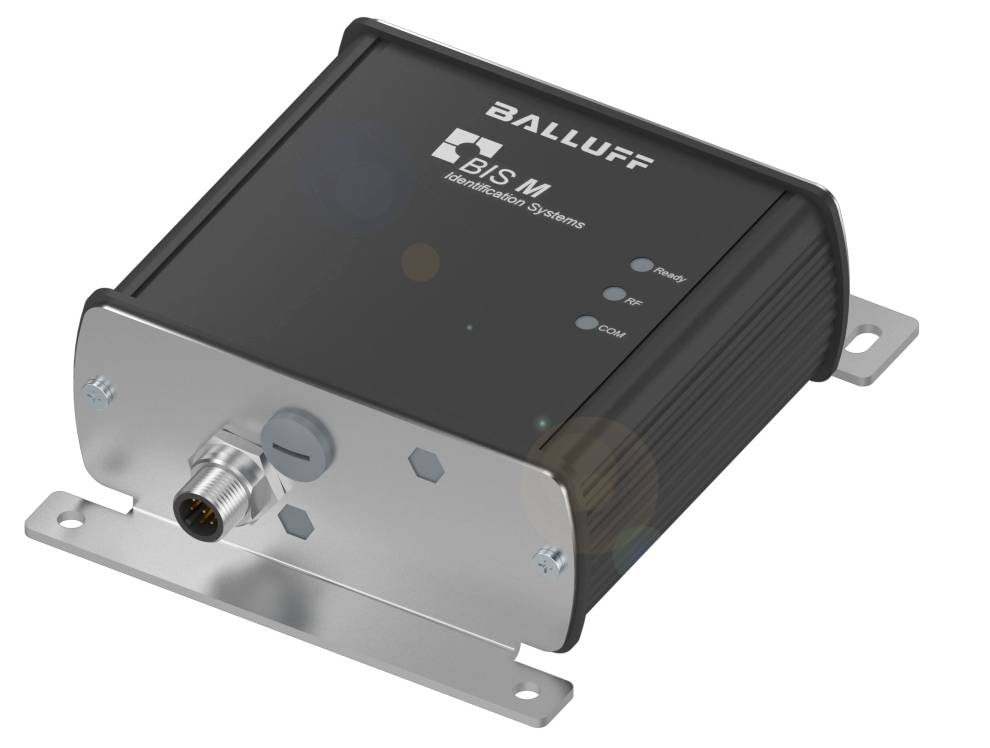

Name: BALLUFF BIS00ZJ Signal processing module BIS00ZJ 1 pc(s)
Brand: BALLUFF
SKU: 3418685

Highlights & Details

Balluff BIS00ZJ RF Range Evaluation Units (13.56 MHz)

Operating voltage Ub 19.2...28.8 VDC
RS232 interface
Product group: HF (13.56 MHz)
Supported RFID technologies: HF 13.56 MHz (TO M)
Number of connectable S/L heads / antennas: 1

Technical specifications

Main features:Connection: M12x1 connector, 8-pin
Number of connectable S/L heads / antennas: 1
Operating voltage Ub 19.2...28.8 VDC
Aluminium casing material
Product group: HF (13.56 MHz)
RS232 interface
Protection class IP65, with connector
Ambient temperature -20...50 °C
Supported RFID technologies: HF 13.56 MHz (TO M)
Additional features:
Functional principle: Evaluation unit
Dimensions 112 x 48 x 137 mm
Operating voltage Ub 19.2...28.8 VDC
Aluminium casing material
EN 60068-2-27, Shock: Yes
EN 60068-2-6, Vibration: Yes
Protection class IP65, with connector
Ambient temperature -20...50 °C
Pollution level: 2
Connection slots: RCA-socket
Application weight 550.00 g
Constant shock load: Yes
EN 60068-2-32, Free Case: Yes
Storage temperature: -20...70 °C
RS232 interface
Remaining ripple max. 10%
Current consumption max. 500 mA at 24 V DC
Connection (COM 1): X1 (RS232/|power supply): M12x1-|plug, 8-pin
Operating location: Indoors
Maximum altitude: 2000 m.
Relative humidity: 0…90%, non-condensing
EN 55022: Gr. 1, Cl. A
(BB) Ready for operation: Green LED
RF active: Yellow LED

Product type: Signal processing module

Type: BIS00ZJ

Operating voltage: 24

Min. operating voltage: 19.2 V

Max. operating voltage: 28.8 V

Operating voltage: 19.2 - 28.8 V

Operating current: 24 mA

Connector: M12 plug (8-pin)

: IP65

Content: 1 pc(s)

Length: 137.00 mm

Width: 112.00 mm

Height: 48.00 mm

Enclosure material: Aluminium

Weight: 840 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418685 BALLUFF BIS00ZJ Signal processing module BIS00ZJ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418685 BALLUFF BIS00ZJ Signal processing module BIS00ZJ 1 pc(s)

Description

With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = HF (13.56 MHz), interface = RS232, supported RFID technologies = HF 13.56 MHz (TO M), number of connectable S/L heads / antennas = 1, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, ambient temperature = -20...50 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, cULus, WEEE, connector = M12x1 connector, 8-pin

This text is machine translated.

Description

With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = HF (13.56 MHz), interface = RS232, supported RFID technologies = HF 13.56 MHz (TO M), number of connectable S/L heads / antennas = 1, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, ambient temperature = -20...50 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, cULus, WEEE, connector = M12x1 connector, 8-pin

This text is machine translated.
