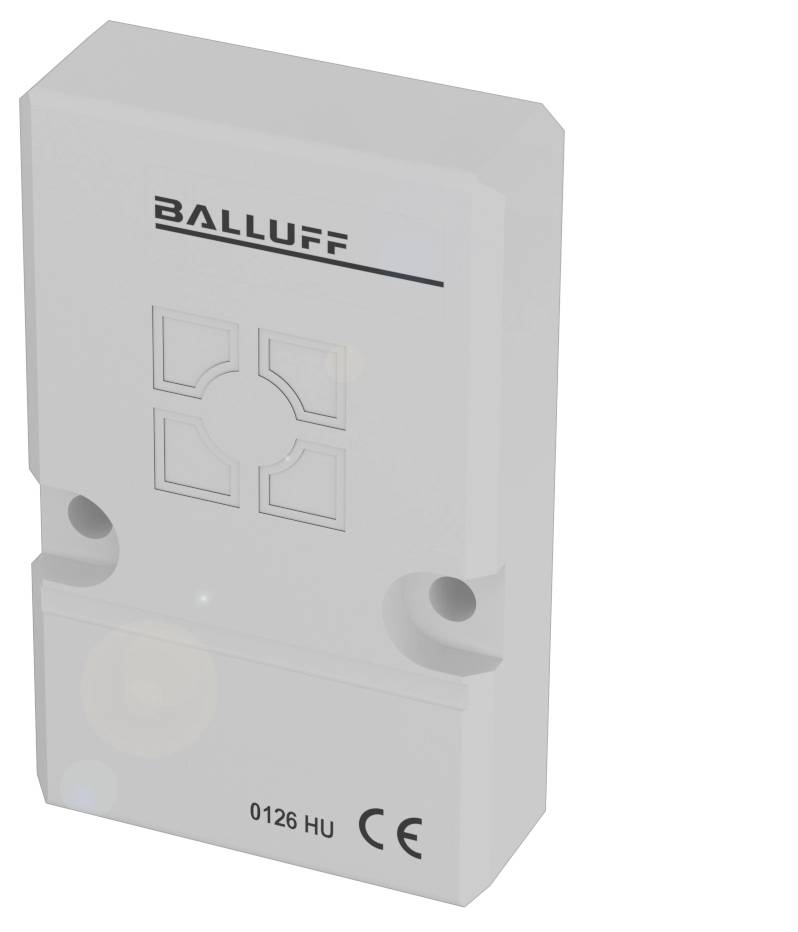

Image similar
BALLUFF BIS011E RFID-Tag BIS M-108-13/A 1 pc(s)
Product type
RFID-Tag
Type
BIS M-108-13/A
IP rating
IP67
Content
1 pc(s)
Length
52 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS011E Square tags for the RF range (13.56 MHz)
- Dimensions 32 x 11 x 52 mm
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- UID serial number, read-only: 8 bytes
- Memory type: FRAM
Technical specifications
- Main features:Dimension 32 x 11 x 52 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- PBT, GF casing material
- Storage temperature: -25...85 °C
- User data, read/write: 32768 bytes
- Product group: HF (13.56 MHz)
- Protection class IP67
- Memory type: FRAM
- UID serial number, read-only: 8 bytes
- Ambient temperature: -25 to 70 °C
- Supported media types: DIN ISO 15693 (High Memory)
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- Reading time: User ID for 8 bytes: 0.02 s|for 16 bytes: 0,003 s.
- Read cycles: Unlimited
- Programming time: For 16 bytes: 0.006s
- Programming cycles: ≥ 10,000,000,000
- User data, read/write: 32768 bytes
- Memory type: FRAM
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10 at 55 °C.
- UID serial number, read-only: 8 bytes
- Supported media types: DIN ISO 15693 (High Memory)
- Product type
RFID-Tag
- Type
BIS M-108-13/A
IP67
- Content
1 pc(s)
- Length
52 mm
- Width
32 mm
- Height
11 mm
- Enclosure material
PBT
Fibreglass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418858 BALLUFF BIS011E RFID-Tag BIS M-108-13/A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418858 BALLUFF BIS011E RFID-Tag BIS M-108-13/A 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard either in accordance with DIN ISO 15693 and/or DIN ISO 14443. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Antenna technology, installation, range you can implement almost any technical task with application optimized. BIS M is the robust system with absolute data security. Product group=HF (13.56 MHz), dimension=32 x 11 x 52 mm, UID serial number, read only=8 bytes, user data, read/write=32768 bytes, Storage type=FRAM, supported data carrier types=DIN ISO 15693 (high memory), antenna shape=round, installation=metal-free (free zone) on metal, storage temperature=-25...85 °C, ambient temperature=-25...70 °C, casing material=PBT, GF, Protection class=IP67, Approval/conformity=CEWEEE
