Image similar

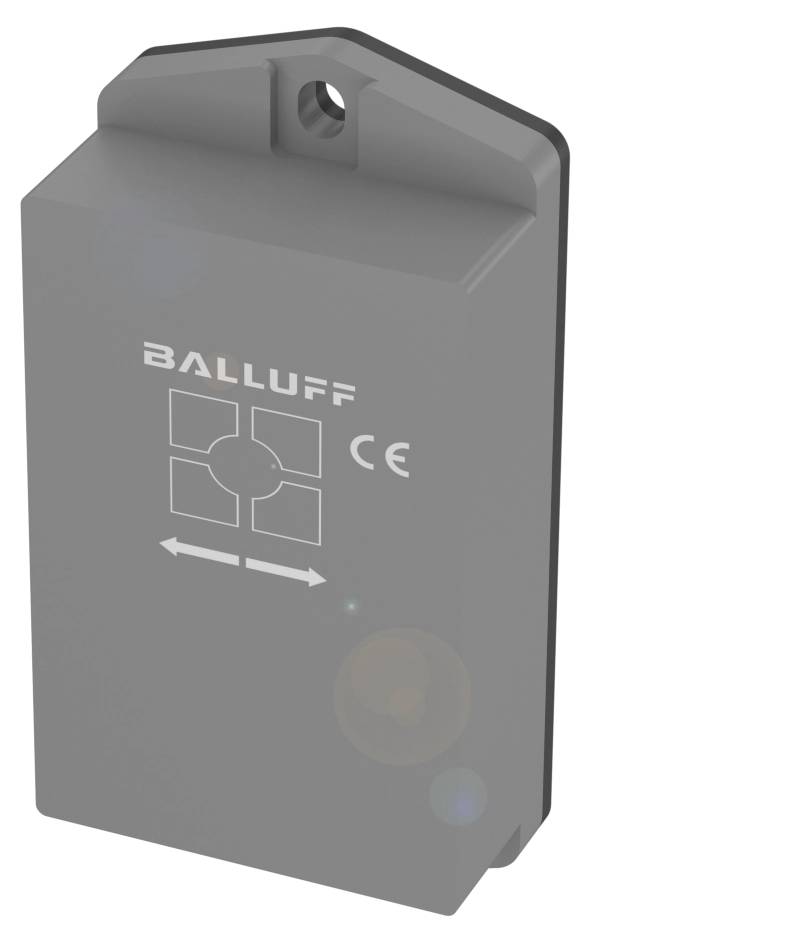

BALLUFF BIS011U RFID-Tag BIS M-153-14/A 1 pc(s)
Product type
RFID-Tag
Type
BIS M-153-14/A
Content
1 pc(s)
Length
80 mm
Width
40 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS011U Square tags for the RF range (13.56 MHz)
- Dimensions 40 x 22 x 80 mm
- Product group: HF (13.56 MHz)
- Antenna shape: Rod
- UID serial number, read-only: 8 bytes
- Memory type: FRAM
Technical specifications
- Main features:Dimension 40 x 22 x 80 mm
- Antenna shape: Rod
- Installation: Metal-free (free zone)
- On metal
- POM casing material
- Storage temperature: -25...85 °C
- User data, read/write: 65536 bytes
- Product group: HF (13.56 MHz)
- Memory type: FRAM
- UID serial number, read-only: 8 bytes
- Ambient temperature: -25 to 85 °C
- Supported media types: DIN ISO 15693 (High Memory)
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Rod
- Reading time: User ID for 8 bytes: 0.02 s|for 16 bytes: 0,003 s.
- Read cycles: Unlimited
- Programming time: For 16 bytes: 0.006s
- Programming cycles: ≥ 10,000,000,000
- User data, read/write: 65536 bytes
- Memory type: FRAM
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10 at 55 °C.
- UID serial number, read-only: 8 bytes
- Supported media types: DIN ISO 15693 (High Memory)
- Product type
RFID-Tag
- Type
BIS M-153-14/A
- Content
1 pc(s)
- Length
80 mm
- Width
40 mm
- Height
22 mm
- Enclosure material
POM
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418906 BALLUFF BIS011U RFID-Tag BIS M-153-14/A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418906 BALLUFF BIS011U RFID-Tag BIS M-153-14/A 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard either in accordance with DIN ISO 15693 and/or DIN ISO 14443. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Antenna technology, installation, range you can implement almost any technical task with application optimized. BIS M is the robust system with absolute data security. Product group=HF (13.56 MHz), dimension=40 x 22 x 80 mm, UID serial number, read only=8 bytes, user data, read/write=65536 bytes, Storage type=FRAM, supported data carrier types=DIN ISO 15693 (high memory), antenna shape=rod, installation=metal free (free zone) on metal, storage temperature=-25...85 °C, ambient temperature=-25...85 °C, housing material=POM, approval/conformity=CEWEEE
