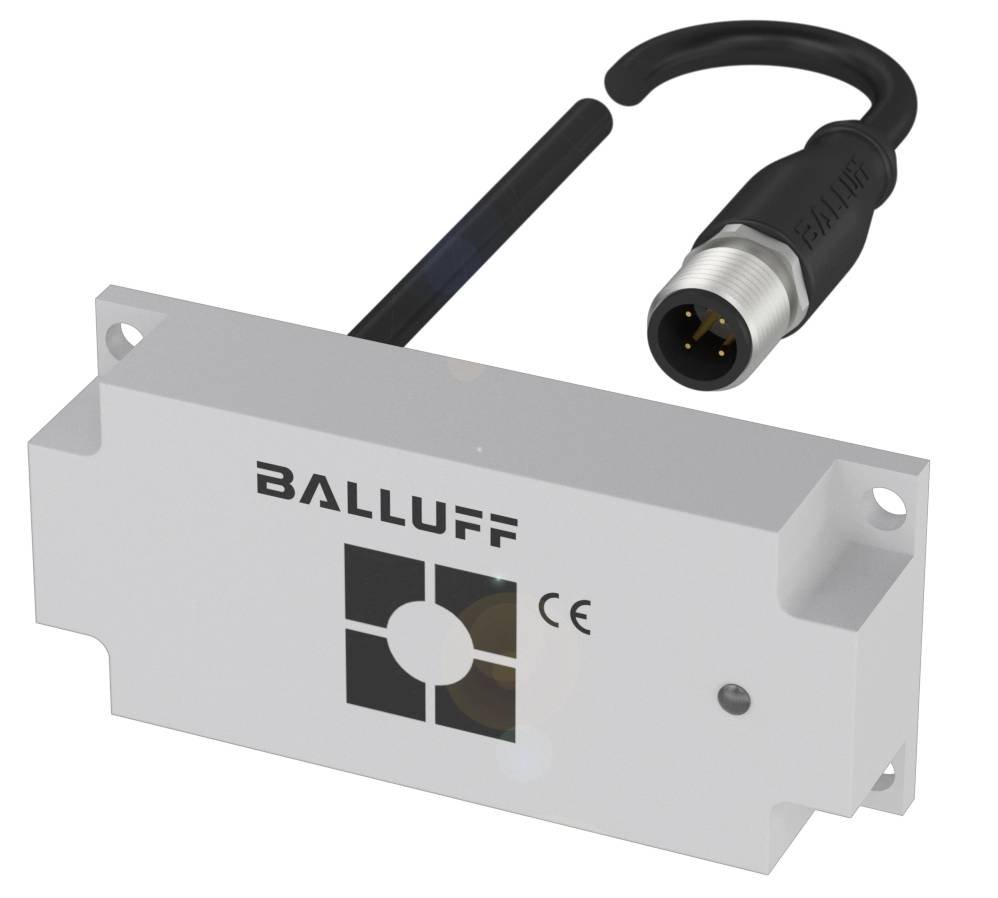

BALLUFF BIS012N Reader BIS012N 1 pc(s)
Product type
Reader
Type
BIS012N
Operating voltage
24
Min. operating voltage
18 V
Max. operating voltage
30 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS012N IO-Link Reader for the HF-range (13.56 MHz)
- Dimensions 35 x 17 x 80 mm
- Installation: Metal-free (free zone)
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- Supported media types: DIN ISO 14443
- DIN ISO 15693
Technical specifications
- Main features:Dimension 35 x 17 x 80 mm
- Connection: Connector, M12x1 connector, 4-pin, 0.30 m
- Antenna shape: Round
- Operating voltage Ub: 18...30 VDC Supports only LPS/Class 2
- Installation: Metal-free (free zone)
- ABS casing material
- Product group: HF (13.56 MHz)
- Process data IN: 10 bytes
- Process data OUT: 10 bytes
- Interface: IO-Link 1.1
- Protection class IP67
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature 0...70 °C
- Supported media types: DIN ISO 14443
- DIN ISO 15693
- Additional features:
- Functional principle: Evaluation unit
- Dimensions 35 x 17 x 80 mm
- Function display: LED yellow|TP (day present)|LED green|Power (ON)
- Operating voltage Ub: 18...30 VDC Supports only LPS/|Class 2
- Connection: M12x1 4-pin connector, A-coded
- Housing material Mechanical characteristics: ABS
- Installation: Metal-free (free zone)
- Connection type: Connector 0.30 m.
- Cable length 0.3 m
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Pollution level: 2
- Application weight 73.00 g
- Antenna shape: Round
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Interface: IO-Link 1.1
- Process data IN: 10 bytes
- COM2 (38.4 kBaud) transfer rate
- Remaining ripple max. 1.3 Vss
- Current consumption max. 150 mA at 24 V DC
- Operating location: Indoors
- Maximum altitude: 2000 m.
- Relative humidity: 0…90%, non-condensing
- EN 55022: Gr. 1, Cl. A
- Supported media types: DIN ISO 14443
- Product type
Reader
- Type
BIS012N
- Operating voltage
24
- Min. operating voltage
18 V
- Max. operating voltage
30 V
- Operating voltage
18 - 30 V
- Operating current
24 mA
- Connector
M12 plug (4-pin, A coded)
- Cable length
0.30 m
IP67
- Content
1 pc(s)
- Length
80.00 mm
- Width
35.00 mm
- Height
17.00 mm
- Enclosure material
Acrylonitrile butadiene styrene
- Weight
1640.0 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418563 BALLUFF BIS012N Reader BIS012N 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418563 BALLUFF BIS012N Reader BIS012N 1 pc(s)
Description
RF read/write heads with integrated evaluation unit are the mediators between the data carrier and the PC or the controller. The advantage: As the antenna, electronics and interface are located in one housing, there is no need for an additional evaluation unit. In addition, the easy integration saves a lot of installation effort. Variants with remote electronics are also suitable for narrow installation conditions and provide scope for installation. Product group = HF (13.56 MHz), dimension = 35 x 17 x 80 mm, installation = metal-free (free zone), antenna shape = round, supported media types = DIN ISO 14443, DIN ISO 15693, connection = connector, M12x1 connector, 4-pin, 0.30 m, housing material = ABS, interface = IO-Link 1.1, transfer rate = COM2 (38.4 kBaud), process data IN = 10 bytes, process data OUT = 10 bytes, operating voltage Ub = 0...70 VDC Only LPS/Class 2, ambient temperature = 18...30 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
