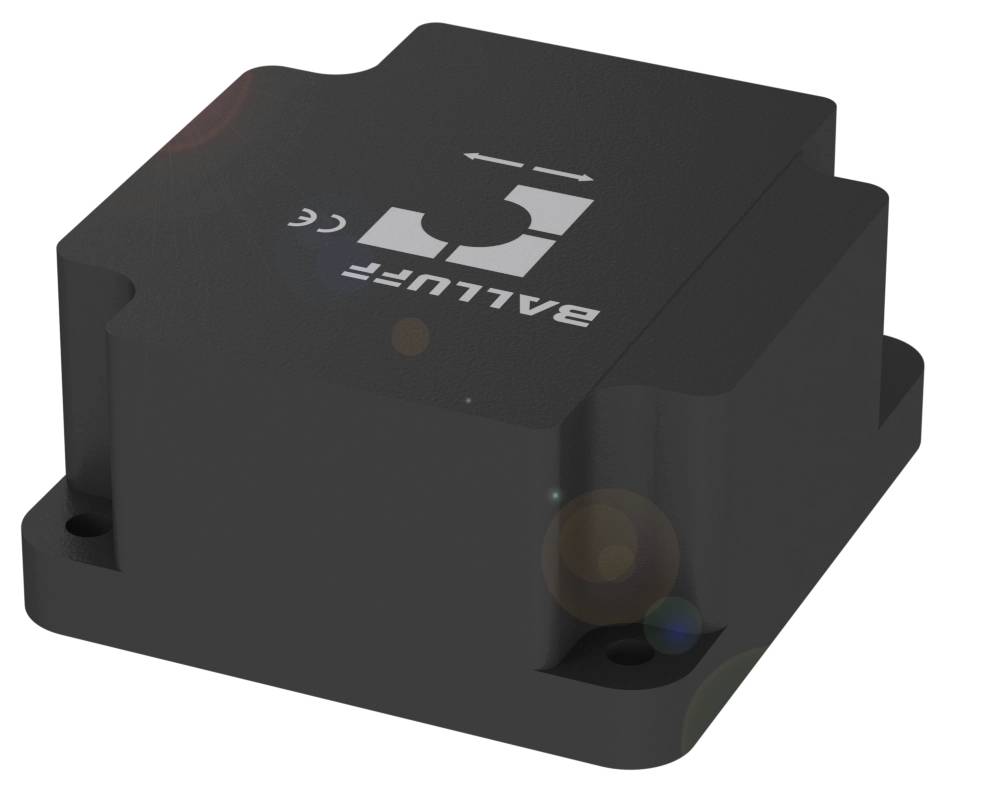

Image similar
BALLUFF BIS012Z Reader BIS VM-351-401-S4 1 pc(s)
Product type
Reader
Type
BIS VM-351-401-S4
Connector
Plug (4-pin)
IP rating
IP67
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BIS012Z TO V High-performance Reader for the HF-range (13.56 MHz)
- Dimensions 80 x 40 x 84.5 mm
- Installation: On metal
- Product group: HF (13.56 MHz)
- Antenna shape: Rod
- Supported media types: DIN ISO 15693
- DIN ISO 15693 (high memory)
Technical specifications
- Main features:Dimension 80 x 40 x 84.5 mm
- Connection: Plug, 4-pin
- Antenna shape: Rod
- Installation: On metal
- PBT casing material
- Product group: HF (13.56 MHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Supported media types: DIN ISO 15693
- DIN ISO 15693 (high memory)
- Additional features:
- Functional principle: Write/read head
- Material DIN ISO 15693 (High Memory)
- Dimensions 80 x 40 x 84.5 mm
- Function display: Operating, LED flashing yellow|CP (code present), LED yellow|Power, LED green
- Connection: Plug, 4-pin
- Installation: On metal
- PBT casing material
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Pollution level: 2
- Application weight 360.00 g
- Antenna shape: Rod
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Operating location: Indoors
- Maximum altitude: 2000 m.
- Relative humidity: 0…90%, non-condensing
- Supported media types: DIN ISO 15693
- Product type
Reader
- Type
BIS VM-351-401-S4
- Connector
Plug (4-pin)
IP67
- Content
1 pc(s)
- Length
80 mm
- Width
40 mm
- Height
84.5 mm
- Enclosure material
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418749 BALLUFF BIS012Z Reader BIS VM-351-401-S4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418749 BALLUFF BIS012Z Reader BIS VM-351-401-S4 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard in accordance with DIN ISO 15693 and 14443. Read/write heads are the link between data carrier and evaluation unit. UP TO M read/write heads offer absolute data security. These are available in different designs and dimensions - e.g. as round/rod antenna, so that you can solve various requirements. Product group=HF (13.56 MHz), dimension=80 x 40 x 84.5 mm, installation=metal free (free zone), antenna form=rod, supported data carrier types=DIN ISO 15693DIN ISO 15693 (high memory), connection=plug, 4-pole, housing material=PBT, ambient temperature=0...70 °C, Protection class=IP67, Approval/conformity=CecULusWEEE
