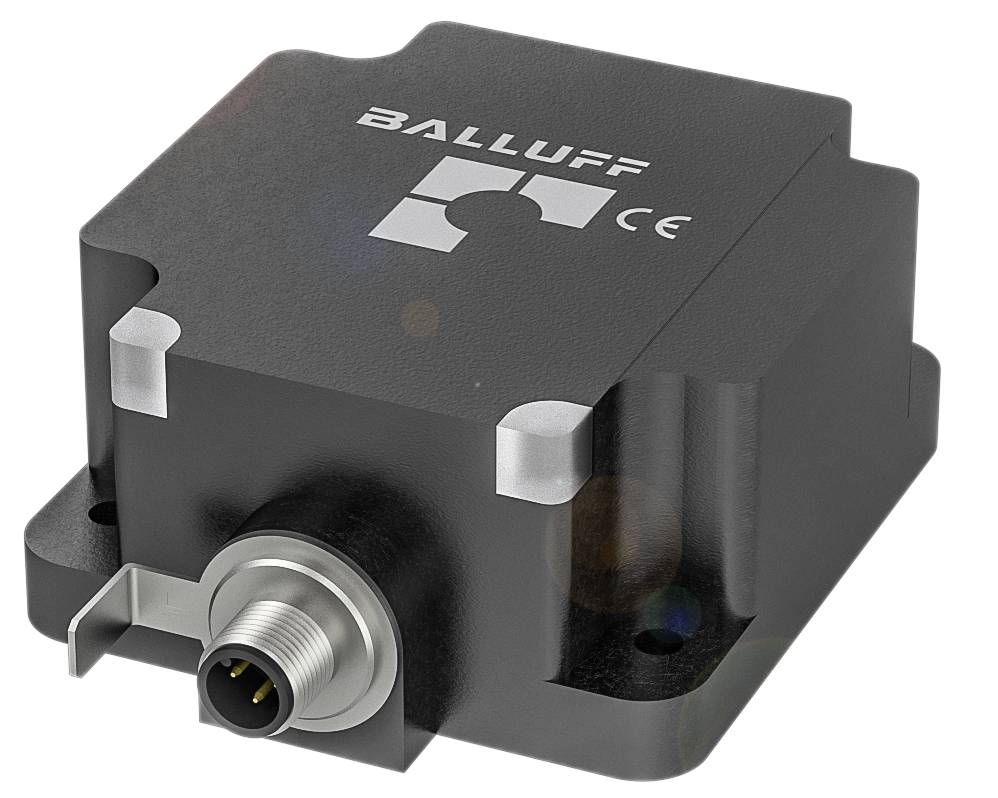

Name: BALLUFF BIS0130 Reader BIS VM-341-401-S4 1 pc(s)
Brand: BALLUFF
SKU: 3418700

Highlights & Details

Balluff BIS0130 TO V High-performance reader for the HF-range (13.56 MHz)

Dimensions 80 x 40 x 84.5 mm
Installation: On metal
Product group: HF (13.56 MHz)
Antenna shape: Round
Supported media types: DIN ISO 15693
DIN ISO 15693 (high memory)

Technical specifications

Main features:Dimension 80 x 40 x 84.5 mm
Connection: Plug, 4-pin
Antenna shape: Round
Installation: On metal
PBT casing material
Product group: HF (13.56 MHz)
Protection class IP67
Ambient temperature 0...70 °C
Supported media types: DIN ISO 15693
DIN ISO 15693 (high memory)
Additional features:
Functional principle: Write/read head
Dimensions 80 x 40 x 84.5 mm
Function display: Operating, LED flashing yellow|CP (code present), LED yellow|Power, LED green
Connection: Plug, 4-pin
Installation: On metal
PBT casing material
EN 60068-2-27, Shock: Yes
EN 60068-2-6, Vibration: Yes
Protection class IP67
Ambient temperature 0...70 °C
Pollution level: 2
Application weight 360.00 g
Antenna shape: Round
Constant shock load: Yes
EN 60068-2-32, Free Case: Yes
Storage temperature: -20...85 °C
Operating location: Indoors
Maximum altitude: 2000 m.
Relative humidity: 0…90%, non-condensing
Supported media types: DIN ISO 15693|DIN ISO 15693 (High Memory)
MTTF (40 °C) functions 504.8 a

Product type: Reader

Type: BIS VM-341-401-S4

Connector: Plug (4-pin)

: IP67

Content: 1 pc(s)

Length: 80 mm

Width: 40 mm

Height: 84.5 mm

Enclosure material: PBT

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418700 BALLUFF BIS0130 Reader BIS VM-341-401-S4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418700 BALLUFF BIS0130 Reader BIS VM-341-401-S4 1 pc(s)

Description

Application-specific RF read/write heads and antennas from Balluff in industrial design can be easily integrated into your system. They support the worldwide standardized ISO 15693 standard and partly ISO 14443A. Thanks to a robust housing conforming to protection class IP67 they are also suitable for use in harsh environments. Their range depends on the combination of read/write head and data carrier used.HF read/write heads with IO-Link interface are also available. For applications in which production progress, batch number or quality data must be cost-effectively logged with a small amount of data. Product group = HF (13.56 MHz), Dimensions = 80 x 40 x 84.5 mm, installation = metal-free (free zone), antenna form = round, supported data carrier types = DIN ISO 15693, DIN ISO 15693 (high memory), connection = plug, 4-pole, housing material = PBT, Ambient temperature = 0...70 °C, protection = IP67, approval/conformity = CE, UKCA, cULus, WEEE

This text is machine translated.

Description

Application-specific RF read/write heads and antennas from Balluff in industrial design can be easily integrated into your system. They support the worldwide standardized ISO 15693 standard and partly ISO 14443A. Thanks to a robust housing conforming to protection class IP67 they are also suitable for use in harsh environments. Their range depends on the combination of read/write head and data carrier used.HF read/write heads with IO-Link interface are also available. For applications in which production progress, batch number or quality data must be cost-effectively logged with a small amount of data. Product group = HF (13.56 MHz), Dimensions = 80 x 40 x 84.5 mm, installation = metal-free (free zone), antenna form = round, supported data carrier types = DIN ISO 15693, DIN ISO 15693 (high memory), connection = plug, 4-pole, housing material = PBT, Ambient temperature = 0...70 °C, protection = IP67, approval/conformity = CE, UKCA, cULus, WEEE

This text is machine translated.
